RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

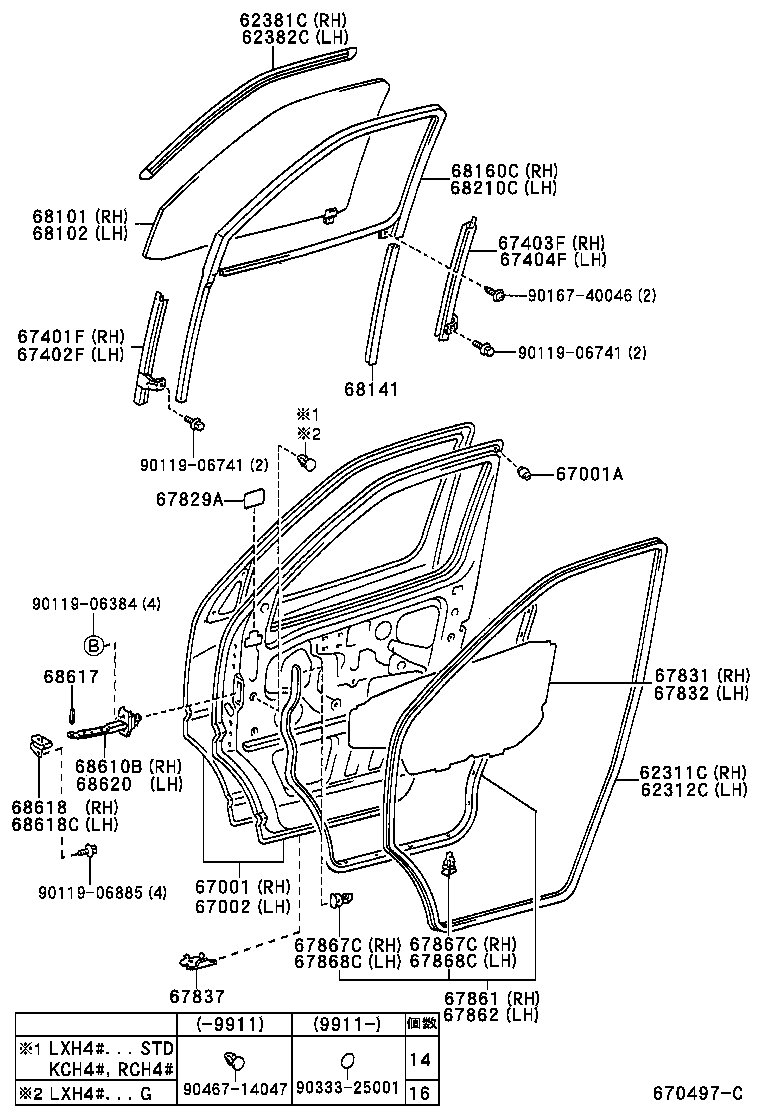

ILLUST NO. 2 OF 3(9704- )

Click highlighted areas on diagram

diagram 62311C 62312C 62381C 62382C 67001 67001A 67002 67401F 67402F 67403F 67404F 67829A 67831 67832 67837 67861 67862 67867C 67867C 67868C 67868C 68101 68102 68141 68160C 68210C 68610B 68617 68618 68618C 68620 9011906384 9011906741 9011906741 9011906885 9016740046 9033325001 9046714047
Part # Description Qty Price
62311C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-26020

KCH4#,LXH4#,RCH4#

 1
62312C - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-26020

KCH4#,LXH4#,RCH4#

 1
62381C - WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
62381-26020

KCH4#,RCH41,47

 1
62382C - WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
62382-26020

KCH4#,RCH41,47

 1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-26240

KCH4#,RCH41,47..E,G,STD,V

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09064

KCH4#,LXH4#,RCH4#

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-26240

KCH4#,RCH41,47..E,G,STD,V

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-26010

KCH4#,LXH4#,RCH4#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-26010

KCH4#,LXH4#,RCH4#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-26040

KCH4#,LXH4#,RCH4#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-26040

KCH4#,LXH4#,RCH4#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-26080

KCH4#,LXH4#,RCH4#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-26080

KCH4#,LXH4#,RCH4#

 1
67837 - PROTECTOR, FRONT DOOR SERVICE HOLE COVER
67837-26020

KCH4#,LXH4#,RCH4#

 6
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-26020

KCH4#,RCH41,47

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-26020

KCH4#,RCH41,47

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-26010

KCH4#,RCH41,47

ｲｴﾛｰ

 24
67868-26010

KCH4#,RCH41,47

ｸﾞﾘｰﾝ

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-26010

KCH4#,RCH41,47

ｲｴﾛｰ

 24
67868-26010

KCH4#,RCH41,47

ｸﾞﾘｰﾝ

 1
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-26010

KCH4#,RCH41,47

ｲｴﾛｰ

 1
67868-26010

KCH4#,RCH41,47

ｸﾞﾘｰﾝ

 24
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-26010

KCH4#,RCH41,47

ｲｴﾛｰ

 1
67868-26010

KCH4#,RCH41,47

ｸﾞﾘｰﾝ

 24
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-26110

KCH4#,RCH41,47..G

*UVCTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
68101-26170

KCH4#,RCH41..G

*UVCTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-26170

KCH4#,RCH41..G

*UVCTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
68102-26110

KCH4#,RCH41,47..G

*UVCTT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
68141 - RUN, FRONT DOOR GLASS
68141-26020

KCH4#,LXH4#,RCH4#

 2
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-26020

KCH4#,LXH4#,RCH4#

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-26020

KCH4#,LXH4#,RCH4#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-26020

KCH4#,LXH4#,RCH4#

 1
68617 - PIN, FRONT DOOR CHECK
68617-20011

KCH4#,LXH4#,RCH4#

 2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-26010

KCH4#,LXH4#,RCH4#

 1
68618C - BRACKET, FRONT DOOR CHECK ARM, LH
68618-26010

KCH4#,LXH4#,RCH4#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-26020

KCH4#,LXH4#,RCH4#

 1
Common parts
90119-06384
90119-06741
90119-06885
90167-40046
90333-25001
90467-14047

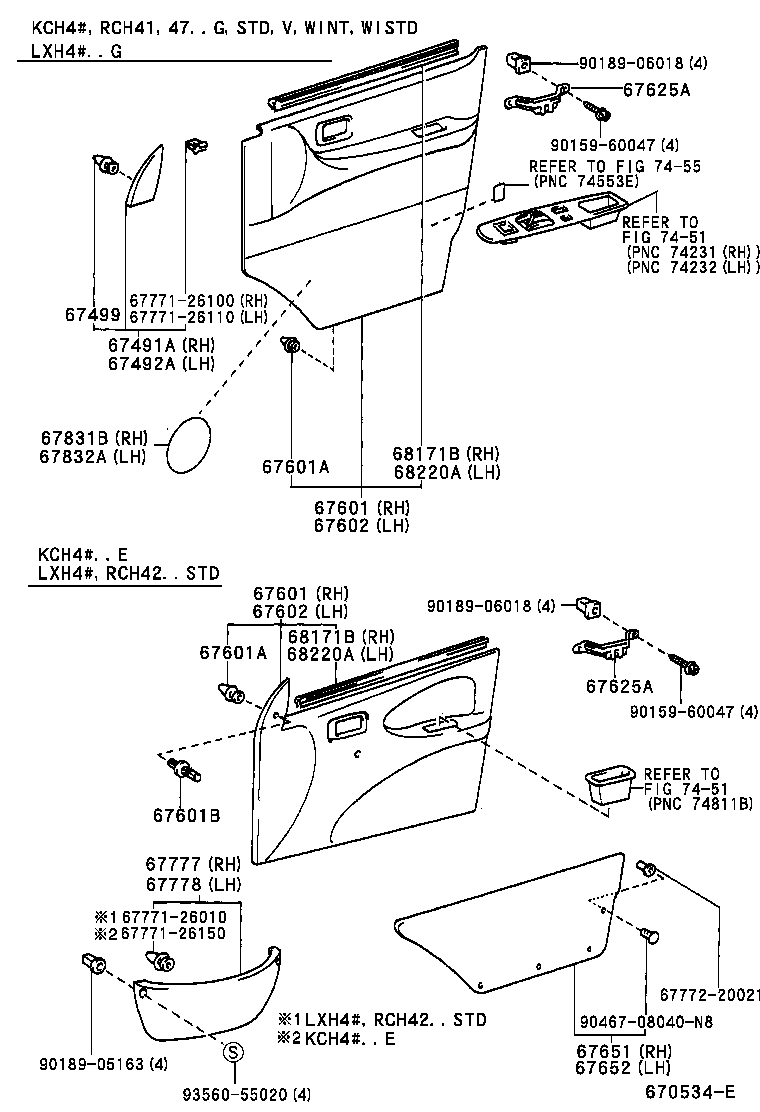

ILLUST NO. 1 OF 2(9704- )

Click highlighted areas on diagram

diagram 67491A 67492A 67499 67601 67601 67601A 67601A 67601B 67602 67602 67625A 67625A 67651 67652 6777126010 6777126100 6777126110 6777126150 6777220021 67777 67778 67831B 67832A 68171B 68171B 68220A 68220A 7451 7451 7455 9015960047 9015960047 9018905163 9018906018 9018906018 9046708040N8 9356055020
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-26040

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ)

 1
67491-26040

KCH4#,RCH41..G,STD,WINT

ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ)

 1
67491-26030

LXH4#..G;KCH4#,RCH41,47..G,STD,WINT

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-26040

KCH4#,RCH41..G,STD,WINT

ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ)

 2
67492-26030

LXH4#..G;KCH4#,RCH41,47..G,STD,WINT

 1
67492-26040

KCH4#,RCH41,47..G,STD,WINT

ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ)

 2
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-30070

LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-26450G0

KCH4#,RCH41,47..G

SAGE,TRIM6#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-26450G0

KCH4#,RCH41,47..G

SAGE,TRIM6#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-26010

LXH4#..G;KCH4#,RCH41,47..G,STD,WINT

 26
90467-09206

LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 26
67771-26130

LXH4#..G;KCH4#,RCH41,47..G,STD,WINT

 26
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-26010

LXH4#..G;KCH4#,RCH41,47..G,STD,WINT

 26
90467-09206

LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 26
67771-26130

LXH4#..G;KCH4#,RCH41,47..G,STD,WINT

 26
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-26450G0

KCH4#,RCH41,47..G

SAGE,TRIM6#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-26450G0

KCH4#,RCH41,47..G

SAGE,TRIM6#

 1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-26020

LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-26020

LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-26020

KCH4#,LXH4#,RCH4#

 1
68171-26040

KCH4#,LXH4#,RCH4#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-26020

KCH4#,LXH4#,RCH4#

 1
68171-26040

KCH4#,LXH4#,RCH4#

 1
68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68172-26020

KCH4#,LXH4#,RCH4#

 1
68172-26040

KCH4#,LXH4#,RCH4#

 1
68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68172-26020

KCH4#,LXH4#,RCH4#

 1
68172-26040

KCH4#,LXH4#,RCH4#

 1
Common parts
67771-26010
67771-26100
67771-26110
67771-26150
67772-20021
90159-60047
90189-05163
90189-06018
90467-08040N8
93560-55020
Linked diagrams
7451
7455
