RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

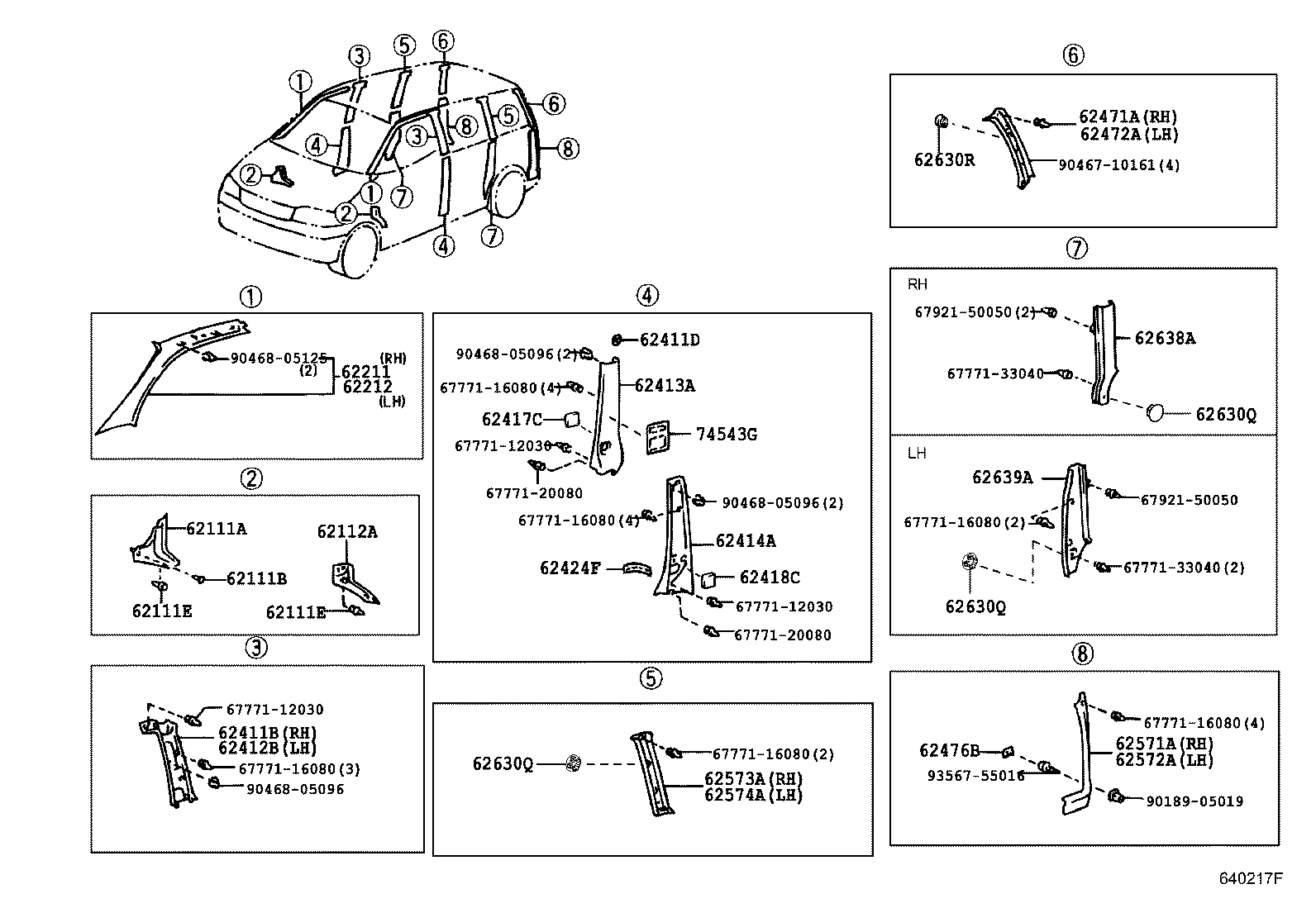

ILLUST NO. 1 OF 4(9704- )E ; (9704- )LXH4#..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62111-26010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 62111-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-05080B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 90467-05080G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 62111E - RETAINER, COWL SIDE TRIM | ||||
| 90467-10147 |
LXH4#..G;KCH4#,RCH41,47 |
5 | ||
| 62111E - RETAINER, COWL SIDE TRIM | ||||
| 90467-10147 |
LXH4#..G;KCH4#,RCH41,47 |
5 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 62112-26010B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-26060B1 |
KCH4#,RCH41,47..G GRAY,TRIM6# |
1 | ||
| 62211-26050B1 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-26050B1 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
1 | ||
| 62212-26060B1 |
KCH4#,RCH41,47..G GRAY,TRIM6# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-26050B2 |
KCH4#,RCH41,47..4D..G GRAY,TRIM6# |
1 | ||
| 62411D - PLUG, HOLE (FOR CENTER PILLAR GARNISH) | ||||
| 90467-07167G0 |
KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6# |
1 | ||
| 90467-07167B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-26090B2 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62412-26090B3 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26090G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-26130B3 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62471-26130B4 |
KCH4#,RCH41,47..4D..G LT.GRAY,TRIM6# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-26130B4 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
1 | ||
| 62472-26130B3 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62573A - GARNISH, QUARTER LOCK PILLAR, RH | ||||
| 62573-26080B3 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62573-26100B3 |
KCH4#,RCH41..G ｱﾘ(ﾃﾚﾋﾞ),GRAY,TRIM6# |
1 | ||
| 62573-26100B4 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾃﾚﾋﾞ),LT.GRAY,TRIM6# |
1 | ||
| 62573-26080B4 |
KCH4#,RCH41,47..4D..G LT.GRAY,TRIM6# |
1 | ||
| 62574A - GARNISH, QUARTER LOCK PILLAR, LH | ||||
| 62574-26080B3 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62574-26100B4 |
KCH4#,RCH41,47..G ｱﾘ(ﾃﾚﾋﾞ),LT.GRAY,TRIM6# |
1 | ||
| 62574-26100B3 |
KCH4#,RCH41..G ｱﾘ(ﾃﾚﾋﾞ),GRAY,TRIM6# |
1 | ||
| 62574-26080B4 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
1 | ||
| 74543G - LABEL, REAR NO.3 SEAT CAUTION | ||||
| 74543-26080B0 |
KCH4#,RCH41,47..E,STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12030 | ||||
| 67771-16080 | ||||
| 67771-20080 | ||||
| 67771-33040 | ||||
| 67921-50050 | ||||
| 90189-05019 | ||||
| 90467-10161 | ||||
| 90468-05096 | ||||
| 90468-05125 | ||||
| 93567-55016 | ||||

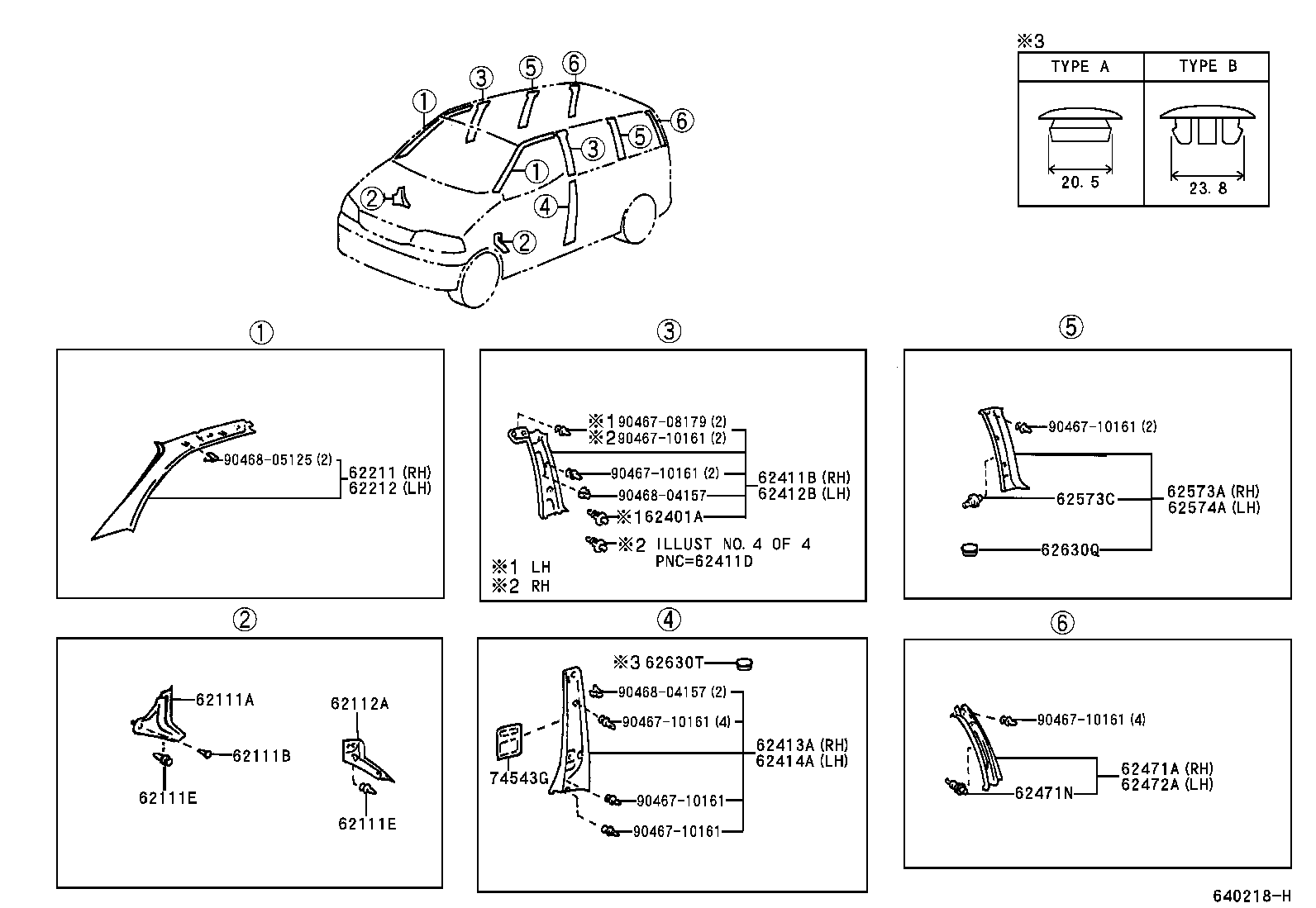

ILLUST NO. 1 OF 4(9704- )KCH4#,RCH41,47..G,STD,V,WINT,WISTD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62111-26010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 62111-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-05080B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 90467-05080G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 62111E - RETAINER, COWL SIDE TRIM | ||||
| 90467-10147 |
LXH4#..G;KCH4#,RCH41,47 |
5 | ||
| 62111E - RETAINER, COWL SIDE TRIM | ||||
| 90467-10147 |
LXH4#..G;KCH4#,RCH41,47 |
5 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 62112-26010B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-26060B1 |
KCH4#,RCH41,47..G GRAY,TRIM6# |
1 | ||
| 62211-26050B1 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-26050B1 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
1 | ||
| 62212-26060B1 |
KCH4#,RCH41,47..G GRAY,TRIM6# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90530-06009G0 |
KCH4#,RCH41..4D..G SAGE,TRIM6# |
1 | ||
| 90530-06009B2 |
KCH4#,RCH41,47..4D..G LT.BLUISH GRAY,TRIM6# |
1 | ||
| 90530-06009G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-26050B2 |
KCH4#,RCH41,47..4D..G GRAY,TRIM6# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-26090B2 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62412-26090B3 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26090G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-26130B3 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62471-26130B4 |
KCH4#,RCH41,47..4D..G LT.GRAY,TRIM6# |
1 | ||
| 62471N - FASTENER(FOR REAR PILLAR GARNISH) | ||||
| 90530-06009B2 |
KCH4#,RCH41,47..G LT.BLUISH GRAY,TRIM6# |
2 | ||
| 90530-06009G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
2 | ||
| 90530-06009G0 |
KCH4#,RCH41..4D..G SAGE,TRIM6# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-26130B4 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
1 | ||
| 62472-26130B3 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62573A - GARNISH, QUARTER LOCK PILLAR, RH | ||||
| 62573-26080B3 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62573-26100B3 |
KCH4#,RCH41..G ｱﾘ(ﾃﾚﾋﾞ),GRAY,TRIM6# |
1 | ||
| 62573-26100B4 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾃﾚﾋﾞ),LT.GRAY,TRIM6# |
1 | ||
| 62573-26080B4 |
KCH4#,RCH41,47..4D..G LT.GRAY,TRIM6# |
1 | ||
| 62573C - FASTENER(FOR CENTER PILLAR GARNISH) | ||||
| 90530-06009B2 |
KCH4#,RCH41,47..G LT.BLUISH GRAY,TRIM6# |
4 | ||
| 90530-06009G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
4 | ||
| 90530-06009G0 |
KCH4#,RCH41..4D..G SAGE,TRIM6# |
4 | ||
| 62574A - GARNISH, QUARTER LOCK PILLAR, LH | ||||
| 62574-26080B3 |
KCH4#,RCH41..G GRAY,TRIM6# |
1 | ||
| 62574-26100B4 |
KCH4#,RCH41,47..G ｱﾘ(ﾃﾚﾋﾞ),LT.GRAY,TRIM6# |
1 | ||
| 62574-26100B3 |
KCH4#,RCH41..G ｱﾘ(ﾃﾚﾋﾞ),GRAY,TRIM6# |
1 | ||
| 62574-26080B4 |
KCH4#,RCH41,47..G LT.GRAY,TRIM6# |
1 | ||
| 62630T - CAP | ||||
| 47256-26050B0 |
KCH4#,RCH41,47..4D..G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,XXXX,TRIM6# |
1 | ||
| 47256-26040G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
1 | ||
| 74543G - LABEL, REAR NO.3 SEAT CAUTION | ||||
| 74543-26080B0 |
KCH4#,RCH41,47..E,STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90467-08179 | ||||
| 90467-10161 | ||||
| 90468-04157 | ||||
| 90468-05125 | ||||

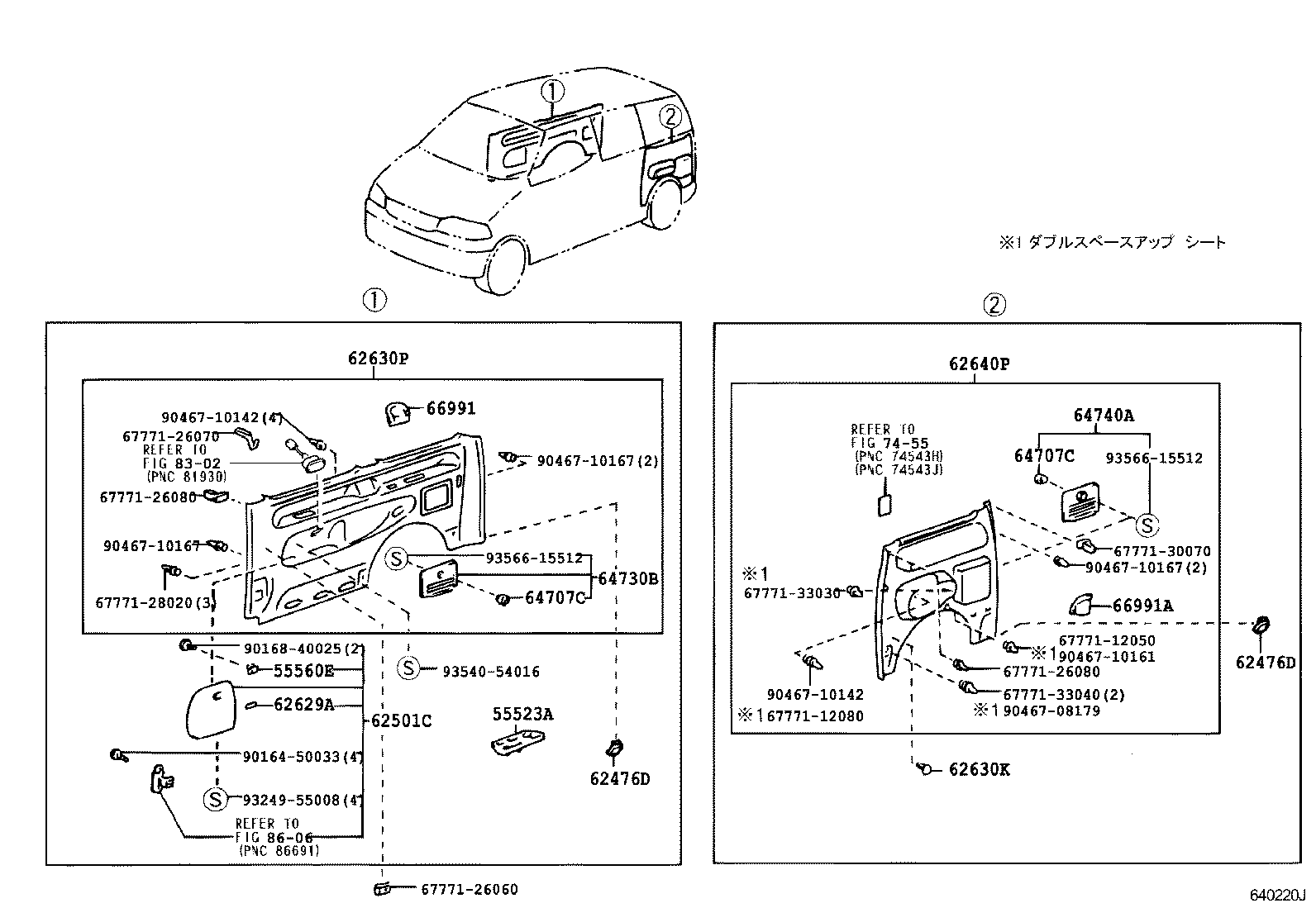

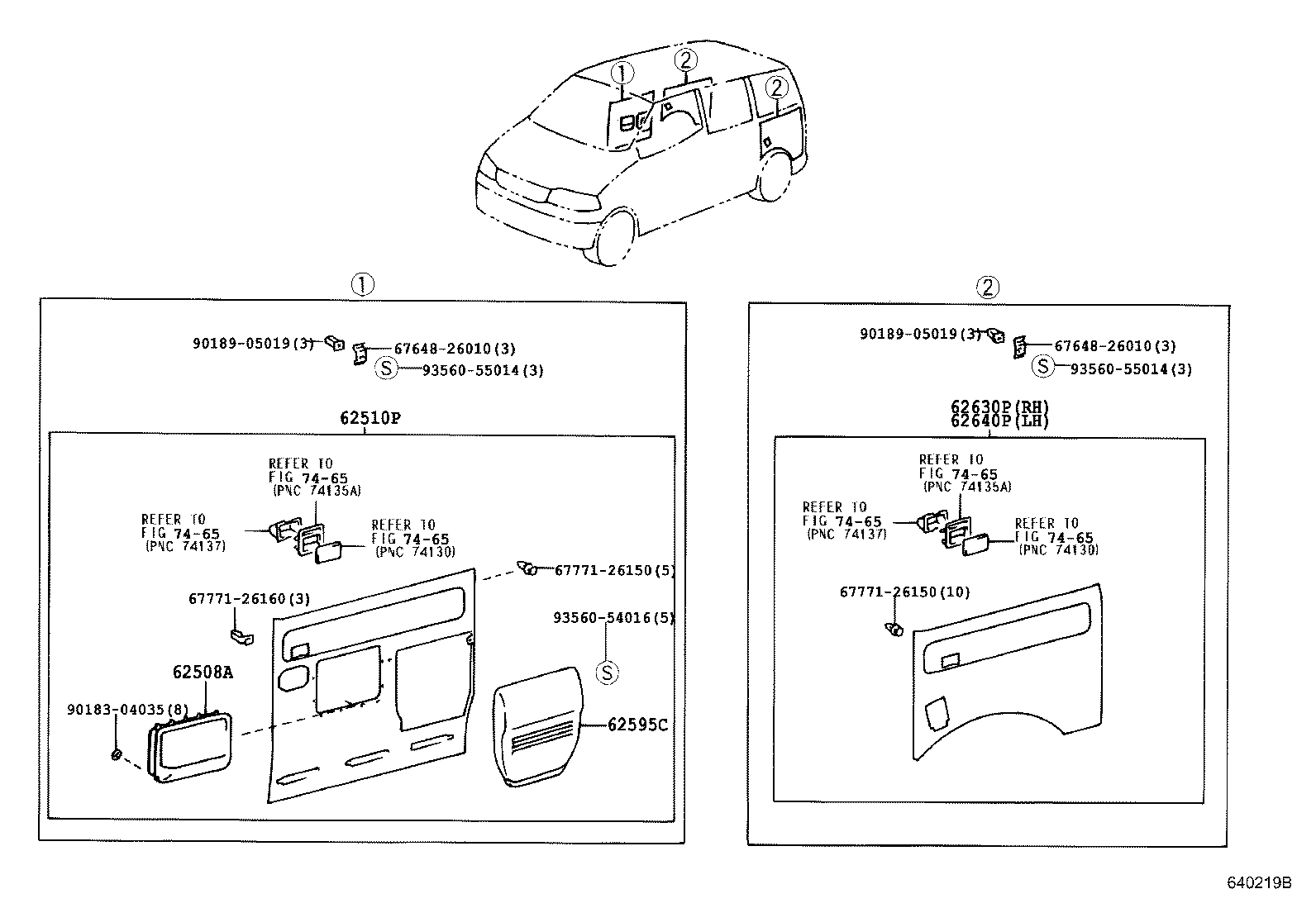

ILLUST NO. 2 OF 4(9704- )E ; (9704- )LXH4#..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-26710G1 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),SAGE,TRIM6# |
1 | ||
| 62630-26700G1 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),SAGE,TRIM6# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-26660G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 67648-26010 | ||||
| 67771-26150 | ||||
| 67771-26160 | ||||
| 90183-04035 | ||||
| 90189-05019 | ||||
| 93560-54016 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 7465 | ||||
ILLUST NO. 2 OF 4(9704- )KCH4#,RCH41,47..G,STD,V,WINT,WISTD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55523A - COVER, HEATER CONTROL OPENING | ||||
| 55523-26040G1 |
KCH4#,RCH41,47..4D..(G,STD) ｱﾘ(ﾃﾚﾋﾞ),SAGE,TRIM6# |
1 | ||
| 55523-26040G1 |
KCH4#,RCH41..G,STD ｱﾘ(ﾃﾚﾋﾞ),SAGE,TRIM6# |
1 | ||
| 55523-26030G1 |
KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6# |
1 | ||
| 55560E - LOCK ASSY, QUARTER TRIM COVER | ||||
| 55560-12080G1 |
KCH4#,RCH41..G,STD SAGE,TRIM6# |
1 | ||
| 55560-12080G1 |
KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6# |
1 | ||
| 62476D - CAP, QUARTER TRIM BOARD | ||||
| 62476-26010G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM60 |
2 | ||
| 62476D - CAP, QUARTER TRIM BOARD | ||||
| 62476-26010G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM60 |
2 | ||
| 62501C - COVER SUB-ASSY, QUARTER TRIM, RH | ||||
| 62501-26050G0 |
KCH4#,RCH41..G,STD SAGE,TRIM6# |
1 | ||
| 62501-26050G0 |
KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6# |
1 | ||
| 62629A - LABEL, QUARTER TRIM | ||||
| 62629-26010 |
RCH47..4D..(G,STD,WINT);KCH4#,RCH41..4D..(G,STD) |
1 | ||
| 62629-26010 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 62630K - CLIP(FOR QUARTER TRIM REAR PANEL) | ||||
| 90467-10034G0 |
KCH4#,RCH41..G,STD SAGE,TRIM6# |
1 | ||
| 90467-10034G0 |
KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-26710G1 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ & ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ),SAGE,TRIM6# |
1 | ||
| 62630-26700G1 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ),SAGE,TRIM6# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-26660G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-13010G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
2 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64769-13010G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
2 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-26010G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 64740A - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64730-26010G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 66991 - HOLDER, QUARTER TRIM CUP, RH | ||||
| 66991-26010G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 66991A - HOLDER, QUARTER TRIM CUP, LH | ||||
| 66991-26020G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-12080 | ||||
| 67771-26060 | ||||
| 67771-26070 | ||||
| 67771-26080 | ||||
| 67771-28020 | ||||
| 67771-30070 | ||||
| 67771-33030 | ||||
| 67771-33040 | ||||
| 90164-50033 | ||||
| 90168-40025 | ||||
| 90467-08179 | ||||
| 90467-10142 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93249-55008 | ||||
| 93540-54016 | ||||
| 93566-15512 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8302 | ||||
| 8606 | ||||

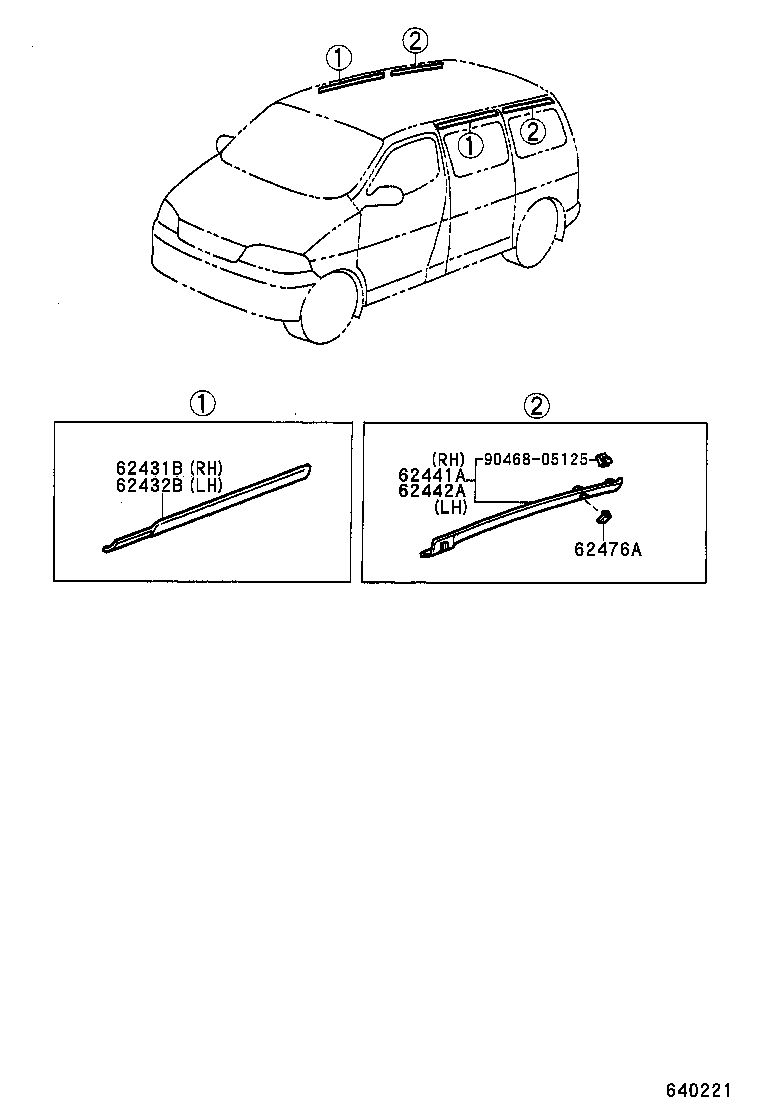

ILLUST NO. 3 OF 4(9704- )KCH4#,RCH41,47..G,STD,V,WINT,WISTD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62431B - GARNISH, ROOF SIDE RAIL, NO.1 RH | ||||
| 62431-26040B2 |
KCH4#,RCH41,47..4D..G GRAY,TRIM6# |
1 | ||
| 62431-26030B2 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
1 | ||
| 62432B - GARNISH, ROOF SIDE RAIL, NO.1 LH | ||||
| 62432-26030B2 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
1 | ||
| 62432-26040B2 |
KCH4#,RCH41,47..G GRAY,TRIM6# |
1 | ||
| 62441A - GARNISH, ROOF SIDE RAIL, NO.2 RH | ||||
| 62441-26020B2 |
KCH4#,RCH41,47..4D..G GRAY,TRIM6# |
1 | ||
| 62441-26010B2 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
1 | ||
| 62442A - GARNISH, ROOF SIDE RAIL, NO.2 LH | ||||
| 62442-26010B2 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.GRAY,TRIM1# |
1 | ||
| 62442-26020B2 |
KCH4#,RCH41,47..G GRAY,TRIM6# |
1 | ||
| 62476A - CAP, ROOF SIDE INNER GARNISH, RH | ||||
| 62476-26020B2 |
KCH4#,RCH41,47..G GRAY,TRIM6# |
5 | ||
| Common parts | ||||
| 90468-05125 | ||||

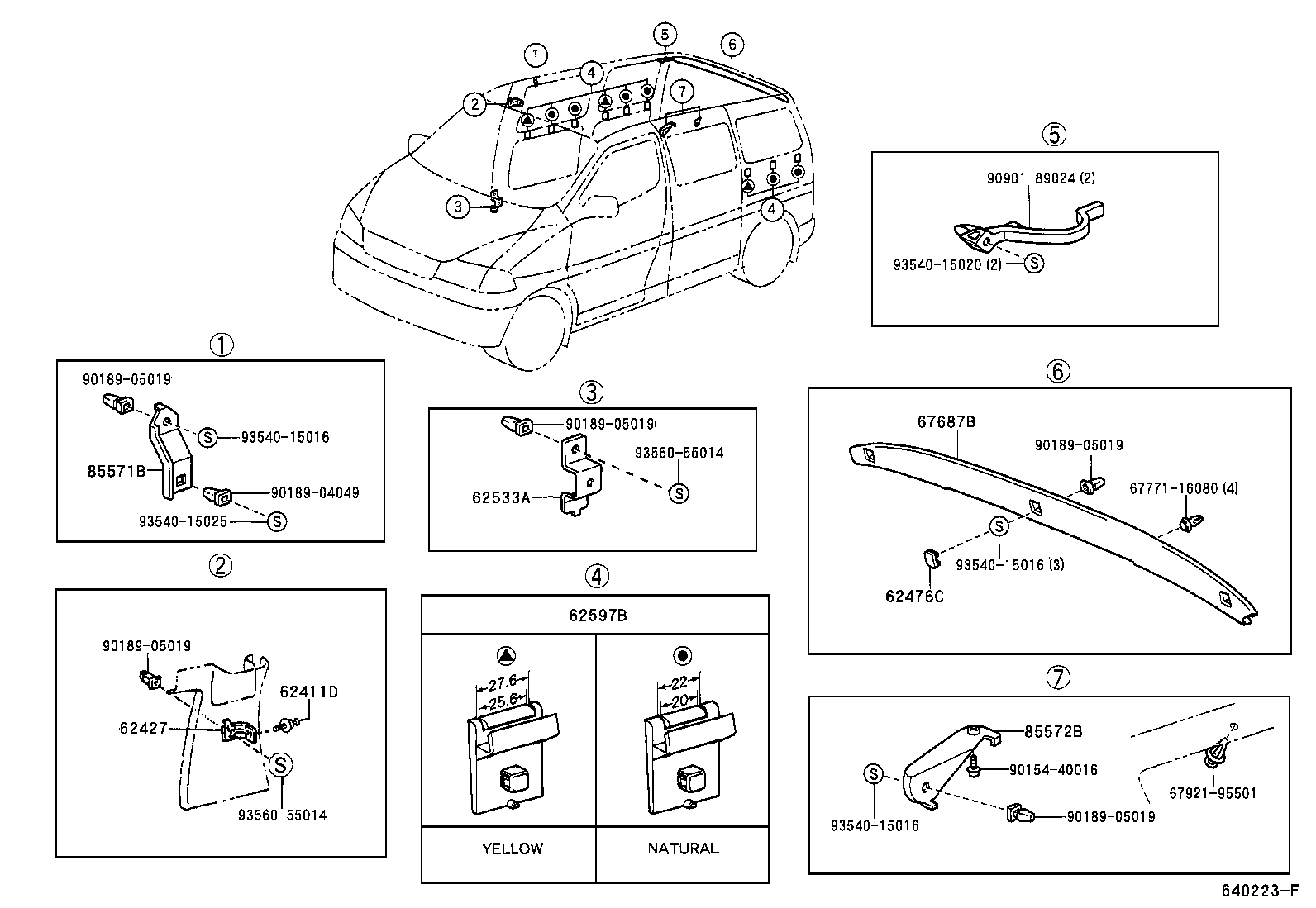

ILLUST NO. 4 OF 4(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62411D - PLUG, HOLE (FOR CENTER PILLAR GARNISH) | ||||
| 90467-07167G0 |
KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6# |
1 | ||
| 90467-07167B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62427 - BRACKET, CENTER PILLAR GARNISH, RH | ||||
| 62427-26020 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 62476C - CAP, ROOF SIDE INNER GARNISH, NO.1 | ||||
| 62476-26010G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) SAGE,TRIM60 |
3 | ||
| 62533A - BRACKET, QUARTER TRIM CLAMP | ||||
| 62533-26040 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 62597B - CLAMP, QUARTER TRIM | ||||
| 62597-26040 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ﾅﾁｭﾗﾙ |
7 | ||
| 62597-26030 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｲｴﾛｰ |
2 | ||
| 67687B - GARNISH, BACK WINDOW | ||||
| 67687-26050B0 |
KCH4#,RCH41,47..G,STD LT.GRAY,TRIM6# |
1 | ||
| 85571B - BRACKET, AUTO CURTAIN RAIL, NO.1 RH | ||||
| 85571-26020 |
LXH4#..G;KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| 85572B - BRACKET, AUTO CURTAIN RAIL, NO.1 LH | ||||
| 85572-26010 |
LXH4#..G;KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| Common parts | ||||
| 67771-16080 | ||||
| 67921-95501 | ||||
| 90154-40016 | ||||
| 90189-04049 | ||||
| 90189-05019 | ||||
| 90901-89024 | ||||
| 93540-15016 | ||||
| 93540-15020 | ||||
| 93540-15025 | ||||
| 93560-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
