RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

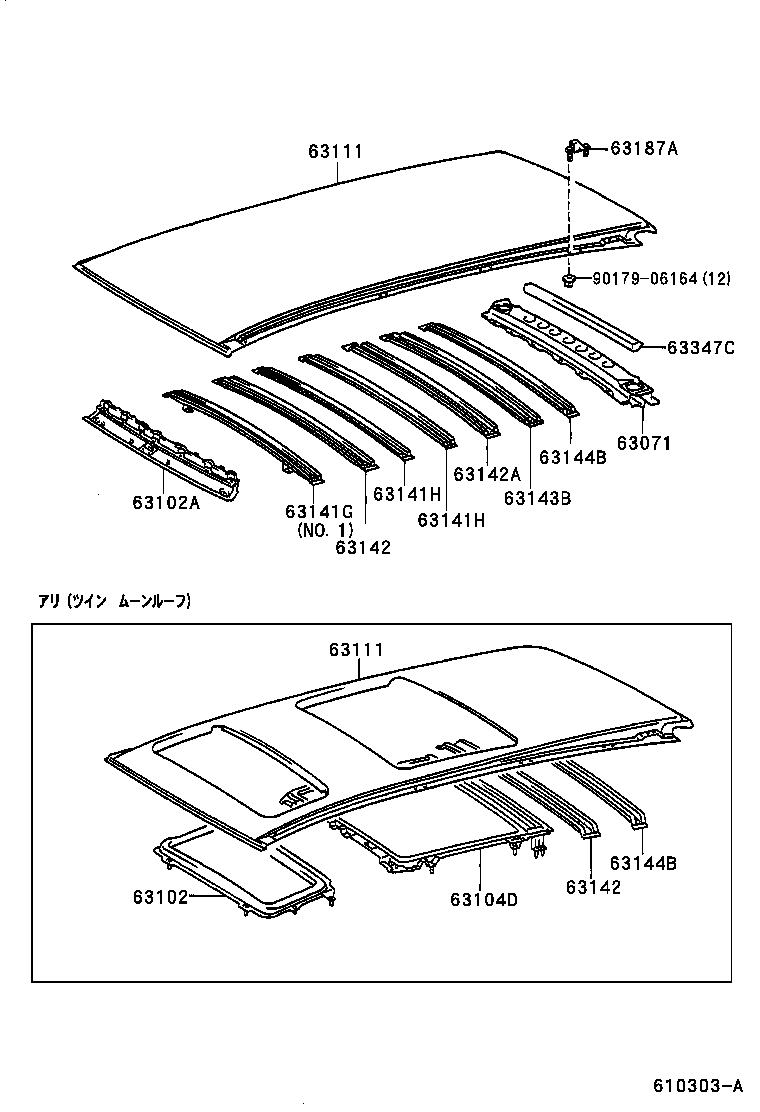

ILLUST NO. 1 OF 4(9704- )KCH4#,RCH41,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-26170 |
LXH4#..G;KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| 63071-26180 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63102-26100 |
KCH4#,RCH41,47 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-26120 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-26080 |
KCH4#,RCH41,47 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-26270 |
KCH4#,RCH41..G,STD ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾅﾋﾞｹﾞｰｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 63111-26210 |
KCH4#,RCH41,47..E,STD,V,WISTD |
1 | ||
| 63111-26240 |
KCH4#,RCH41,47..G,STD,V,WISTD ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-26270 |
KCH4#,RCH41..G,STD ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾅﾋﾞｹﾞｰｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 63111-26210 |
KCH4#,RCH41,47..E,STD,V,WISTD |
1 | ||
| 63111-26240 |
KCH4#,RCH41,47..G,STD,V,WISTD ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-26150 |
KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63143-26080 |
KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
2 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63143-26080 |
KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
2 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-26070 |
KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| 63142-26080 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-26070 |
KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| 63142-26080 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-26070 |
KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63142-26070 |
KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-26030 |
KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| 63144-26040 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-26030 |
KCH4#,RCH41,47..E,STD,V,WINT,WISTD |
1 | ||
| 63144-26040 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63107-26050 |
KCH4#,RCH41,47..E,G,STD,V,WISTD |
6 | ||
| 63347C - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-26010 |
KCH4#,RCH41,47 |
1 | ||
| Common parts | ||||
| 90179-06164 | ||||

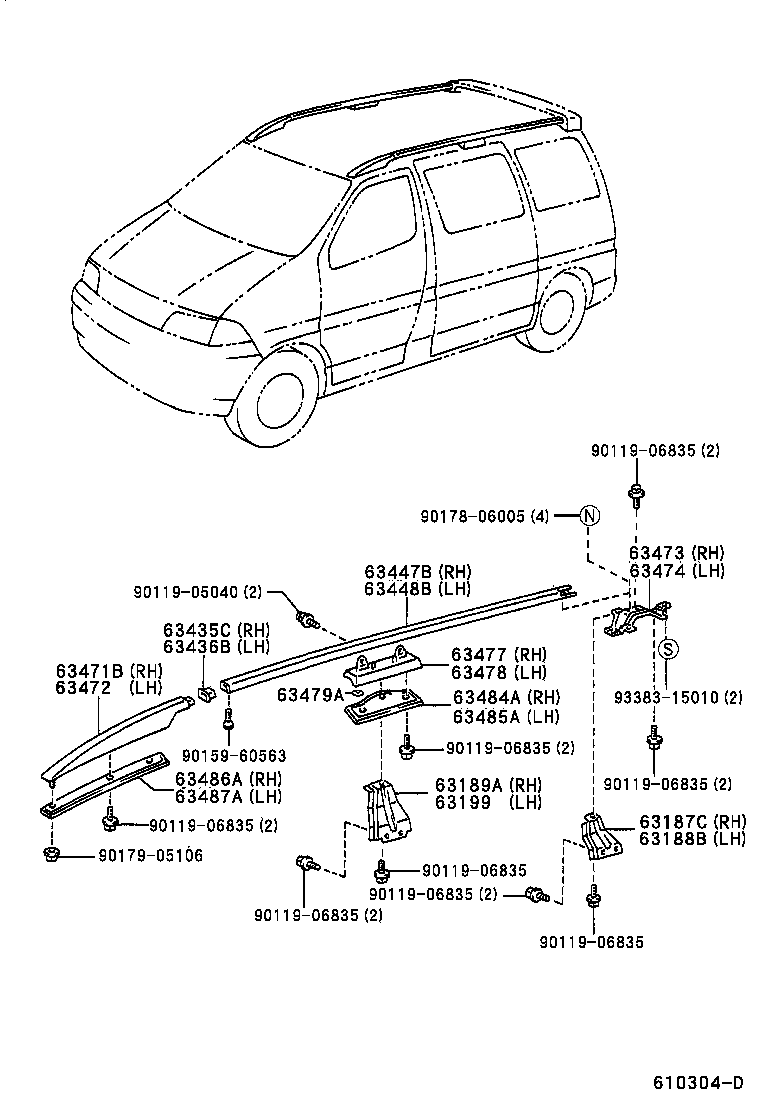

ILLUST NO. 4 OF 4(9704- )KCH4#,RCH41,47
ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-05040 | ||||
| 90119-06835 | ||||
| 90159-60563 | ||||
| 90178-06005 | ||||
| 90179-05106 | ||||
| 93383-15010 | ||||

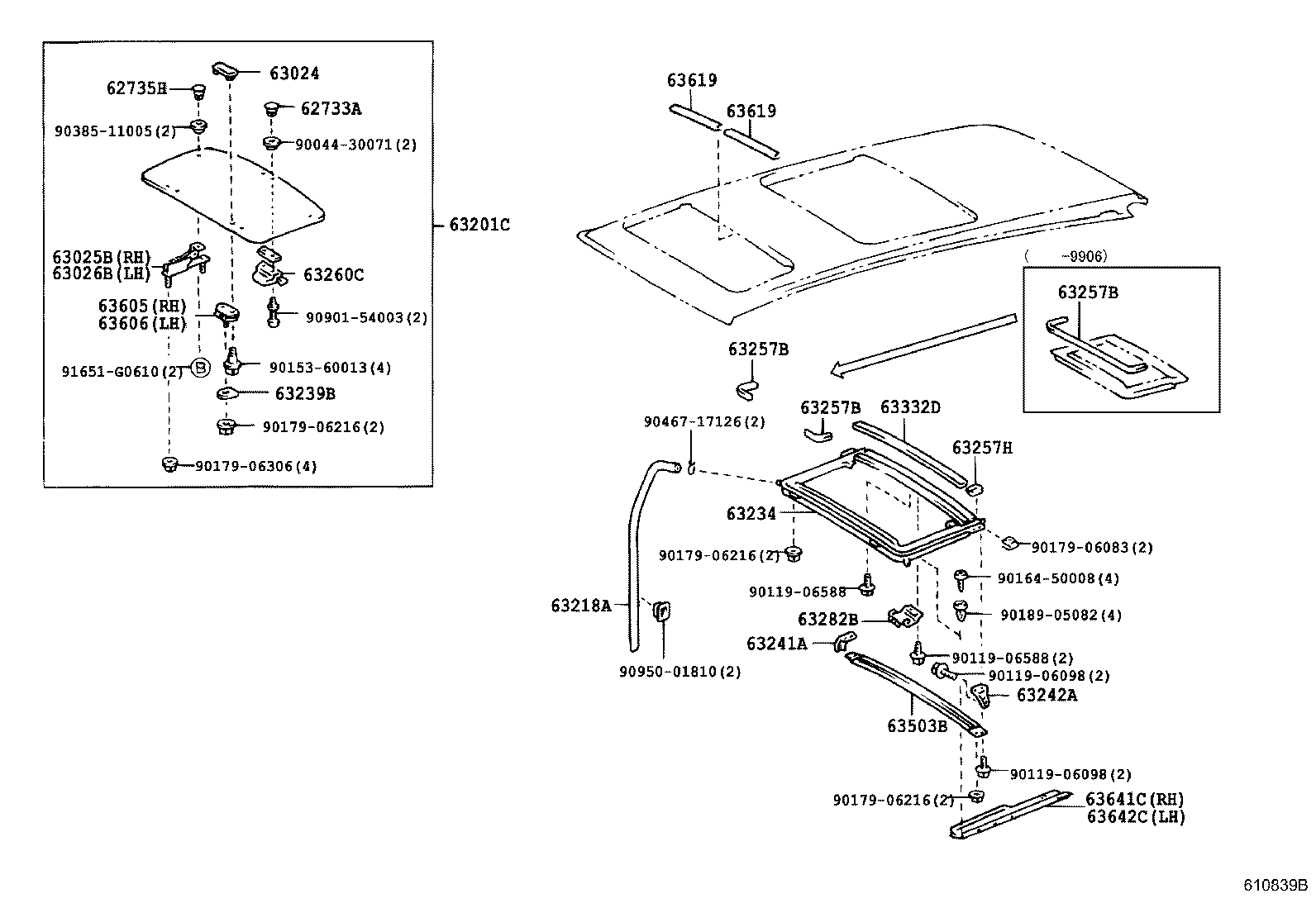

ILLUST NO. 2 OF 4(9704- )KCH4#,RCH41,47
ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62733A - RETAINER, QUARTER WINDOW HINGE | ||||
| 62733-87201 |
KCH4#,RCH41,47 |
2 | ||
| 62735H - RETAINER, QUARTER WINDOW HINGE | ||||
| 62735-95D00 |
KCH4#,RCH41,47 |
2 | ||
| 63024 - SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1 | ||||
| 63024-95700 |
KCH4#,RCH41,47 |
2 | ||
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-26060 |
KCH4#,RCH41,47 |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-26080 |
KCH4#,RCH41,47 |
1 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-26130 |
KCH4#,RCH41,47 *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-26060 |
KCH4#,RCH41,47 長さ=1525 |
2 | ||
| 63234 - PROTECTOR, SLIDE ROOF HOUSING | ||||
| 63234-26030 |
KCH4#,RCH41,47 |
1 | ||
| 63239B - PAD, TILT ROOF GLASS | ||||
| 63239-26020 |
KCH4#,RCH41,47 |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-26010 |
KCH4#,RCH41,47..4D |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-26010 |
KCH4#,RCH41,47 |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-26030 |
KCH4#,RCH41,47 |
2 | ||
| 63257-26050 |
KCH4#,RCH41,47 |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-26030 |
KCH4#,RCH41,47 |
2 | ||
| 63257-26050 |
KCH4#,RCH41,47 |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-26030 |
KCH4#,RCH41,47 |
2 | ||
| 63257-26050 |
KCH4#,RCH41,47 |
1 | ||
| 63257H - SEAL, REMOVABLE ROOF | ||||
| 63257-26030 |
KCH4#,RCH41,47 |
2 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
KCH4#,RCH41,47 |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-26020 |
KCH4#,RCH41,47 |
1 | ||
| 63332D - PAD, SUN ROOF HEADLINING | ||||
| 63332-26030 |
KCH4#,RCH41,47 |
1 | ||
| 63503B - SUPPORT SUB-ASSY, AIR CONDITIONER MOUNTING | ||||
| 63503-26020 |
KCH4#,RCH41,47 |
1 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-26020 |
KCH4#,RCH41,47 |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-26020 |
KCH4#,RCH41,47 |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-26030 |
KCH4#,RCH41,47 |
2 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-26030 |
KCH4#,RCH41,47 |
2 | ||
| 63641C - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63641-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 63642C - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63642-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| Common parts | ||||
| 90044-30071 | ||||
| 90119-06098 | ||||
| 90119-06588 | ||||
| 90153-60013 | ||||
| 90164-50008 | ||||
| 90179-06083 | ||||
| 90179-06216 | ||||
| 90179-06306 | ||||
| 90189-05082 | ||||
| 90385-11005 | ||||
| 90467-17126 | ||||
| 90901-54003 | ||||
| 90950-01810 | ||||
| 91651-G0610 | ||||

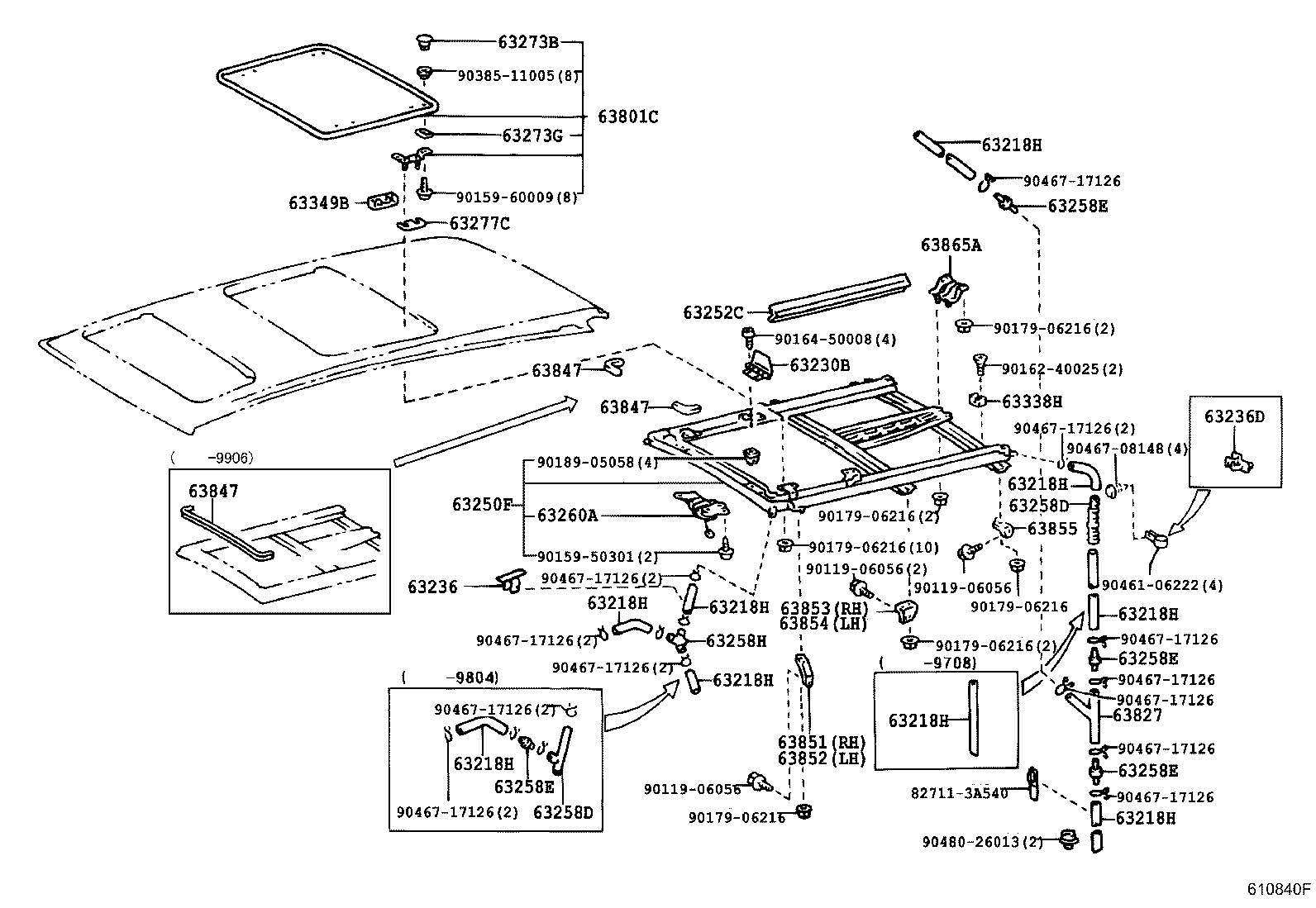

ILLUST NO. 3 OF 4(9704- )KCH4#,RCH41,47
ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-26080 |
KCH4#,RCH41,47..G,STD,WINT L=1533 |
2 | ||
| 63249-26140 |
KCH4#,RCH41,47..G,STD,WINT L=249 |
2 | ||
| 63249-26230 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=445 |
2 | ||
| 63249-26210 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
2 | ||
| 63249-26290 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
2 | ||
| 63249-26310 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=300 |
2 | ||
| 63249-26300 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=45 |
2 | ||
| 63249-26220 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=240 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-26080 |
KCH4#,RCH41,47..G,STD,WINT L=1533 |
2 | ||
| 63249-26140 |
KCH4#,RCH41,47..G,STD,WINT L=249 |
2 | ||
| 63249-26230 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=445 |
2 | ||
| 63249-26210 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
2 | ||
| 63249-26290 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
2 | ||
| 63249-26310 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=300 |
2 | ||
| 63249-26300 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=45 |
2 | ||
| 63249-26220 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=240 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-26080 |
KCH4#,RCH41,47..G,STD,WINT L=1533 |
2 | ||
| 63249-26140 |
KCH4#,RCH41,47..G,STD,WINT L=249 |
2 | ||
| 63249-26230 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=445 |
2 | ||
| 63249-26210 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
2 | ||
| 63249-26290 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
2 | ||
| 63249-26310 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=300 |
2 | ||
| 63249-26300 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=45 |
2 | ||
| 63249-26220 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=240 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-26080 |
KCH4#,RCH41,47..G,STD,WINT L=1533 |
2 | ||
| 63249-26140 |
KCH4#,RCH41,47..G,STD,WINT L=249 |
2 | ||
| 63249-26230 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=445 |
2 | ||
| 63249-26210 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
2 | ||
| 63249-26290 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
2 | ||
| 63249-26310 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=300 |
2 | ||
| 63249-26300 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=45 |
2 | ||
| 63249-26220 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=240 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-26080 |
KCH4#,RCH41,47..G,STD,WINT L=1533 |
2 | ||
| 63249-26140 |
KCH4#,RCH41,47..G,STD,WINT L=249 |
2 | ||
| 63249-26230 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=445 |
2 | ||
| 63249-26210 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
2 | ||
| 63249-26290 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
2 | ||
| 63249-26310 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=300 |
2 | ||
| 63249-26300 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=45 |
2 | ||
| 63249-26220 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=240 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-26080 |
KCH4#,RCH41,47..G,STD,WINT L=1533 |
2 | ||
| 63249-26140 |
KCH4#,RCH41,47..G,STD,WINT L=249 |
2 | ||
| 63249-26230 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=445 |
2 | ||
| 63249-26210 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
2 | ||
| 63249-26290 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
2 | ||
| 63249-26310 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=300 |
2 | ||
| 63249-26300 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=45 |
2 | ||
| 63249-26220 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=240 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-26080 |
KCH4#,RCH41,47..G,STD,WINT L=1533 |
2 | ||
| 63249-26140 |
KCH4#,RCH41,47..G,STD,WINT L=249 |
2 | ||
| 63249-26230 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=445 |
2 | ||
| 63249-26210 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
2 | ||
| 63249-26290 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
2 | ||
| 63249-26310 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=300 |
2 | ||
| 63249-26300 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=45 |
2 | ||
| 63249-26220 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=240 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-26080 |
KCH4#,RCH41,47..G,STD,WINT L=1533 |
2 | ||
| 63249-26140 |
KCH4#,RCH41,47..G,STD,WINT L=249 |
2 | ||
| 63249-26230 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=445 |
2 | ||
| 63249-26210 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
2 | ||
| 63249-26290 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
2 | ||
| 63249-26310 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=300 |
2 | ||
| 63249-26300 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=45 |
2 | ||
| 63249-26220 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=240 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-26080 |
KCH4#,RCH41,47..G,STD,WINT L=1533 |
2 | ||
| 63249-26140 |
KCH4#,RCH41,47..G,STD,WINT L=249 |
2 | ||
| 63249-26230 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=445 |
2 | ||
| 63249-26210 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
2 | ||
| 63249-26290 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
2 | ||
| 63249-26310 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=300 |
2 | ||
| 63249-26300 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=45 |
2 | ||
| 63249-26220 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ=240 |
2 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-26010 |
KCH4#,RCH41,47 |
2 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 63250F - HOUSING ASSY, SLIDING ROOF | ||||
| 63250-26040 |
KCH4#,RCH41,47 |
1 | ||
| 63252C - WEATHERSTRIP, SLIDING ROOF, REAR | ||||
| 63252-26010 |
KCH4#,RCH41,47 |
2 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-26020 |
KCH4#,RCH41,47..G,STD,WINT |
2 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-26020 |
KCH4#,RCH41,47..G,STD,WINT |
2 | ||
| 63258E - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 63258-95J01 |
KCH4#,RCH41,47..G,STD,WINT |
2 | ||
| 63258-95J01 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
6 | ||
| 63258-95J01 |
KCH4#,RCH41,47..G,STD,WINT |
8 | ||
| 63258E - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 63258-95J01 |
KCH4#,RCH41,47..G,STD,WINT |
2 | ||
| 63258-95J01 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
6 | ||
| 63258-95J01 |
KCH4#,RCH41,47..G,STD,WINT |
8 | ||
| 63258E - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 63258-95J01 |
KCH4#,RCH41,47..G,STD,WINT |
2 | ||
| 63258-95J01 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
6 | ||
| 63258-95J01 |
KCH4#,RCH41,47..G,STD,WINT |
8 | ||
| 63258E - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 63258-95J01 |
KCH4#,RCH41,47..G,STD,WINT |
2 | ||
| 63258-95J01 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
6 | ||
| 63258-95J01 |
KCH4#,RCH41,47..G,STD,WINT |
8 | ||
| 63258H - JOINT, SLIDE ROOF DRAIN HOSE, RH | ||||
| 63258-26030 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-26091 |
KCH4#,RCH41,47 |
1 | ||
| 63273B - RETAINER, ROOF WINDOW HINGE | ||||
| 62735-95D00 |
KCH4#,RCH41,47 |
8 | ||
| 63273G - PACKING, SLIDE ROOF | ||||
| 63273-95J00 |
KCH4#,RCH41,47 |
8 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-95701 |
KCH4#,RCH41,47 厚さ=1.0 |
1 | ||
| 63338H - STOPPER, SUNSHADE LOCK, NO.2 | ||||
| 63338-95J03 |
KCH4#,RCH41,47 |
2 | ||
| 63349B - GARNISH, ROOF HEADLINING, REAR | ||||
| 63349-26010 |
KCH4#,RCH41,47 |
4 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-26070 |
KCH4#,RCH41,47 *TEM,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 63827 - JOINT, REAR SLIDE ROOF DRAIN HOSE | ||||
| 63827-95J00 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 63847 - SEAL, REAR SLIDE ROOF HOUSING | ||||
| 63847-26020 |
KCH4#,RCH41,47 |
1 | ||
| 63257-26030 |
KCH4#,RCH41,47 |
2 | ||
| 63847 - SEAL, REAR SLIDE ROOF HOUSING | ||||
| 63847-26020 |
KCH4#,RCH41,47 |
1 | ||
| 63257-26030 |
KCH4#,RCH41,47 |
2 | ||
| 63847 - SEAL, REAR SLIDE ROOF HOUSING | ||||
| 63847-26020 |
KCH4#,RCH41,47 |
1 | ||
| 63257-26030 |
KCH4#,RCH41,47 |
2 | ||
| 63851 - BRACKET, REAR SLIDE ROOF HOUSING, NO.1 RH | ||||
| 63851-26010 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 63852 - BRACKET, REAR SLIDE ROOF HOUSING, NO.1 LH | ||||
| 63852-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 63853 - BRACKET, REAR SLIDE ROOF HOUSING, NO.2 RH | ||||
| 63853-26030 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 63854 - BRACKET, REAR SLIDE ROOF HOUSING, NO.2 LH | ||||
| 63854-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 63855 - BRACKET, REAR SLIDE ROOF HOUSING, NO.3 | ||||
| 63855-26030 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 63865A - BRACKET, REAR SLIDE ROOF HOUSING, NO.2 REAR RH | ||||
| 63865-26040 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| Common parts | ||||
| 82711-3A540 | ||||
| 90119-06056 | ||||
| 90159-50301 | ||||
| 90159-60009 | ||||
| 90162-40025 | ||||
| 90164-50008 | ||||
| 90179-06216 | ||||
| 90189-05058 | ||||
| 90385-11005 | ||||
| 90461-06222 | ||||
| 90467-08148 | ||||
| 90467-17126 | ||||
| 90480-26013 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
