RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

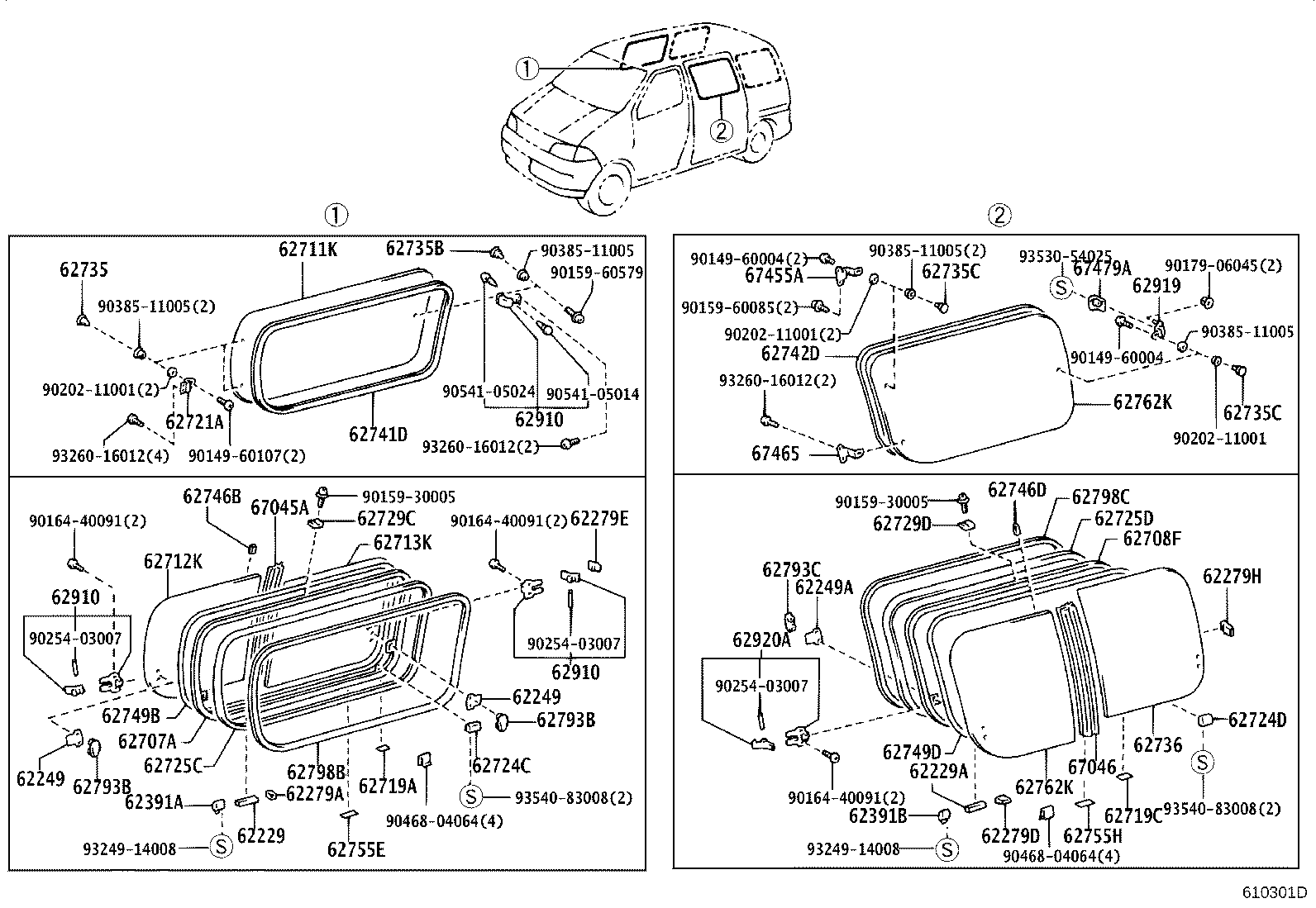

ILLUST NO. 1 OF 2(9704- )LXH4#,RCH42 ; (9704- )KCH4#,RCH41,47..4D

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 62229 62229A 62249 62249 62249A 62279A 62279D 62279E 62279H 62391A 62391B 62707A 62708F 62711K 62712K 62713K 62719A 62719C 62721A 62724C 62724D 62725C 62725D 62729C 62729D 62735 62735B 62735C 62735C 62736 62741D 62742D 62746B 62746D 62749B 62749D 62755E 62755H 62762K 62762K 62793B 62793B 62793C 62798B 62798C 62910 62910 62910 62919 62920A 67045A 67046 67455A 67465 67479A 9014960004 9014960004 9014960107 9015930005 9015930005 9015960085 9015960579 9016440091 9016440091 9016440091 9017906045 9020211001 9020211001 9020211001 9025403007 9025403007 9025403007 9038511005 9038511005 9038511005 9038511005 9046804064 9046804064 9054105014 9054105024 9324914008 9324914008 9326016012 9326016012 9326016012 9353054025 9354083008 9354083008
Part # Description Qty Price
62711K - GLASS, QUARTER WINDOW, FRONT RH
62711-26250

KCH4#,RCH41,47..4D..G

*SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
62721A - HINGE, SIDE FRONT WINDOW, UPPER
62721-26020

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

上側

 1
62721-26010

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

下側

 1
62735 - RETAINER, QUARTER WINDOW HINGE
62735-26110

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
62735B - RETAINER, SIDE FRONT WINDOW HINGE, RH
62735-95D00

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
62735C - RETAINER, SIDE FRONT WINDOW HINGE, LH
63273-95701

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

ｱﾘ(ｺﾃｲ ｻｲﾄﾞｳｲﾝﾄﾞｳ)

 3
62735C - RETAINER, SIDE FRONT WINDOW HINGE, LH
63273-95701

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

ｱﾘ(ｺﾃｲ ｻｲﾄﾞｳｲﾝﾄﾞｳ)

 3
62741D - WEATHERSTRIP, SIDE FRONT WINDOW
62741-26040

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

 1
62742D - WEATHERSTRIP, SIDE FRONT WINDOW, LH
62751-26020B1

KCH4#,RCH41,47..G,STD

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),LT.GRAY,TRIM6#

 1
62762K - GLASS, SIDE DOOR WINDOW, FRONT LH
62733-26290

KCH4#,RCH41,47..G

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
62762K - GLASS, SIDE DOOR WINDOW, FRONT LH
62733-26290

KCH4#,RCH41,47..G

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-26040B1

KCH4#,RCH41,47..4D..(G,STD)

LT.GRAY,TRIM6#

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-26040B1

KCH4#,RCH41,47..4D..(G,STD)

LT.GRAY,TRIM6#

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-26040B1

KCH4#,RCH41,47..4D..(G,STD)

LT.GRAY,TRIM6#

 1
62919 - STAY, SLIDE DOOR WINDOW LOCK
62919-26010

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
67455A - HINGE, SLIDE DOOR WINDOW, UPPER
67455-26010

KCH4#,RCH41,47..G,STD,WINT

 1
67455-26020

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
67465 - HINGE, SLIDE DOOR WINDOW, LOWER
67465-26020

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
67465-26010

KCH4#,RCH41,47..G,STD,WINT

 1
67479A - COVER, SLIDE DOOR WINDOW LOCK
67479-26010B1

KCH4#,RCH41,47..G,STD

ｺﾃｲ ｳｲﾝﾄﾞｳ 1,LT.GRAY,TRIM6#

 1
Common parts
90149-60004
90149-60107
90159-30005
90159-60085
90159-60579
90164-40091
90179-06045
90202-11001
90254-03007
90385-11005
90468-04064
90541-05014
90541-05024
93249-14008
93260-16012
93530-54025
93540-83008

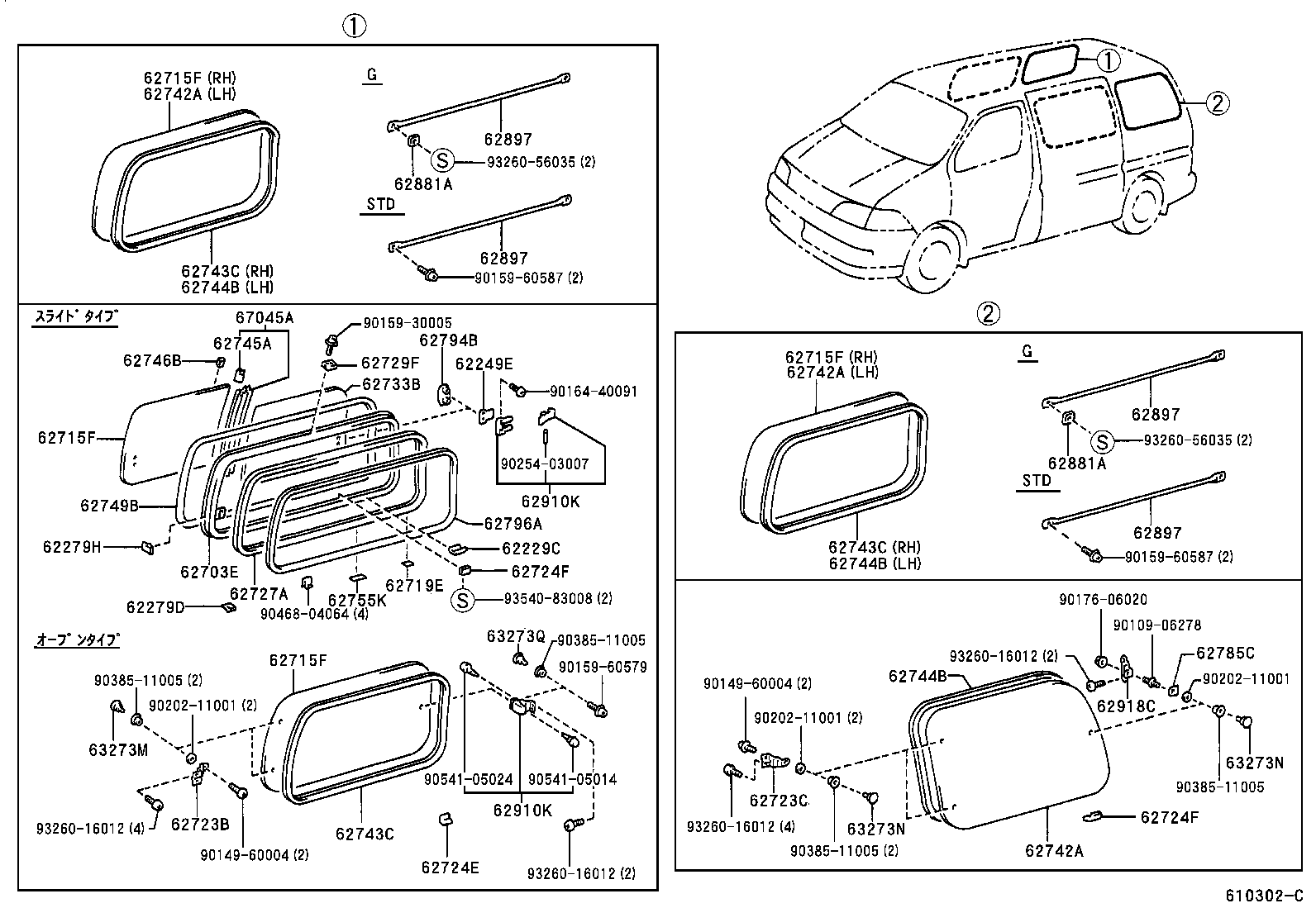

ILLUST NO. 2 OF 2(9704- )LXH4#,RCH42 ; (9704- )KCH4#,RCH41,47..4D

Click highlighted areas on diagram

ﾘﾔ

diagram 62229C 62249E 62279D 62279H 62703E 62715F 62715F 62715F 62715F 62719E 62723B 62723C 62724E 62724F 62724F 62727A 62729F 62733B 62742A 62742A 62742A 62743C 62743C 62743C 62744B 62744B 62744B 62745A 62746B 62749B 62755K 62785C 62794B 62796A 62881A 62881A 62897 62897 62897 62897 62910K 62910K 62918C 63273M 63273N 63273N 63273Q 67045A 9010906278 9014960004 9014960004 9015930005 9015960579 9015960587 9015960587 9016440091 9017606020 9020211001 9020211001 9020211001 9025403007 9038511005 9038511005 9038511005 9038511005 9046804064 9054105014 9054105024 9326016012 9326016012 9326016012 9326016012 9326056035 9326056035 9354083008
Part # Description Qty Price
62715F - GLASS, SIDE REAR WINDOW, RH
62715-26490

KCH4#,RCH41,47..4D..G

*SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾃﾚﾋﾞ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
62715-26460

KCH4#,RCH41,47..4D..G

*SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
62715F - GLASS, SIDE REAR WINDOW, RH
62715-26490

KCH4#,RCH41,47..4D..G

*SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾃﾚﾋﾞ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
62715-26460

KCH4#,RCH41,47..4D..G

*SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
62715F - GLASS, SIDE REAR WINDOW, RH
62715-26490

KCH4#,RCH41,47..4D..G

*SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾃﾚﾋﾞ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
62715-26460

KCH4#,RCH41,47..4D..G

*SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
62715F - GLASS, SIDE REAR WINDOW, RH
62715-26490

KCH4#,RCH41,47..4D..G

*SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾃﾚﾋﾞ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
62715-26460

KCH4#,RCH41,47..4D..G

*SERT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
62723B - HINGE, SIDE REAR WINDOW, UPPER
62723-26010

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
62723C - HINGE, SIDE REAR WINDOW, UPPER
62723-26010

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
62724E - STOP, SIDE REAR WINDOW GLASS, RH
62724-26020

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
62724F - STOP, SIDE REAR WINDOW GLASS, LH
62724-26020

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
62724F - STOP, SIDE REAR WINDOW GLASS, LH
62724-26020

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 2
62742A - GLASS, SIDE REAR WINDOW, FRONT LH
62716-26520

KCH4#..G07S;RCH41,47..W07S

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾃﾚﾋﾞ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
62716-26490

KCH4#,RCH41,47..G

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
62742A - GLASS, SIDE REAR WINDOW, FRONT LH
62716-26520

KCH4#..G07S;RCH41,47..W07S

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾃﾚﾋﾞ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
62716-26490

KCH4#,RCH41,47..G

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
62742A - GLASS, SIDE REAR WINDOW, FRONT LH
62716-26520

KCH4#..G07S;RCH41,47..W07S

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾃﾚﾋﾞ) OR ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ)

 1
62716-26490

KCH4#,RCH41,47..G

*SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ

 1
62743C - WEATHERSTRIP, SIDE REAR WINDOW
62743-26040

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
62743C - WEATHERSTRIP, SIDE REAR WINDOW
62743-26040

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
62743C - WEATHERSTRIP, SIDE REAR WINDOW
62743-26040

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
62744B - WEATHERSTRIP, SIDE REAR WINDOW, LH
62743-26040

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
62744B - WEATHERSTRIP, SIDE REAR WINDOW, LH
62743-26040

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
62744B - WEATHERSTRIP, SIDE REAR WINDOW, LH
62743-26040

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
62785C - SPACER, QUARTER WINDOW GLASS
62785-26010

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
62910K - LOCK ASSY, QUARTER WINDOW, RH
62910-26030B0

KCH4#,RCH41,47..4D..(G,STD)

LT.GRAY,TRIM6#

 1
62910K - LOCK ASSY, QUARTER WINDOW, RH
62910-26030B0

KCH4#,RCH41,47..4D..(G,STD)

LT.GRAY,TRIM6#

 1
62918C - STAY, SIDE REAR WINDOW LOCK
62918-26010

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 1
63273M - RETAINER, ROOF WINDOW HINGE, RH
62735-26110

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

 2
63273N - RETAINER, ROOF WINDOW HINGE, LH
63273-95701

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 3
63273N - RETAINER, ROOF WINDOW HINGE, LH
63273-95701

KCH4#,RCH41,47..G,STD,V,WINT,WISTD

 3
63273Q - RETAINER, QUARTER WINDOW HINGE
62735-95D00

KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)

 1
Common parts
90109-06278
90149-60004
90159-30005
90159-60579
90159-60587
90164-40091
90176-06020
90202-11001
90254-03007
90385-11005
90468-04064
90541-05014
90541-05024
93260-16012
93260-56035
93540-83008
