Toyota Regius/touring hiace RCH41 CONSOLE BOX & BRACKET

RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999

Engine 3RZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9704- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

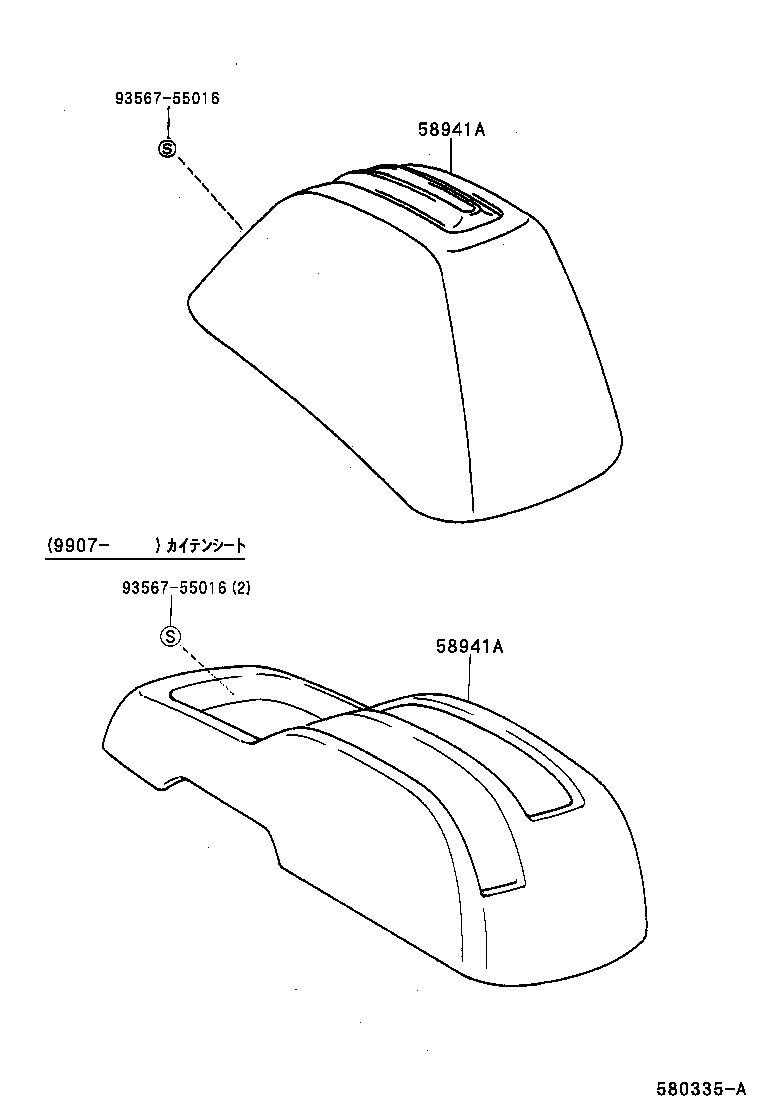

58941A - COVER, PARKING BRAKE HOLE
58904-26040G0	KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6#	04/1997 - 07/1999	1
58904-26040B0	LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1#	04/1997 - 07/1999	1
58941-26030G0	KCH4#,RCH41,47..4D..(G,STD) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),DK.SAGE,TRIM6#	04/1997 - 07/1999	1
58941A - COVER, PARKING BRAKE HOLE
58904-26040G0	KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6#	04/1997 - 07/1999	1
58904-26040B0	LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1#	04/1997 - 07/1999	1
58941-26030G0	KCH4#,RCH41,47..4D..(G,STD) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),DK.SAGE,TRIM6#	04/1997 - 07/1999	1
Common parts
93567-55016

(9704- )KCH4#,RCH41,47..4D..G,STD,V,WINT,WISTD

Click highlighted areas on diagram

Part #	Description	Period	Qty

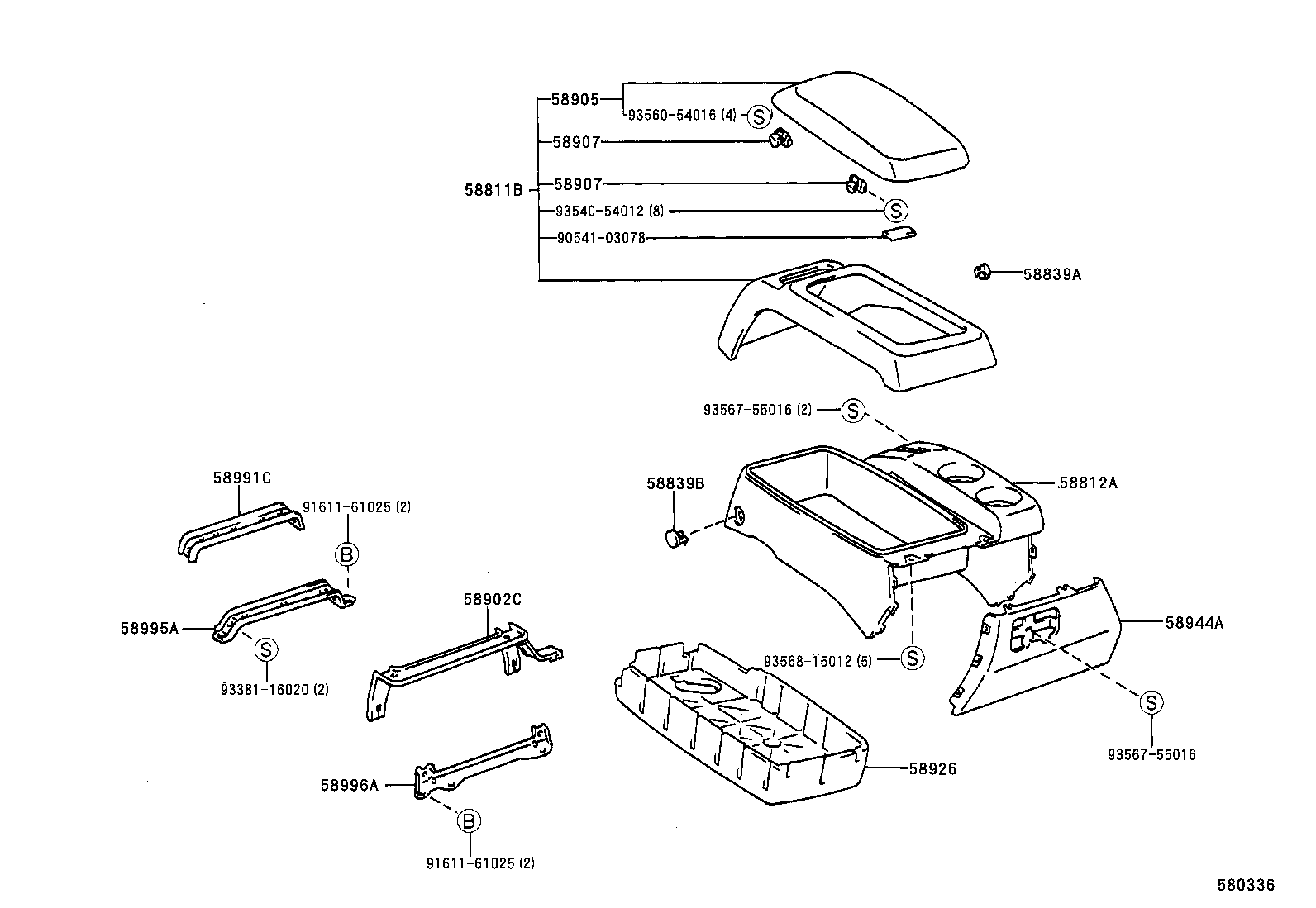

58811B - BOX, CONSOLE
58801-26050G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	1
58812A - BOX, CONSOLE, LOWER
58812-26030G0	KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6#	04/1998 - 07/1999	1
58812-26030G0	KCH4#,RCH41..G,STD DK.SAGE,TRIM6#	04/1997 - 04/1998	1
58839A - COVER, CONSOLE BOX HOLE
58839-26010G0	KCH4#,RCH41..G,STD DK.SAGE,TRIM6#	04/1997 - 04/1998	1
58839-26010G0	KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6#	04/1998 - 07/1999	1
58839B - COVER, CONSOLE BOX HOLE, NO.2
58839-26020G0	KCH4#,RCH41..G,STD DK.SAGE,TRIM6#	04/1997 - 04/1998	1
58839-26020G0	KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6#	04/1998 - 07/1999	1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-26020	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	1
58902-26030	KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙｺﾝｿｰﾙﾎﾞﾂｸｽ)	04/1997 - 07/1999	1
58902-26020	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-26160G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-26020	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
58907-26020	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	2
58907-26030	KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙｺﾝｿｰﾙﾎﾞﾂｸｽ)	04/1997 - 07/1999	1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-26020	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
58907-26020	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	2
58907-26030	KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙｺﾝｿｰﾙﾎﾞﾂｸｽ)	04/1997 - 07/1999	1
58926 - INSULATOR, CONSOLE BOX, LOWER
58926-26010	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
58926-26010	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	1
58944A - COVER, CONSOLE, REAR
58944-26010G0	KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6#	04/1998 - 07/1999	1
58944-26010G0	KCH4#,RCH41..G,STD DK.SAGE,TRIM6#	04/1997 - 04/1998	1
58991C - BRACKET, CONSOLE BOX MOUNTING, FRONT
58991-26020	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	1
58991-26020	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-26030	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
58995-26030	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-26020	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
58996-26020	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	1
Common parts
90541-03078
91611-61025
93381-16020
93540-54012
93560-54016
93567-55016
93568-15012

(9704- )4D..G07S,W07S

Click highlighted areas on diagram

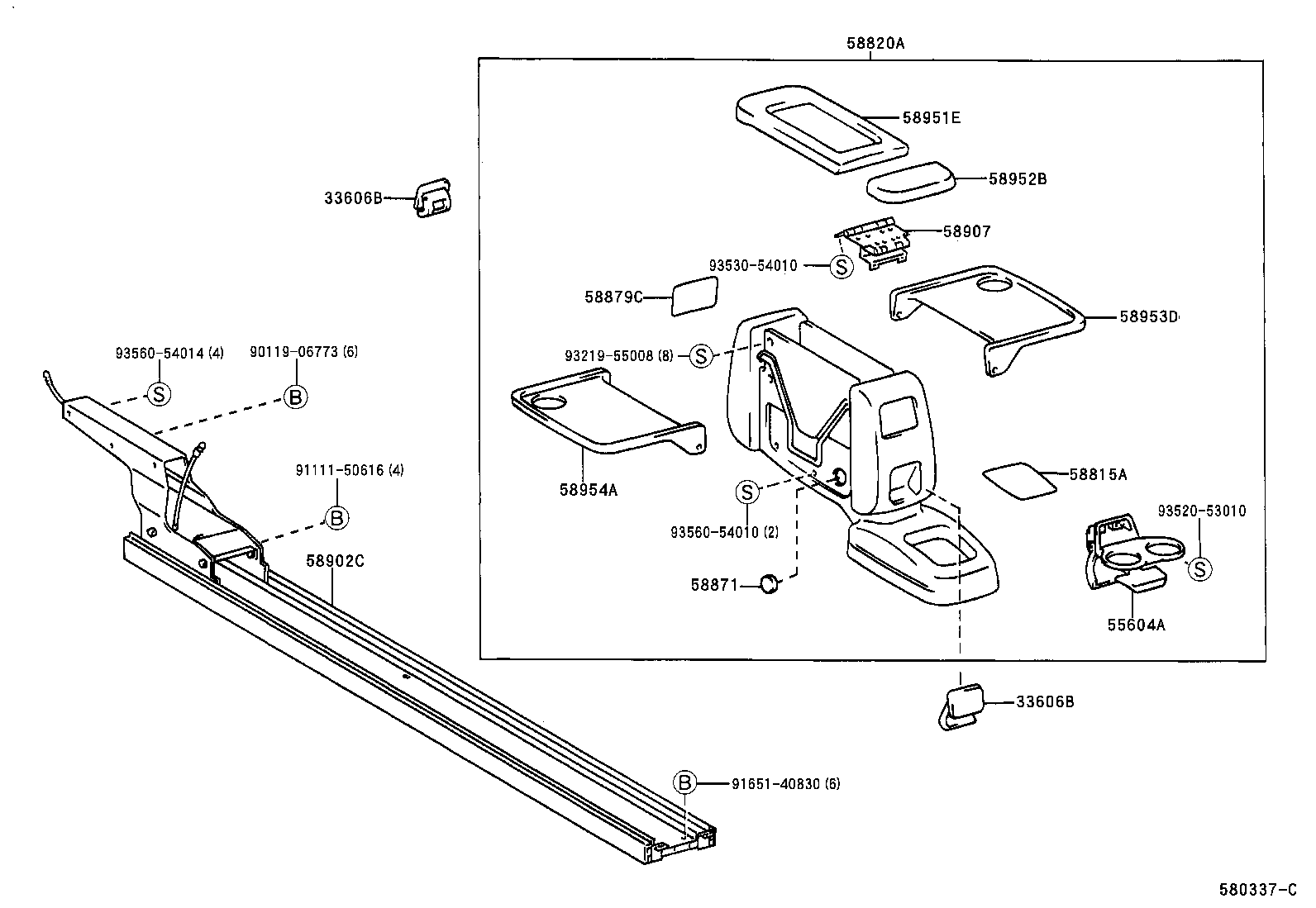

ｼﾔﾄﾙｺﾝｿ-ﾙBOX

Part #	Description	Period	Qty
33606B - LEVER SUB-ASSY, WIRE PULL
33606-26010G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	2
33606B - LEVER SUB-ASSY, WIRE PULL
33606-26010G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	2
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-35030G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	1
58815A - CARPET, CONSOLE BOX
58815-26040G0	KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#	04/1997 - 07/1999	1
58820A - BOX ASSY, CONSOLE COMPARTMENT
58820-26010G0	KCH4#,RCH41..G SAGE,TRIM6#	04/1997 - 08/1997	1
58820-26010G1	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	08/1997 - 07/1999	1
58871 - CUSHION, CONSOLE BOX
58871-26010	KCH4#,RCH41,47..4D..G	04/1997 - 07/1999	4
58879C - LABEL, CONSOLE DOOR LOCK INFORMATION
58879-26010G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-26020	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	1
58902-26030	KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙｺﾝｿｰﾙﾎﾞﾂｸｽ)	04/1997 - 07/1999	1
58902-26020	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-26020	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	2
58907-26020	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)	04/1998 - 12/2999	2
58907-26030	KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙｺﾝｿｰﾙﾎﾞﾂｸｽ)	04/1997 - 07/1999	1
58951E - LID, CONSOLE, NO.1
58951-26030G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	1
58952B - LID, CONSOLE, NO.2
58952-26020G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	1
58953D - TABLE, CONSOLE, RH
58953-26010G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	1
58954A - TABLE, CONSOLE, LH
58954-26010G0	KCH4#,RCH41,47..4D..G SAGE,TRIM6#	04/1997 - 07/1999	1
Common parts
90119-06773
91111-50616
91651-40830
93219-55008
93520-53010
93530-54010
93560-54010
93560-54014

RCH41W-GFSQK (1997)

(9704- )

(9704- )KCH4#,RCH41,47..4D..G,STD,V,WINT,WISTD

(9704- )4D..G07S,W07S
