RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

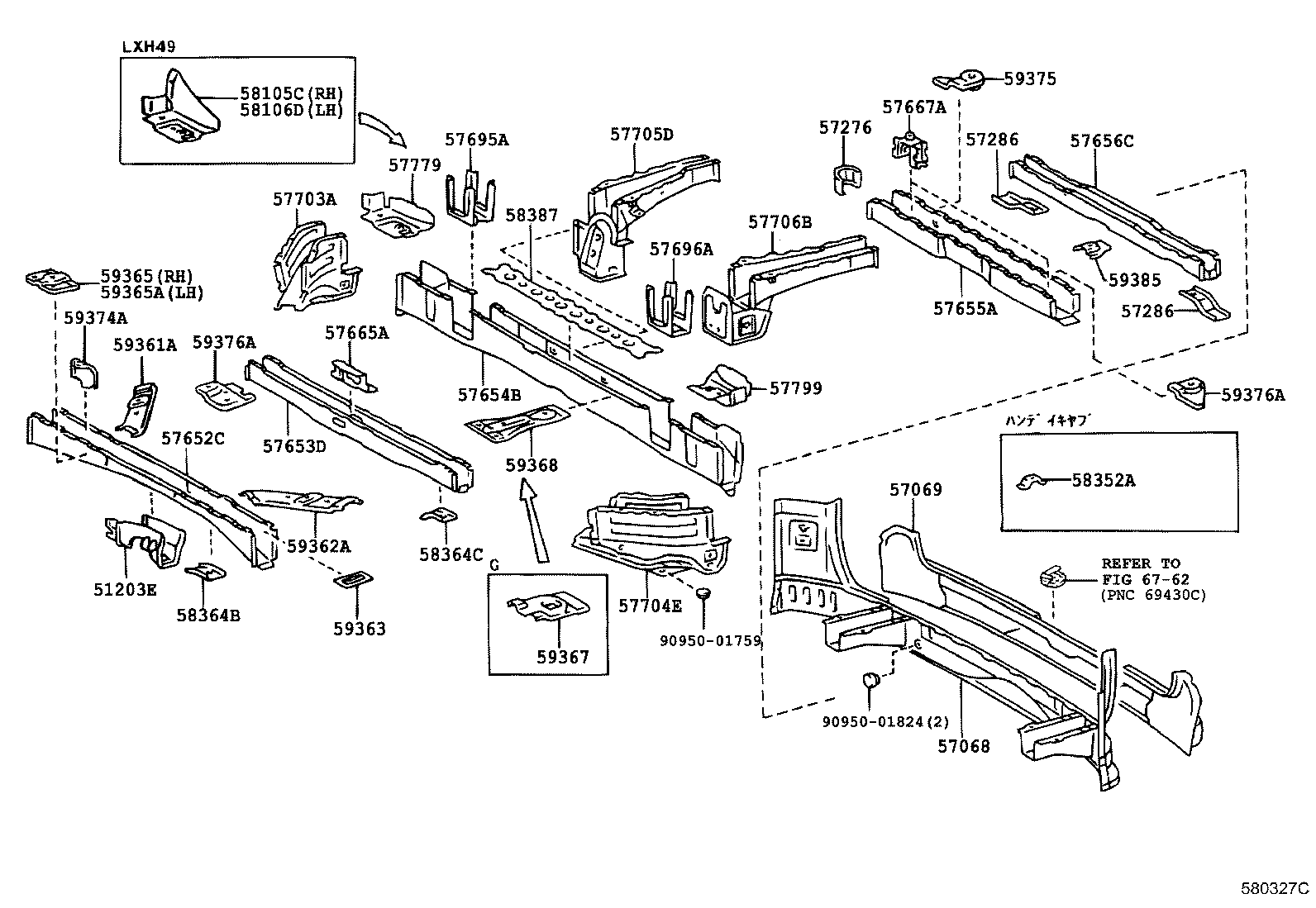

ILLUST NO. 1 OF 3(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51203E - BRACKET SUB-ASSY, CENTER BEARING SUPPORT | ||||
| 51203-26150 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-26110 |
KCH4#,RCH41,47 |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26060 |
KCH4#,LXH4#,RCH4#..E,G,STD,V,WISTD |
1 | ||
| 57276 - GUSSET, REAR FLOOR CROSSMEMBER, NO.4 | ||||
| 57276-26010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 57286 - GUSSET, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57286-26020 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 57286 - GUSSET, REAR FLOOR CROSSMEMBER, NO.5 | ||||
| 57286-26020 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-26050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-26120 |
KCH40,LXH43,RCH41,42 |
1 | ||
| 57655A - MEMBER, REAR FLOOR CROSS, NO.4 | ||||
| 57655-26040 |
KCH40,LXH43,RCH41,42 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 57665A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 | ||||
| 57665-26050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 57667A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4 | ||||
| 57084-26020 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 57695A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | ||||
| 57695-26010 |
KCH40,LXH43,RCH41,42 |
1 | ||
| 57696A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | ||||
| 57696-26010 |
KCH40,LXH43,RCH41,42 |
1 | ||
| 57703A - BRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT RH | ||||
| 57703-26030 |
KCH40,LXH43,RCH41,42 |
1 | ||
| 57704E - BRACKET SUB-ASSY, REAR SUSPENSION ARM, FRONT LH | ||||
| 57704-26030 |
KCH40,LXH43,RCH41,42 |
1 | ||
| 57705D - BRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR RH | ||||
| 57705-26050 |
KCH40,LXH43,RCH41,42 |
1 | ||
| 57706B - BRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR LH | ||||
| 57706-26030 |
KCH40,LXH43,RCH41,42 |
1 | ||
| 57779 - RETAINER, UPPER CONTROL LINK, UPPER | ||||
| 57779-26040 |
KCH4#,LXH43,RCH4# |
1 | ||
| 57799 - GUSSET, REAR FLOOR CROSSMEMBER | ||||
| 57799-26010 |
KCH4#,LXH43,RCH4# |
1 | ||
| 58364B - BRACKET, FUEL TANK SUPPORT | ||||
| 58364-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 58364C - BRACKET, FUEL TANK SUPPORT | ||||
| 58364-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-26060 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 59363 - RETAINER, REAR SEAT, NO.1 C | ||||
| 59363-26040 |
KCH4#,RCH41,47..E,STD,V |
2 | ||
| 59365 - RETAINER, REAR SEAT, NO.2 A | ||||
| 59365-26030 |
KCH4#,RCH41,47..G,WINT |
1 | ||
| 59365A - RETEINER, REAR SEAT, NO.2 | ||||
| 59365-26030 |
KCH4#,RCH41..4D..G |
1 | ||
| 59368 - RETAINER, REAR SEAT, NO.2 D | ||||
| 59368-26050 |
LXH4#..STD;KCH4#,RCH4#..G,STD,V,WINT,WISTD |
2 | ||
| Common parts | ||||
| 90950-01759 | ||||
| 90950-01824 | ||||
| Linked diagrams | ||||
| 6762 | ||||

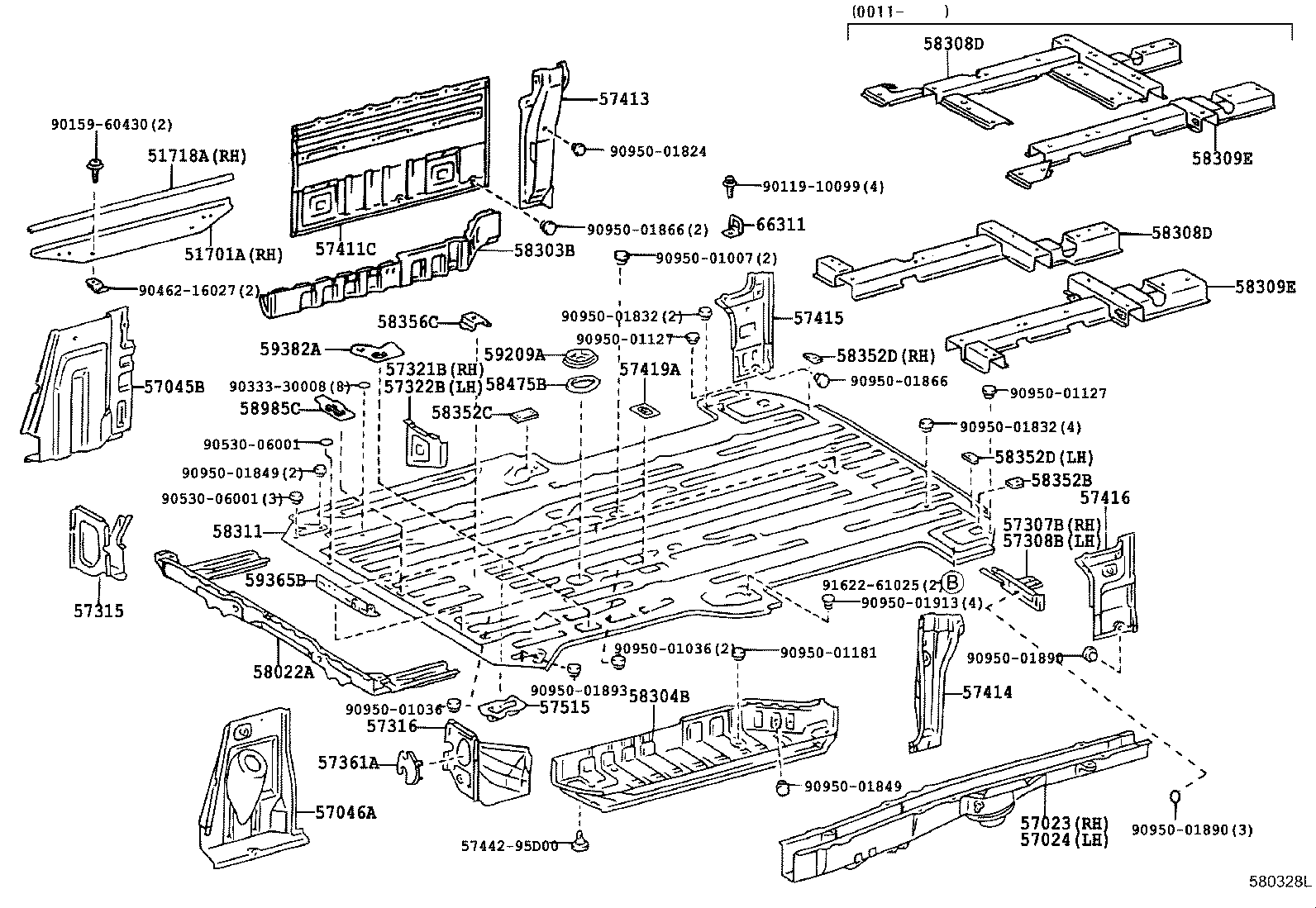

ILLUST NO. 2 OF 3(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26370 |
KCH40,RCH41 |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26360 |
KCH40,RCH41 |
1 | ||
| 57045B - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-26040 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26050 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57307-26020 |
KCH4#,RCH41,47 |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-26020 |
KCH4#,RCH41,47 |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57303-26030 |
LXH49..4D;KCH4#,LXH43,RCH4# |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57304-26080 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 57304-26020 |
KCH4#,LXH43,RCH4# |
1 | ||
| 57304-26080 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 57321B - OUTRIGGER, NO.5, RH | ||||
| 57322-26010 |
KCH4#,LXH4#,RCH41,47..4D |
1 | ||
| 57322B - OUTRIGGER, NO.5, LH | ||||
| 57322-26010 |
KCH4#,LXH4#,RCH41,47..4D |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57361-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 57411C - RAIL, SUB-ASSY, FLOOR SIDE, INNER FRONT RH | ||||
| 57403-26010 |
RCH47..4D;KCH4#,RCH41..4D..(G,STD) ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ) |
1 | ||
| 57403-26010 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾃﾚﾋﾞ & ﾋﾞﾃﾞｵ) |
1 | ||
| 57411-26020 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-26350 |
LXH4#..4D;KCH4#,RCH41,47..E,STD,WINT;KCH4#,RCH41..4D..(G07S,W07S) ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-26290 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-26120 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-26120 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-26050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-26160 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 58022-26140 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-26180 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 57402-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ & ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 57402-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ & ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 58304-26180 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 58304-26100 |
KCH4#,RCH41,47 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-2F540 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ & ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 58311-2F420 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 58311-2F470 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ-) |
1 | ||
| 58311-2F500 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 58311-2F380 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58475B - PACKING, INSPECTION HOLE COVER | ||||
| 58475-95J00 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 58985C - RETAINER, CONSOLE BOX | ||||
| 58097-26010 |
KCH4#,RCH41,47..4D..G |
3 | ||
| 59209A - COVER SUB-ASSY, INSPECTION HOLE | ||||
| 59209-95J00 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 57442-95D00 | ||||
| 90119-10099 | ||||
| 90159-60430 | ||||
| 90333-30008 | ||||
| 90462-16027 | ||||
| 90530-06001 | ||||
| 90950-01007 | ||||
| 90950-01036 | ||||
| 90950-01127 | ||||
| 90950-01181 | ||||
| 90950-01824 | ||||
| 90950-01832 | ||||
| 90950-01849 | ||||
| 90950-01866 | ||||
| 90950-01890 | ||||
| 90950-01893 | ||||
| 90950-01913 | ||||
| 91622-61025 | ||||

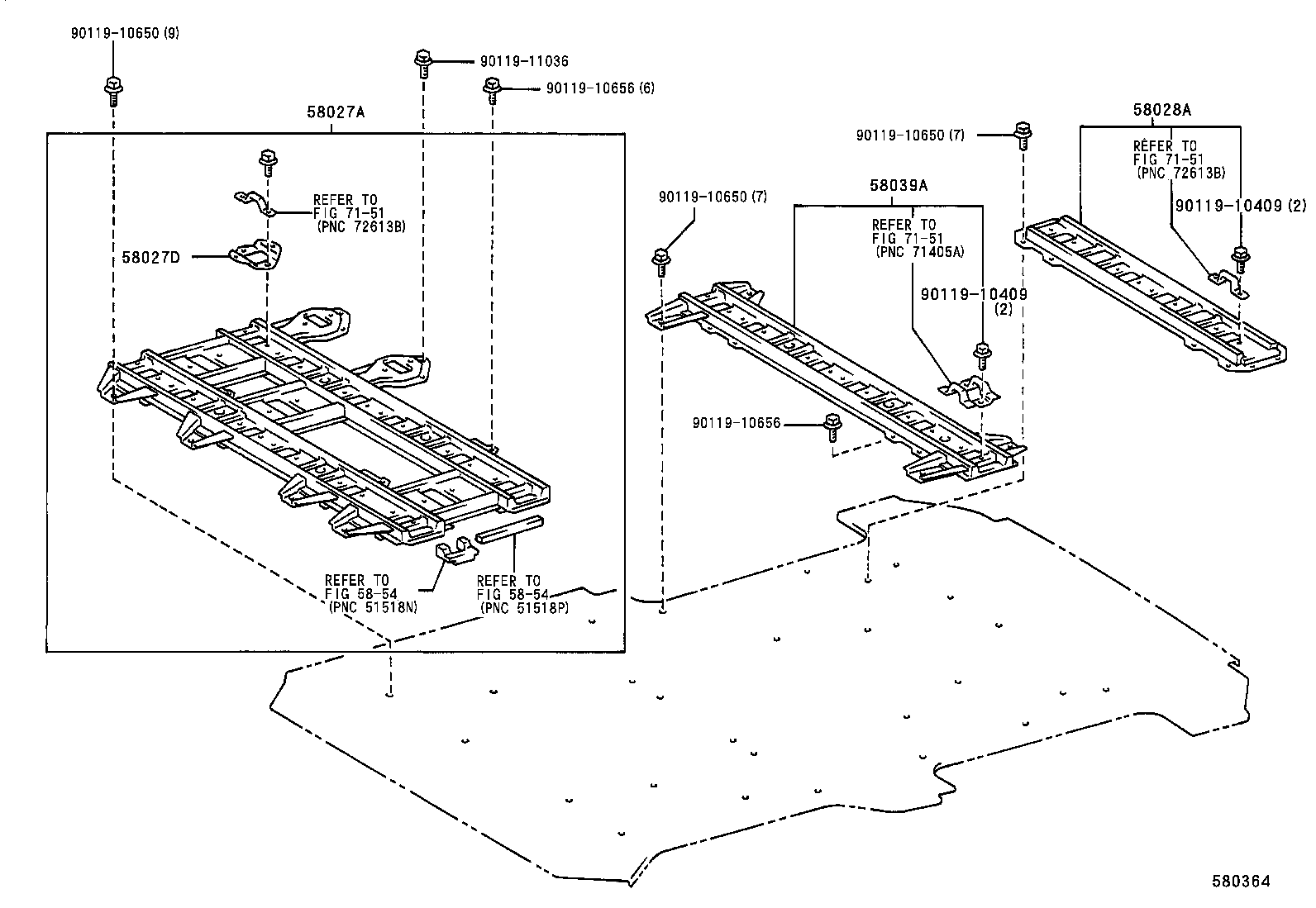

ILLUST NO. 3 OF 3(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10650 | ||||
| 90119-10656 | ||||
| 90119-11036 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7151 | ||||
