RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

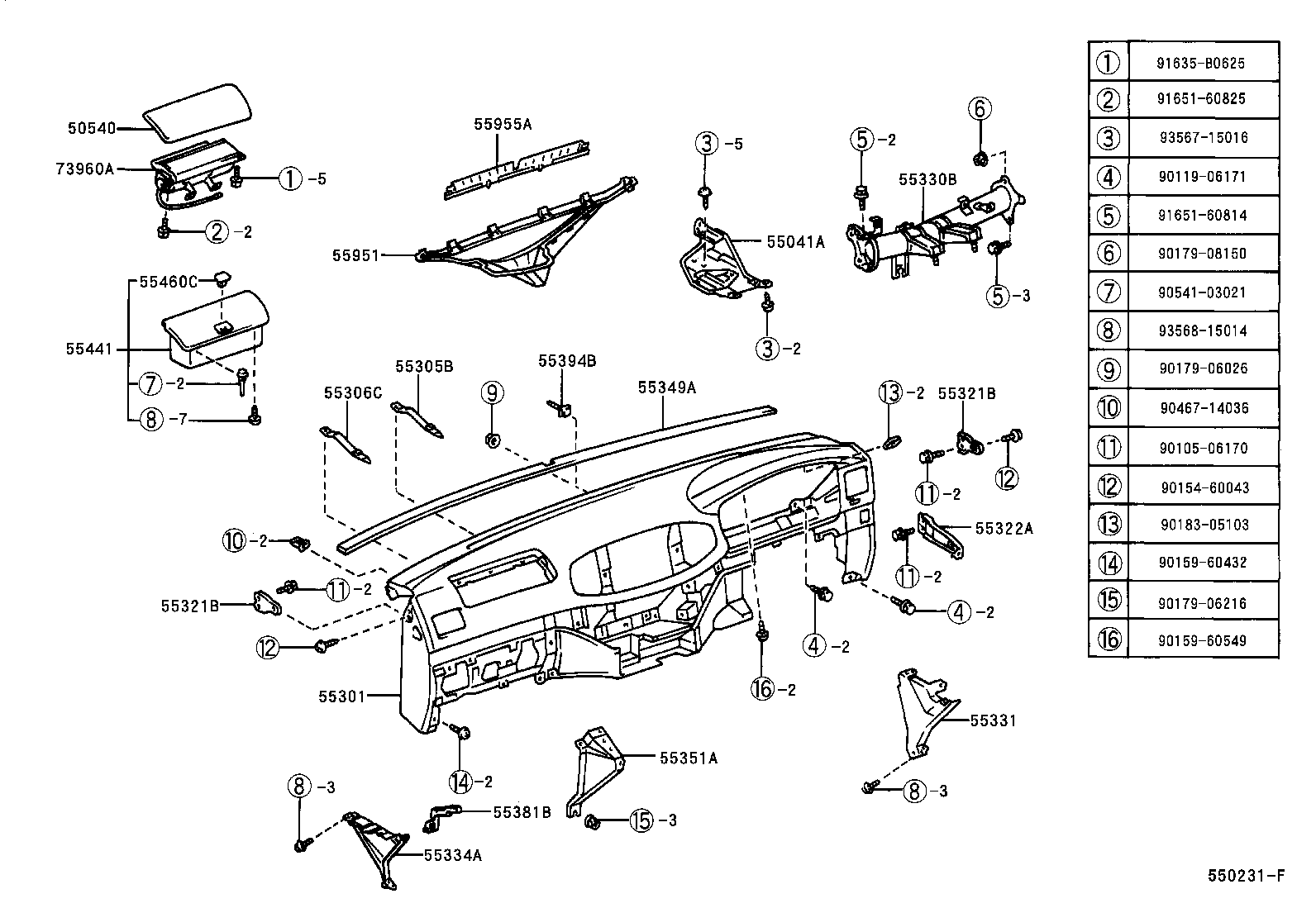

ILLUST NO. 1 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-26050B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 50540-26050G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 50540-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 50540-26050G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 50540-26050B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 55041A - BRACKET SUB-ASSY, AIR BAG PASSENGER MOUNTING | ||||
| 55041-26021 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55300-26060G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｺﾝﾗｲﾄ),DK.SAGE,TRIM6# |
1 | ||
| 55300-26051B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 55300-26061G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ｱﾘ(ｺﾝﾗｲﾄ),DK.SAGE,TRIM6# |
1 | ||
| 55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55305-26090 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55306C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55306-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-26020 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 55321B - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-26020 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-26110 |
KCH4#,LXH4#,RCH41,47..ATM |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55331-26080 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55334A - REINFORCEMENT, INSTRUMENT PANEL, UPPER | ||||
| 55334-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55351A - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55351-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55955A - PLATE, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55955-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 73960-26041 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 90105-06170 | ||||
| 90119-06171 | ||||
| 90154-60043 | ||||
| 90159-60432 | ||||
| 90159-60549 | ||||
| 90179-06026 | ||||
| 90179-06216 | ||||
| 90179-08150 | ||||
| 90183-05103 | ||||
| 90467-14036 | ||||
| 90541-03021 | ||||
| 91635-B0625 | ||||
| 91651-60814 | ||||
| 91651-60825 | ||||
| 93567-15016 | ||||
| 93568-15014 | ||||

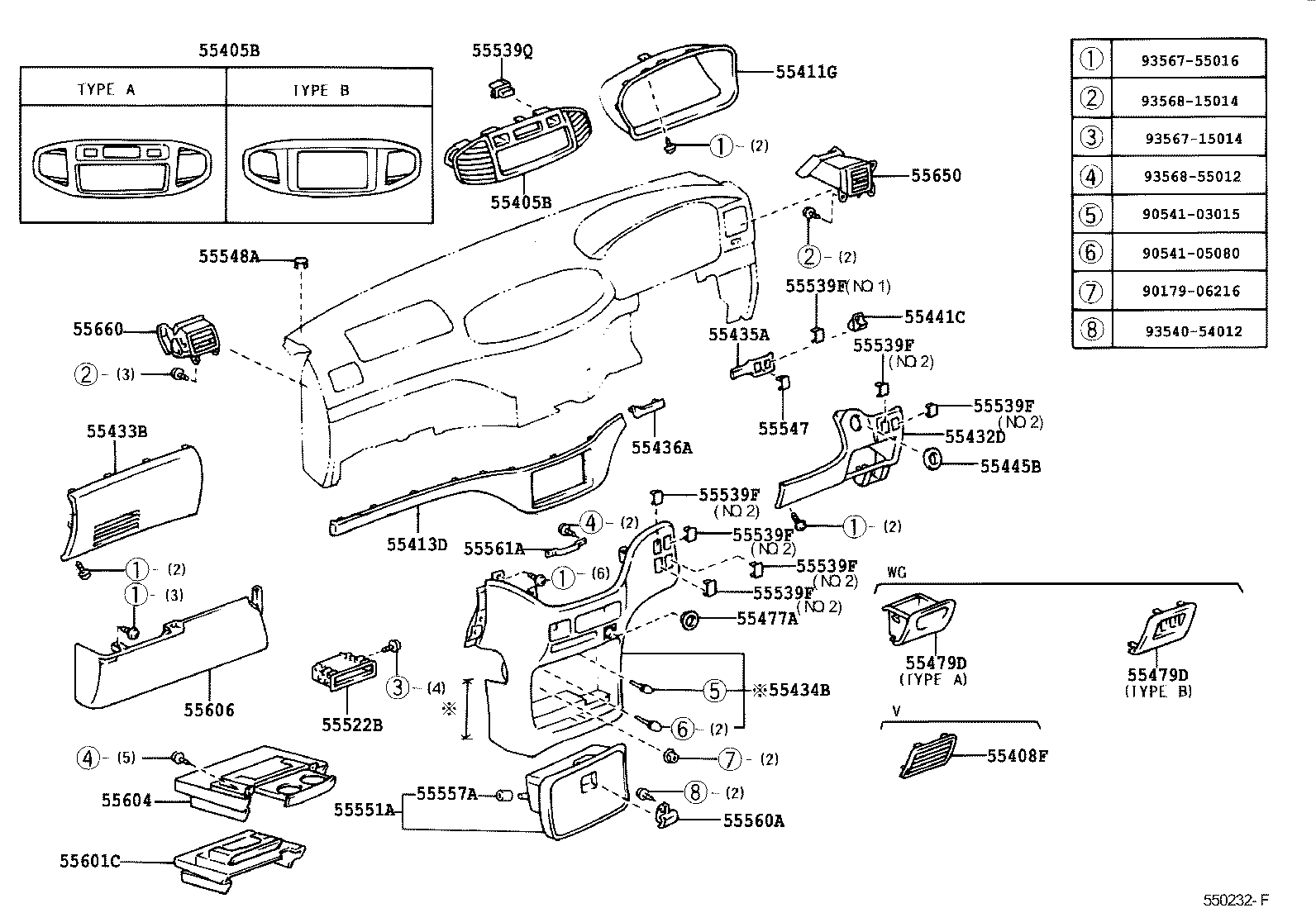

ILLUST NO. 2 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-26070G0 |
KCH4#,RCH41,47..G,STD TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 55405-26040G0 |
KCH4#,RCH41,47..G,STD TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 55405-26040B0 |
LXH4#;RCH42..MTM;KCH4#,RCH41,47..E,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-26070G0 |
KCH4#,RCH41,47..G,STD TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 55405-26040G0 |
KCH4#,RCH41,47..G,STD TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.SAGE,TRIM6# |
1 | ||
| 55405-26040B0 |
LXH4#;RCH42..MTM;KCH4#,RCH41,47..E,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLUISH GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55404-26310C0 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
1 | ||
| 55404-26310C0 |
LXH4#..G;KCH4#,RCH41,47..E,WINT,WISTD BLACK,TRIM1# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-26050 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾓｸﾒ |
1 | ||
| 55413-26040 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-26060G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 55432-26060B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-26060G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 55433-26060B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55045-26040G0 |
KCH4#,RCH41,47..4D..(G,STD) H=170,SAGE,TRIM6# |
1 | ||
| 55045-26050G0 |
KCH4#,RCH41,47..G,STD H=130,SAGE,TRIM6# |
1 | ||
| 55045-26040B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD H=170,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-26010 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 55435-26020 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾓｸﾒ |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-26020 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾓｸﾒ |
1 | ||
| 55436-26010B0 |
LXH4#;KCH4#,RCH4#..E,STD BLUISH GRAY,TRIM1# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140C0 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
1 | ||
| 55441-20140C0 |
LXH4#..G;KCH4#,RCH41,47..E,WINT,WISTD BLACK,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-95D00 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-20110 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-26010G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-26010G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55521-16030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2),LT.BLUISH GRAY,TRIM10 |
1 | ||
| 55539-32010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1),BLUISH GRAY,TRIM1# |
1 | ||
| 55539-32010G2 |
KCH4#,RCH41,47..G,STD SAGE,TRIM60 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2),LT.BLUISH GRAY,TRIM10 |
1 | ||
| 55539-32010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1),BLUISH GRAY,TRIM1# |
1 | ||
| 55539-32010G2 |
KCH4#,RCH41,47..G,STD SAGE,TRIM60 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2),LT.BLUISH GRAY,TRIM10 |
1 | ||
| 55539-32010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1),BLUISH GRAY,TRIM1# |
1 | ||
| 55539-32010G2 |
KCH4#,RCH41,47..G,STD SAGE,TRIM60 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2),LT.BLUISH GRAY,TRIM10 |
1 | ||
| 55539-32010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1),BLUISH GRAY,TRIM1# |
1 | ||
| 55539-32010G2 |
KCH4#,RCH41,47..G,STD SAGE,TRIM60 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2),LT.BLUISH GRAY,TRIM10 |
1 | ||
| 55539-32010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1),BLUISH GRAY,TRIM1# |
1 | ||
| 55539-32010G2 |
KCH4#,RCH41,47..G,STD SAGE,TRIM60 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2),LT.BLUISH GRAY,TRIM10 |
1 | ||
| 55539-32010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1),BLUISH GRAY,TRIM1# |
1 | ||
| 55539-32010G2 |
KCH4#,RCH41,47..G,STD SAGE,TRIM60 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B4 |
LXH4#;KCH4#,RCH4#..E,STD,WINT LOWER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.2),LT.BLUISH GRAY,TRIM10 |
1 | ||
| 55539-32010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT UPPER(ｲﾗｽﾄ ｻﾝｼﾖｳ NO.1),BLUISH GRAY,TRIM1# |
1 | ||
| 55539-32010G2 |
KCH4#,RCH41,47..G,STD SAGE,TRIM60 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-26010B0 |
LXH4#;KCH4#,RCH4#..E,STD BLUISH GRAY,TRIM1# |
1 | ||
| 55548-26010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-26030B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55551-26030G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-16010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-26020G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 55560-26020B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55604 - PANEL SUB-ASSY, UNDER TRAY, INNER | ||||
| 55604-26050G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
1 | ||
| 55604-26050B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-26050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-26040G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 55650-26040B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-26040B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 55660-26040G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90179-06216 | ||||
| 90541-03015 | ||||
| 90541-05080 | ||||
| 93540-54012 | ||||
| 93567-15014 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||
| 93568-55012 | ||||
