RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace
Production
Apr 1997
-
Jul 1999
Engine
3RZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

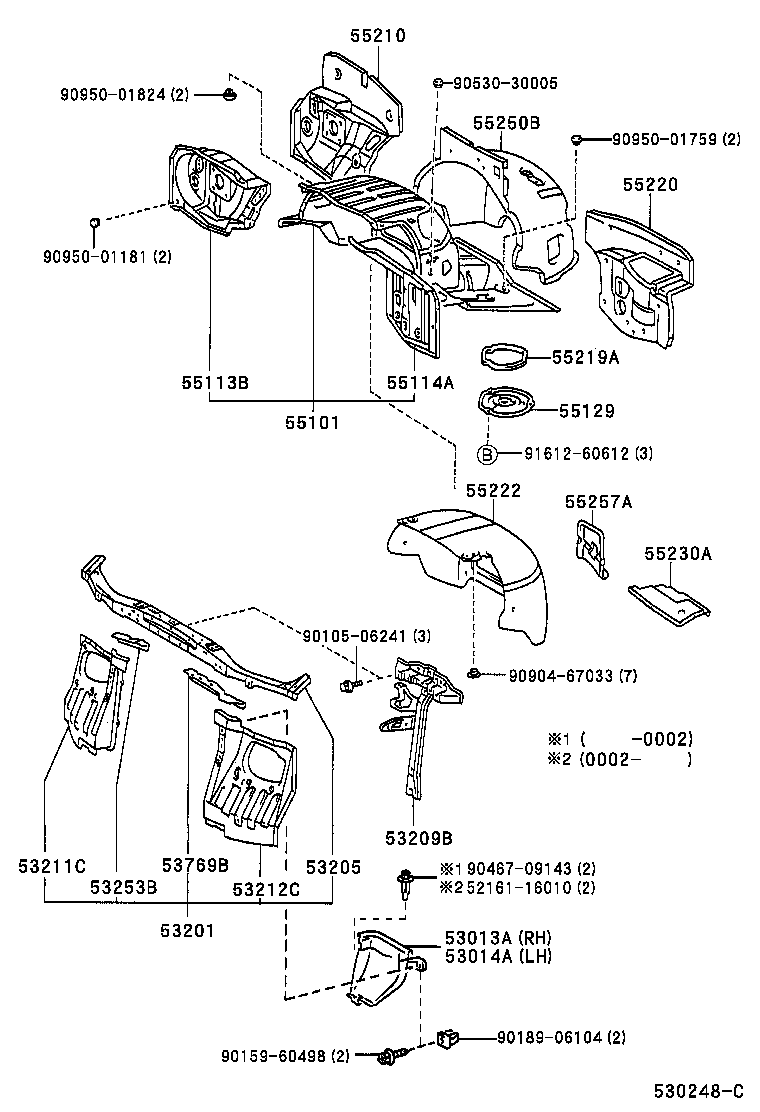

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53201-26021 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-26041 |
KCH4#,LXH4#,RCH4#..E,G,STD |
1 | ||
| 53209-26040 |
KCH4#,LXH4#,RCH4#..E,G,STD |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53211-26051 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53211-26050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53212-26050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53212-26051 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53253B - BRACKET, RADIATOR MOUNTING, UPPER | ||||
| 53253-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 53769B - BRACKET, POWER STEERING RESERVOIR TANK MOUNTING | ||||
| 53769-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55110-26480 |
KCH40,RCH41 |
1 | ||
| 55113B - PANEL SUB-ASSY, DASH SIDE, RH | ||||
| 55017-26020 |
KCH4#,RCH41,47 |
1 | ||
| 55114A - PANEL SUB-ASSY, DASH SIDE, LH | ||||
| 55018-26070 |
KCH4#,RCH41,47 |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-26051 |
KCH4#,RCH41,47 |
1 | ||
| 55210-26050 |
KCH4#,RCH41,47 |
1 | ||
| 55219A - PACKING, DASH PANEL HOLE COVER | ||||
| 55219-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55220 - INSULATOR ASSY, DASH PANEL, NO.2 | ||||
| 55220-26040 |
KCH4#,RCH41,47 |
1 | ||
| 55220-26041 |
KCH4#,RCH41,47 |
1 | ||
| 55222 - INSULATOR, DASH PANEL, OUTER CENTER | ||||
| 55222-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 55230A - INSULATOR ASSY, DASH PANEL, NO.4 | ||||
| 55230-26010 |
KCH4#,RCH41,47 |
1 | ||
| 55250B - INSULATOR ASSY, DUSH PANEL, NO.3 | ||||
| 55250-26040 |
KCH4#,RCH41,47 |
1 | ||
| 55250-26041 |
KCH4#,RCH41,47 |
1 | ||
| 55257A - COVER, DASH PANEL OPENING | ||||
| 55257-26010 |
KCH4#,RCH41,47 |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90105-06241 | ||||
| 90159-60498 | ||||
| 90189-06104 | ||||
| 90467-09143 | ||||
| 90530-30005 | ||||
| 90904-67033 | ||||
| 90950-01181 | ||||
| 90950-01759 | ||||
| 90950-01824 | ||||
| 91612-60612 | ||||
