RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907)E,G,STD ; (9907- )

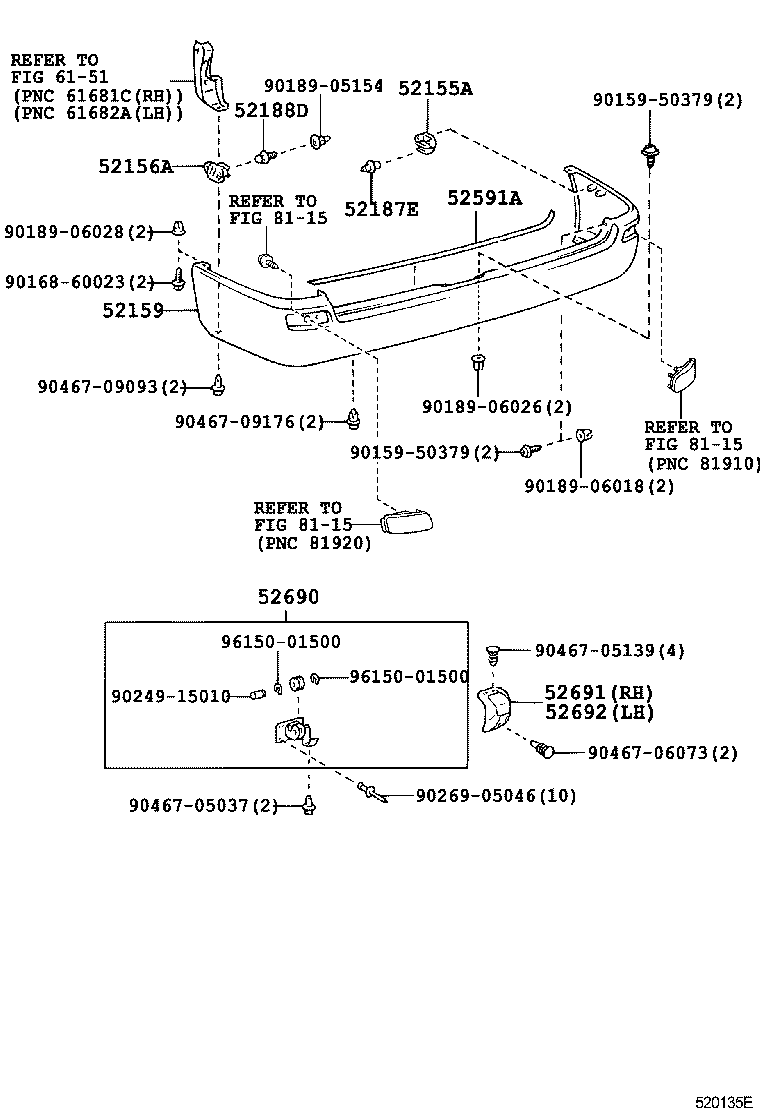

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52187E 52188D 52591A 52690 52691 52692 6151 8115 8115 8115 9015950379 9015950379 9016860023 9018905154 9018906018 9018906026 9018906028 9024915010 9026905046 9046705037 9046705139 9046706073 9046709093 9046709176 9615001500 9615001500
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-26010

KCH4#,LXH4#,RCH4#..E,G,STD

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-26010

KCH4#,LXH4#,RCH4#..E,G,STD

 1
52159 - COVER, REAR BUMPER
52159-26160B1

KCH4#,RCH41,47..G,STD

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BL.GRAY ME,2DK

 1
52159-26160B2

KCH4#,RCH41,47..G,STD

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME,2EB

 1
52159-26170B1

KCH4#,RCH41,47..G,STD

BL.GRAY ME,2DK

 1
52159-26160G0

KCH4#,RCH41..G

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH BREEN M,2DJ

 1
52159-26170G1

KCH4#,RCH41,47..G,STD

GRAYISH BREEN M,2DJ ,2EV

 1
52159-26170B2

KCH4#,RCH41,47..G,STD

SILVER ME,2EB

 1
52159-26160G0

KCH4#,RCH41,47..G,STD

ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH BREEN M,2DJ ,2EV

 1
52159-26170G0

LXH4#..G;KCH4#,RCH41,47..E,STD

LT GREEN M,6L5

 1
52159-26170G1

KCH4#,RCH41..G

GRAYISH BREEN M,2DJ

 1
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-16070

KCH4#,LXH4#,RCH4#

 1
52188D - GUIDE, REAR BUMPER LOCATION, LH
52187-26020

KCH4#,LXH4#,RCH4#

 1
52591A - SEAL, REAR BUMPER
52591-26010

LXH4#..G;KCH4#,RCH41,47

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90159-50379
90168-60023
90189-05154
90189-06018
90189-06026
90189-06028
90249-15010
90269-05046
90467-05037
90467-05139
90467-06073
90467-09093
90467-09176
96150-01500
Linked diagrams
6151
8115
