RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

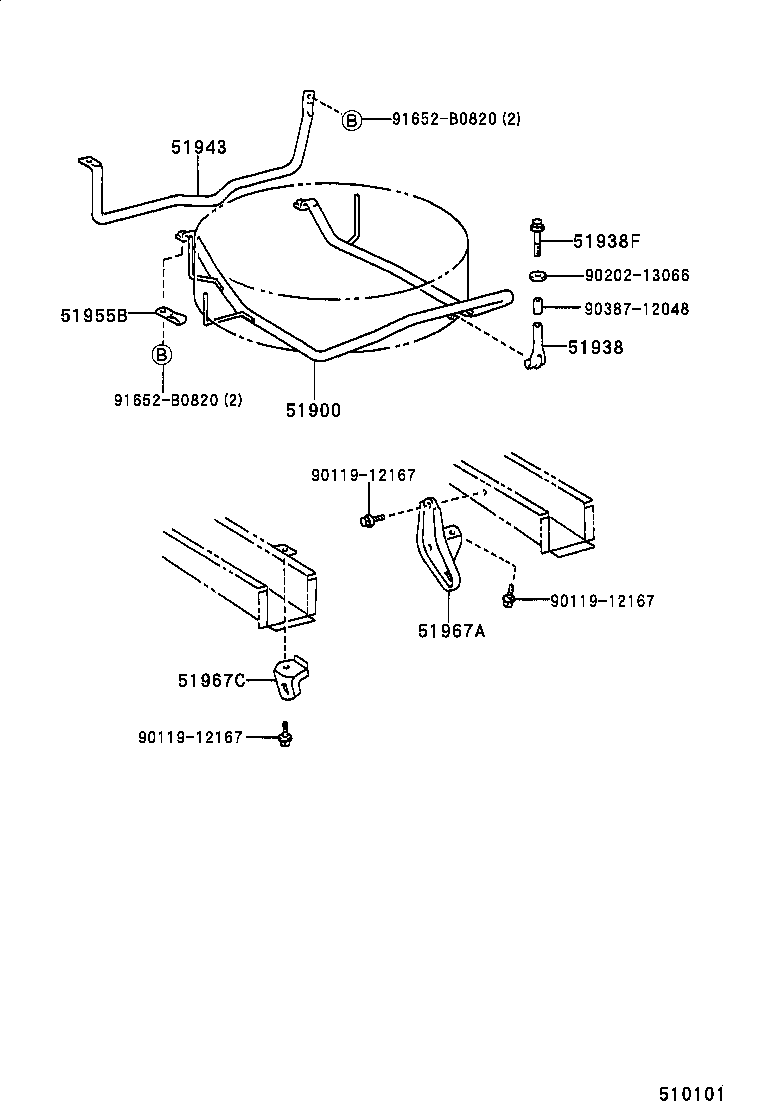

Click highlighted areas on diagram

diagram 51900 51938 51938F 51943 51955B 51967A 51967C 9011912167 9011912167 9011912167 9020213066 9038712048 91652B0820 91652B0820
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51903-26610

KCH40,LXH49,RCH41

 1
51938 - LOCK, SPARE WHEEL CARRIER
51938-28030

KCH4#,LXH4#,RCH4#

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
90119-12293

KCH4#,LXH4#,RCH4#

 1
51943 - BRACKET, SPARE WHEEL CARRIER, NO.1
51943-26240

KCH4#,LXH4#,RCH4#

 1
51955B - HINGE, SPARE WHEEL CARRIER, NO.1
51955-26050

KCH4#,LXH4#,RCH4#

 2
51967A - HOOK SUB-ASSY, REAR
51095-26020

KCH4#,LXH4#,RCH4#

 1
51967C - HOOK, TRANSPORT, REAR
51967-26020

KCH4#,LXH4#,RCH4#

 1
Common parts
90119-12167
90202-13066
90387-12048
91652-B0820
