RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )KCH40,LXH43,RCH41,42

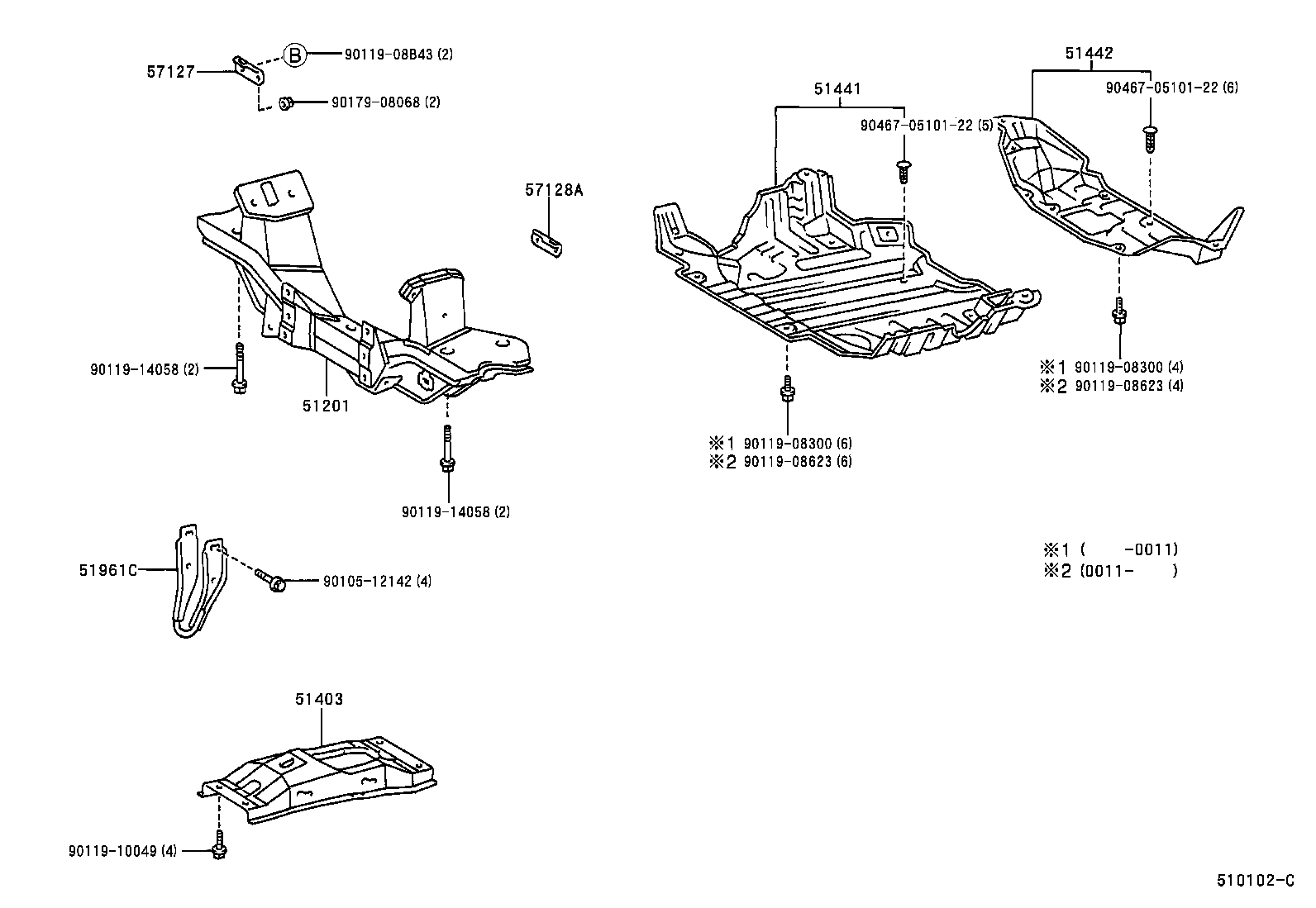

Click highlighted areas on diagram

diagram 51201 51403 51441 51442 51961C 57127 57128A 9010512142 9011908300 9011908300 9011908623 9011908623 9011908B43 9011910049 9011914058 9011914058 9017908068 904670510122 904670510122
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-26170

RCH41,42

 1
51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-26060

LXH43,RCH41,42

 1
51403-26100

RCH41

 1
51441 - COVER, ENGINE UNDER, NO.1
51405-26080

KCH40,LXH43,RCH41,42

 1
51961C - HOOK, FRONT
51961-26130

KCH4#,LXH4#,RCH4#

 1
57127 - PLATE, FRONT SUSPENSION MEMBER MOUNTING, RH
57127-26030

KCH40,LXH43,RCH41,42

 1
57128A - PLATE, FRONT SUSPENSION MEMBER MOUNTING, LH
57128-26020

KCH40,LXH43,RCH41,42

 1
Common parts
90105-12142
90119-08300
90119-08623
90119-08B43
90119-10049
90119-14058
90179-08068
90467-0510122
