RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )KCH40,LXH43,RCH41,42

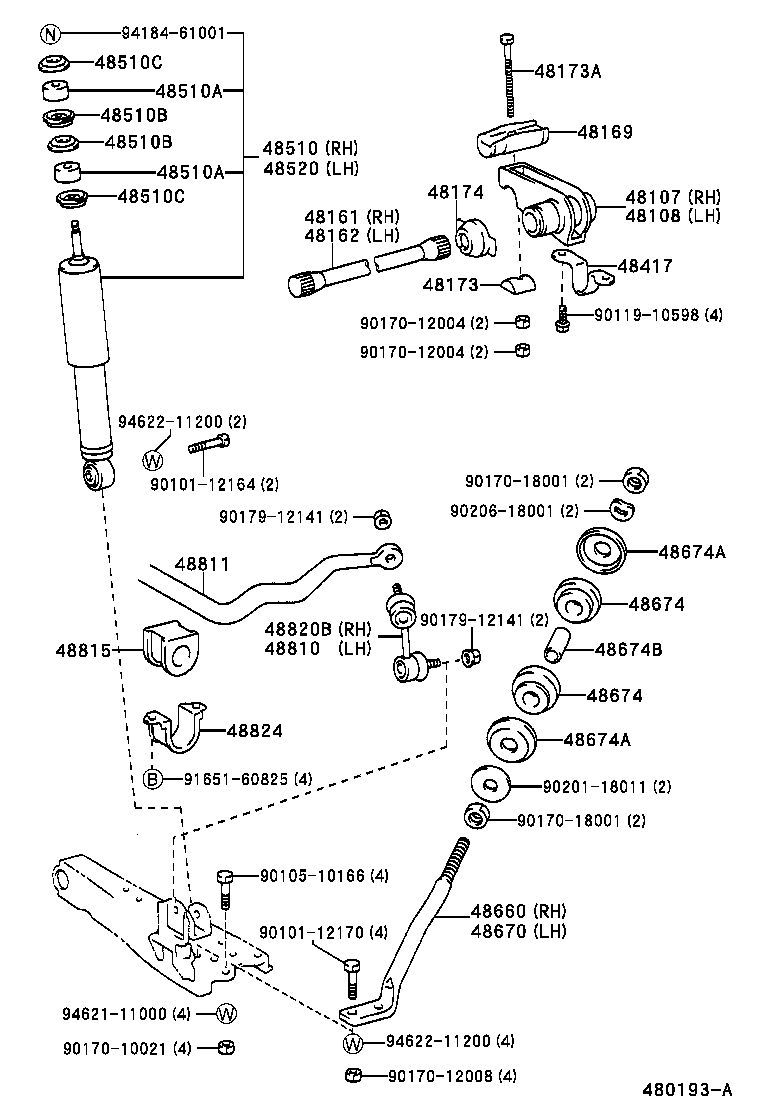

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169 48173 48173A 48174 48417 48510 48510A 48510A 48510B 48510B 48510C 48510C 48520 48660 48670 48674 48674 48674A 48674A 48674B 48810 48811 48815 48820B 48824 9010112164 9010112170 9010510166 9011910598 9017010021 9017012004 9017012004 9017012008 9017018001 9017018001 9017912141 9017912141 9020118011 9020618001 9165160825 9418461001 9462111000 9462211200 9462211200
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-26080

KCH4#,LXH4#,RCH4#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-26080

KCH40,LXH43,RCH41,42

 1
48161 - SPRING, TORSION BAR, RH
48161-26300

RCH41..4D;LXH43,RCH42

 1
48162 - SPRING, TORSION BAR, LH
48162-26300

RCH41..4D;LXH43,RCH42

 1
48169 - SWIVEL, ANCHOR ARM
48169-26060

KCH4#,LXH4#,RCH4#

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-27010

KCH4#,LXH4#,RCH4#

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12165

KCH4#,LXH4#,RCH4#

 2
48174 - COVER, TORSION BAR DUST
48174-26010

KCH4#,LXH4#,RCH4#

 2
48417 - BRACKET, SPRING
48417-26030

KCH4#,LXH4#,RCH4#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-80044

KCH40,RCH41

ﾏｰｸ 48511−26460

 1
48511-80054

KCH40,RCH41

ﾏｰｸ 48511−26490

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

KCH4#,LXH4#,RCH4#

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01031

KCH4#,LXH4#,RCH4#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

KCH4#,LXH4#,RCH4#

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02017

KCH4#,LXH4#,RCH4#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

KCH4#,LXH4#,RCH4#

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02002

KCH4#,LXH4#,RCH4#

 4
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-80054

KCH40,RCH41

ﾏｰｸ 48511−26490

 1
48511-80044

KCH40,RCH41

ﾏｰｸ 48511−26460

 1
48660 - BAR ASSY, STRUT, RH
48661-26040

KCH40,LXH43,RCH41,42

 1
48670 - BAR ASSY, STRUT, LH
48661-26040

KCH40,LXH43,RCH41,42

 1
48674 - CUSHION, STRUT BAR
48674-26021

KCH40,LXH43,RCH41,42

 4
48674 - CUSHION, STRUT BAR
48674-26021

KCH40,LXH43,RCH41,42

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02062

KCH40,LXH43,RCH41,42

 4
48674A - RETAINER, CUSHION(FOR STRUT BAR CUSHION)
90948-02062

KCH40,LXH43,RCH41,42

 4
48674B - COLLAR(FOR STRUT BAR CUSHION)
90387-18005

KCH40,LXH43,RCH41,42

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-26020

KCH40,LXH43,RCH41,42

 1
48811 - BAR, STABILIZER, FRONT
48811-26290

KCH40,RCH41

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-26270

KCH40,RCH41

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-26020

KCH40,LXH43,RCH41,42

 1
48824 - BRACKET, STABILIZER, FRONT
48824-26190

KCH40,LXH43,RCH41,42

 2
Common parts
90101-12164
90101-12170
90105-10166
90119-10598
90170-10021
90170-12004
90170-12008
90170-18001
90179-12141
90201-18011
90206-18001
91651-60825
94184-61001
94621-11000
94622-11200
