RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace
Production
Apr 1997
-
Jul 1999
Engine
3RZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

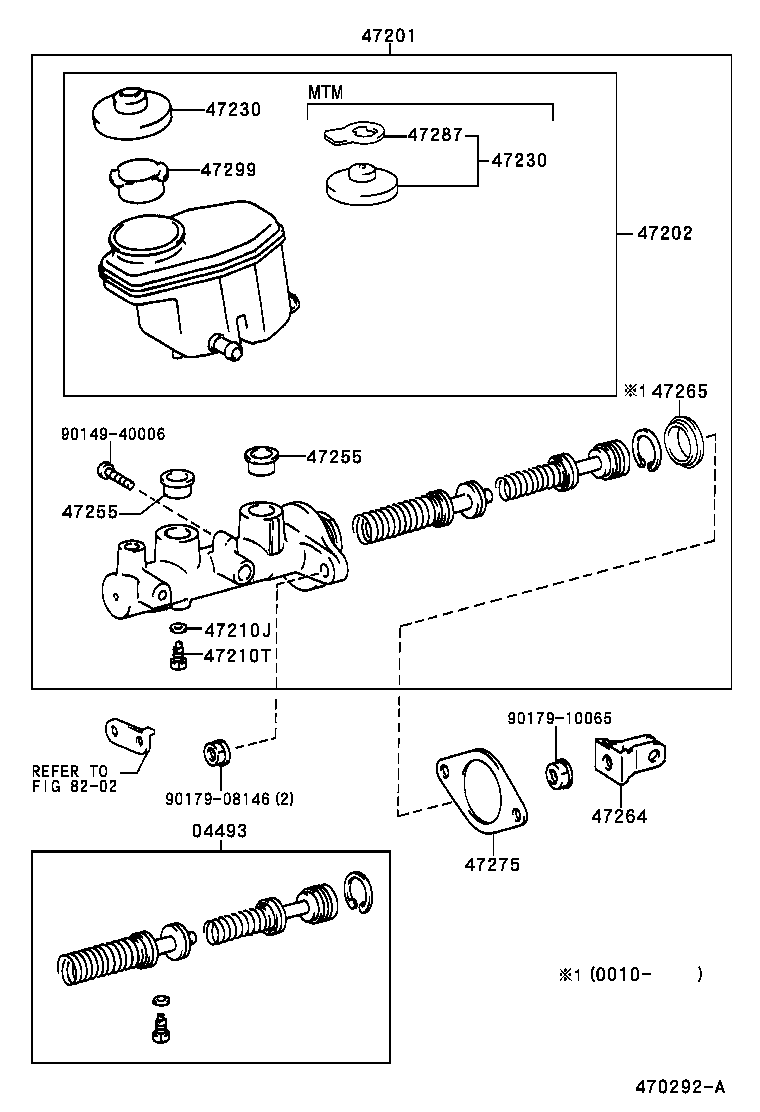

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-14160 |
KCH4#,RCH41,47 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-26680 |
KCH4#,RCH41,47 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-26250 |
KCH4#,LXH4#,RCH4#..ATM |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KCH4#,RCH4# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
KCH4#,LXH4#,RCH4#..ATM |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
KCH4#,LXH4#,RCH4#..ATM |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 8202 | ||||
