RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

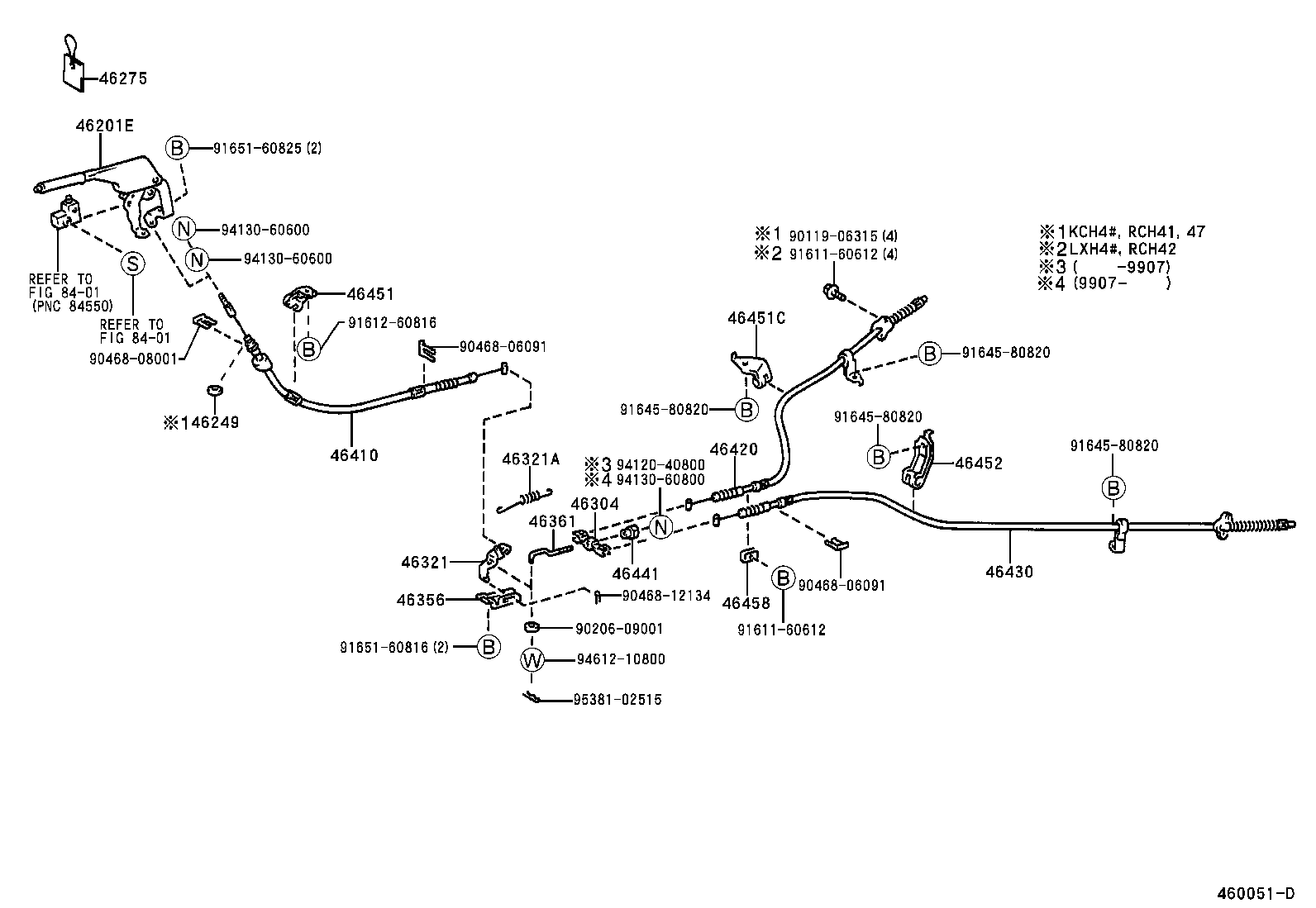

ILLUST NO. 1 OF 2(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-26091G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 46201-26090G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 46201-26060G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 46201-26092G0 |
KCH4#,RCH41,47..4D..(G,STD) ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-28010 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26030 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 46275-26031 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-28010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-26180 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-14067 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-28031 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26410 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 46410-26400 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26490 |
KCH40,RCH41 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-26340 |
KCH40,RCH41 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-26240 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-26220 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-26160 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90206-09001 | ||||
| 90468-06091 | ||||
| 90468-08001 | ||||
| 90468-12134 | ||||
| 91611-60612 | ||||
| 91612-60816 | ||||
| 91645-80820 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 94120-40800 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| 95381-02515 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9704- )KCH4#,RCH41,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-26011 |
KCH4#,RCH41,47 |
1 | ||
| 46503-26010 |
KCH4#,RCH41,47 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-26010 |
KCH4#,RCH41,47 |
1 | ||
| 46504-26011 |
KCH4#,RCH41,47 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-28010 |
KCH4#,RCH41,47 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-28010 |
KCH4#,RCH41,47 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
KCH4#,RCH41,47 |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
KCH4#,RCH41,47 |
4 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
KCH4#,RCH41,47 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
KCH4#,RCH41,47 |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09185 |
KCH4#,RCH41,47 厚さ=0.6 |
1 | ||
| 90564-09186 |
KCH4#,RCH41,47 厚さ=0.9 |
1 | ||
| 90564-09184 |
KCH4#,RCH41,47 厚さ=0.3 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-28010 |
KCH4#,RCH41,47 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-28010 |
KCH4#,RCH41,47 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
KCH4#,RCH41,47 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
KCH4#,RCH41,47 |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30010 |
KCH4#,RCH41,47 |
2 | ||
| 47447-30020 |
KCH4#,RCH41,47 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
KCH4#,RCH41,47 |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
KCH4#,RCH41,47 |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
KCH4#,RCH41,47 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
KCH4#,RCH41,47 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
KCH4#,RCH41,47 |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
KCH4#,RCH41,47 |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
KCH4#,RCH41,47 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
KCH4#,RCH41,47 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
KCH4#,RCH41,47 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-14030 |
KCH4#,RCH41,47 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-14030 |
KCH4#,RCH41,47 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
KCH4#,RCH41,47 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-28010 |
KCH4#,RCH41,47 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-28010 |
KCH4#,RCH41,47 |
1 | ||
| Common parts | ||||
| 90119-10550 | ||||
| 90179-12020 | ||||
