RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )RCH41,47

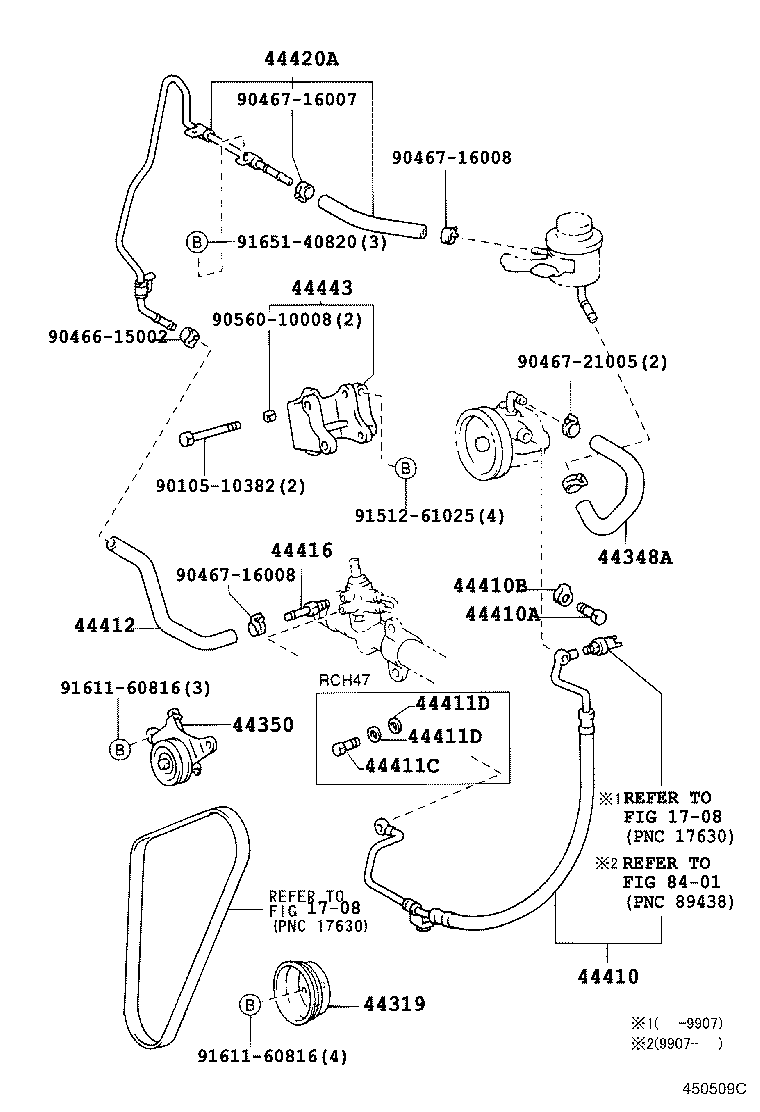

Click highlighted areas on diagram

diagram 1708 1708 44319 44348A 44350 44410 44410A 44410B 44411C 44411D 44411D 44412 44416 44420A 44443 8401 9010510382 9046615002 9046716007 9046716008 9046716008 9046721005 9056010008 9151261025 9161160816 9161160816 9165140820
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-34010

RCH41,47

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26170

RCH41,47

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-34010

RCH41,47

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26610

RCH41

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16014

KCH4#,LXH4#,RCH4#

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
44327-26020

KCH4#,LXH4#,RCH4#

 1
44412 - HOSE, RETURN
44412-26100

LXH43,RCH41,42

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26080

KCH4#,LXH4#,RCH4#

 1
44420A - TUBE ASSY, RETURN
44420-26040

LXH4#,RCH4#

 1
44443 - BRACKET, PUMP
44443-34010

RCH41,47

 1
Common parts
90105-10382
90466-15002
90467-16007
90467-16008
90467-21005
90560-10008
91512-61025
91611-60816
91651-40820
Linked diagrams
1708
8401
