RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )RCH41,47

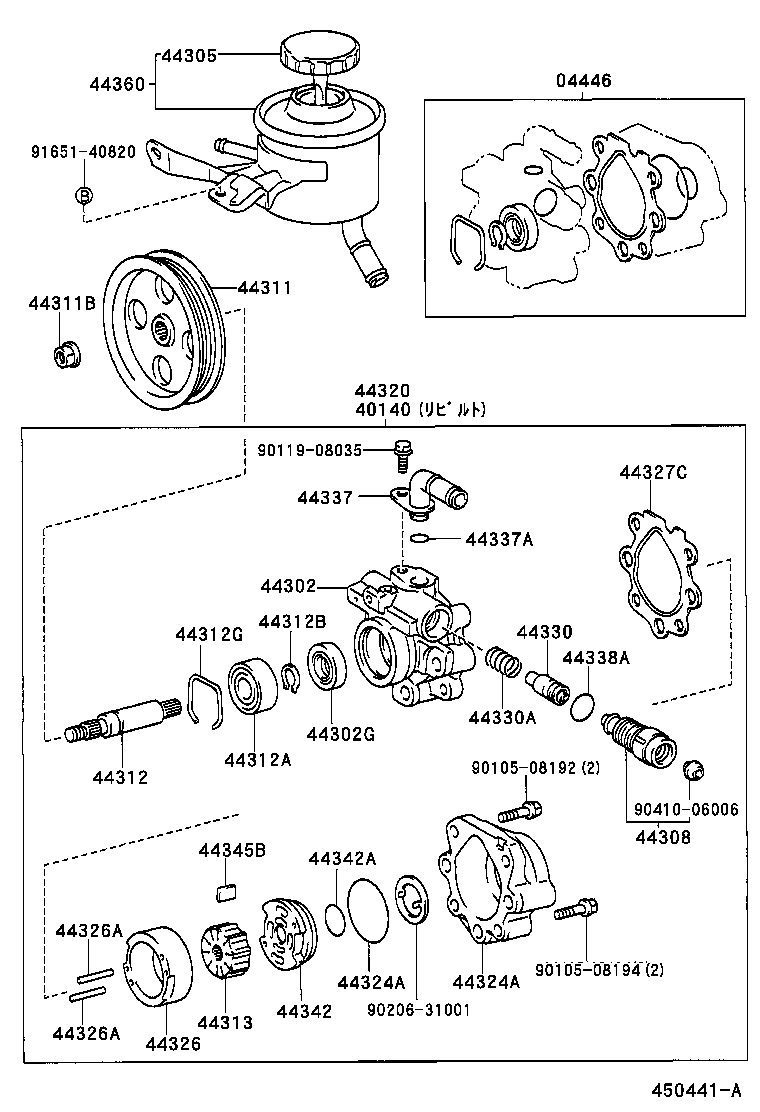

Click highlighted areas on diagram

diagram 04446 40140 44302 44302G 44305 44308 44311 44311B 44312 44312A 44312B 44312G 44313 44320 44324A 44324A 44326 44326A 44326A 44327C 44330 44330A 44337 44337A 44338A 44342 44342A 44345B 44360 9010508192 9010508194 9011908035 9020631001 9041006006 9165140820
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30120

LXH4#,RCH4#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-26210

RCH41,47

TOYODA KOKI

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-34010

RCH41,47

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17007

LXH4#,RCH4#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-22040

LXH4#,RCH4#

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-26100

RCH4#..ATM

 1
44308-26041

LXH4#,RCH4#

 1
44311 - PULLEY, VANE PUMP
44311-34020

RCH41,47

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003

LXH4#,RCH4#

 1
90179-12022

LXH4#,RCH4#

 1
44312 - SHAFT, VANE PUMP
44312-26010

LXH4#,RCH4#

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17008

LXH4#,RCH4#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

LXH4#,RCH4#

 1
44312G - RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)
90521-44002

LXH4#,RCH4#

 1
44313 - ROTOR, VANE PUMP
44313-26090

KCH4#,LXH4#,RCH4#

ﾏｰｸ 3

 1
44313-26100

KCH4#,LXH4#,RCH4#

ﾏｰｸ 4

 1
44313-26070

KCH4#,LXH4#,RCH4#

ﾏｰｸ 1

 1
44313-26060

KCH4#,LXH4#,RCH4#

ﾏｰｸ無し

 1
44313-26080

KCH4#,LXH4#,RCH4#

ﾏｰｸ 2

 1
44320 - PUMP ASSY, VANE
44320-26210

RCH41,47

 1
44324A - HOUSING, PUMP, REAR
44324-34010

RCH41,47

 1
44324A - HOUSING, PUMP, REAR
44324-34010

RCH41,47

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-32300

LXH4#,RCH4#

ﾏｰｸ 3

 1
44325-32290

LXH4#,RCH4#

ﾏｰｸ 2

 1
44325-32280

LXH4#,RCH4#

ﾏｰｸ 1

 1
44325-32270

LXH4#,RCH4#

ﾏｰｸ無し

 1
44325-32310

LXH4#,RCH4#

ﾏｰｸ 4

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04071

LXH4#,RCH4#

長さ=23.3,外径=4.0

 2
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04071

LXH4#,RCH4#

長さ=23.3,外径=4.0

 2
44327C - GASKET, VANE PUMP HOUSING
44327-26010

LXH4#,RCH4#

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-26011

LXH4#,RCH4#

ﾏｰｸ A

 1
44330-26031

LXH4#,RCH4#

ﾏｰｸ C

 1
44330-26041

LXH4#,RCH4#

ﾏｰｸ D

 1
44330-26061

LXH4#,RCH4#

ﾏｰｸ F

 1
44330-26021

LXH4#,RCH4#

ﾏｰｸ B

 1
44330-26051

LXH4#,RCH4#

ﾏｰｸ E

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-13034

LXH4#,RCH4#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-26080

RCH41,47

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016

KCH4#,LXH4#,RCH4#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19013

KCH4#,LXH4#,RCH4#

内径=19.2,外径=22.3

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-26020

LXH4#,RCH4#

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-18007

LXH4#,RCH4#

内側

 1
90301-47001

LXH4#,RCH4#

外側

 1
44345B - PLATE, VANE PUMP
44345-26010

LXH4#,RCH4#

長さ=15.000

 10
44345-26030

LXH4#,RCH4#

長さ=14.996

 10
44345-26020

LXH4#,RCH4#

長さ=14.998

 10
44345-26040

LXH4#,RCH4#

長さ=14.994

 10
44345-26050

LXH4#,RCH4#

長さ=14.992

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-26101

LXH4#,RCH4#

 1
Common parts
90105-08192
90105-08194
90119-08035
90206-31001
90410-06006
91651-40820
