RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )LXH4#..G ; (9704- )KCH4#,RCH41,47

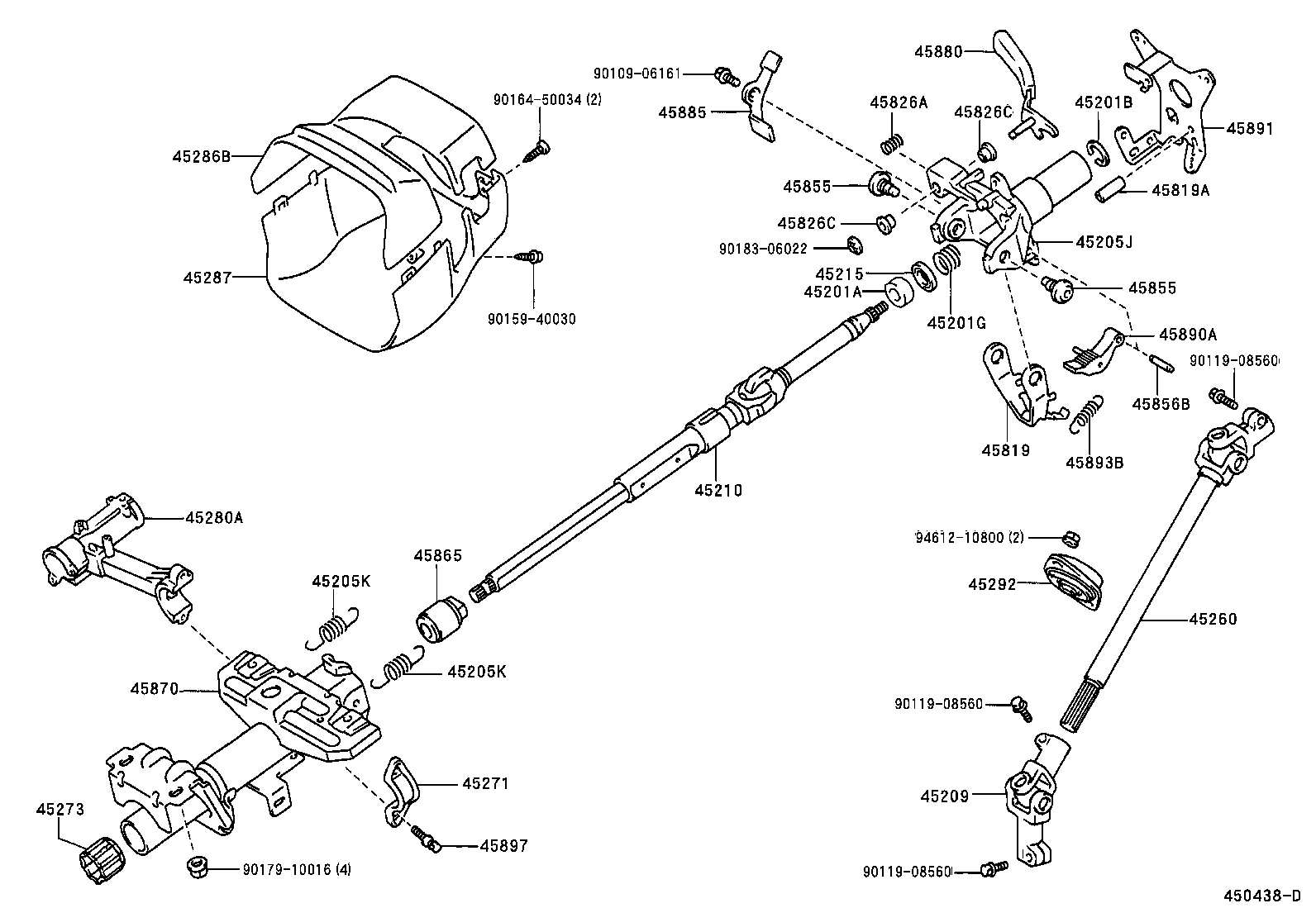

Click highlighted areas on diagram

ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ)

diagram 45201A 45201B 45201G 45205J 45205K 45205K 45209 45210 45215 45260 45271 45273 45280A 45286B 45287 45292 45819 45819A 45826A 45826C 45826C 45855 45855 45856B 45865 45870 45880 45885 45890A 45891 45893B 45897 9010906161 9011908560 9011908560 9011908560 9015940030 9016450034 9017910016 9018306022 9461210800
Part # Description Qty Price
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18005

LXH4#..G;KCH4#,RCH41,47

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

LXH4#..G;KCH4#,RCH41,47

厚さ=1.20

 2
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-40017

LXH4#..G;KCH4#,RCH41,47

 1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-26210

LXH4#..G;KCH4#,RCH41,47

 1
45205K - SPRING(FOR STEERING COLUMN TUBE)
90506-27002

LXH4#..G;KCH4#,RCH41,47

 2
45205K - SPRING(FOR STEERING COLUMN TUBE)
90506-27002

LXH4#..G;KCH4#,RCH41,47

 2
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-26030

KCH4#,LXH4#,RCH4#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-26120

LXH4#..G;KCH4#,RCH41,47

 1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-12010

LXH4#..G;KCH4#,RCH41,47

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-26060

KCH40,RCH41

 1
45260-26061

KCH40,LXH43,RCH41,42

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-12060

LXH4#..G;KCH4#,RCH41,47

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-20050

LXH4#..G;KCH4#,RCH41,47

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-26230

LXH4#..G;KCH4#,RCH41,47

 1
45286B - COVER, STEERING COLUMN, UPR
45286-26360B0

LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD

BLUISH GRAY,TRIM1#

 1
45286-26360G0

KCH4#,RCH41,47..G,STD

DK.SAGE,TRIM6#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-26250G0

KCH4#,RCH41,47..G,STD

DK.SAGE,TRIM6#

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-26030

KCH4#,LXH4#,RCH4#

 1
45819 - RETAINER, TILT LEVER
45819-26010

LXH4#..G;KCH4#,RCH41,47

 1
45819A - COLLAR(FOR TILT LEVER RETAINER)
90387-06068

KCH4#,LXH4#,RCH4#..ATM

 1
45826A - SPRING, TENSION(FOR STEERING TILT LEVER)
90508-16159

LXH4#..G;KCH4#,RCH41,47

 1
45826C - BUSH(FOR STEERING TILT LEVER)
90389-08120

LXH4#..G;KCH4#,RCH41,47

 2
45826C - BUSH(FOR STEERING TILT LEVER)
90389-08120

LXH4#..G;KCH4#,RCH41,47

 2
45855 - BOLT, TILT STEERING, NO.1
45855-26010

LXH4#..G;KCH4#,RCH41,47

外径=21,長さ=21

 2
45855 - BOLT, TILT STEERING, NO.1
45855-26010

LXH4#..G;KCH4#,RCH41,47

外径=21,長さ=21

 2
45856B - SHAFT, T1LT STEERING, NO.2
45856-26010

LXH4#..G;KCH4#,RCH41,47

 1
45865 - COLLAR, STEERING MAIN SHAFT
45865-12060

LXH4#..G;KCH4#,RCH41,47

 1
45870 - TUBE ASSY, STEERING COLUMN
45870-26100

LXH4#..G;KCH4#,RCH41,47

 1
45880 - LEVER ASSY, STEERING TILT
45880-26030

LXH4#..G;KCH4#,RCH41,47

 1
45885 - LINK, TILT LEVER
45885-26010

LXH4#..G;KCH4#,RCH41,47

 1
45890A - PAWL ASSY, TILT STEERING
45890-26020

LXH4#..G;KCH4#,RCH41,47

 1
45891 - BRACKET, TURN SIGNAL
45891-26110

LXH4#..G;KCH4#,RCH41,47

 1
45893B - SPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
90507-12042

LXH4#..G;KCH4#,RCH41,47

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

KCH4#,LXH4#,RCH4#

 2
Common parts
90109-06161
90119-08560
90159-40030
90164-50034
90179-10016
90183-06022
94612-10800
