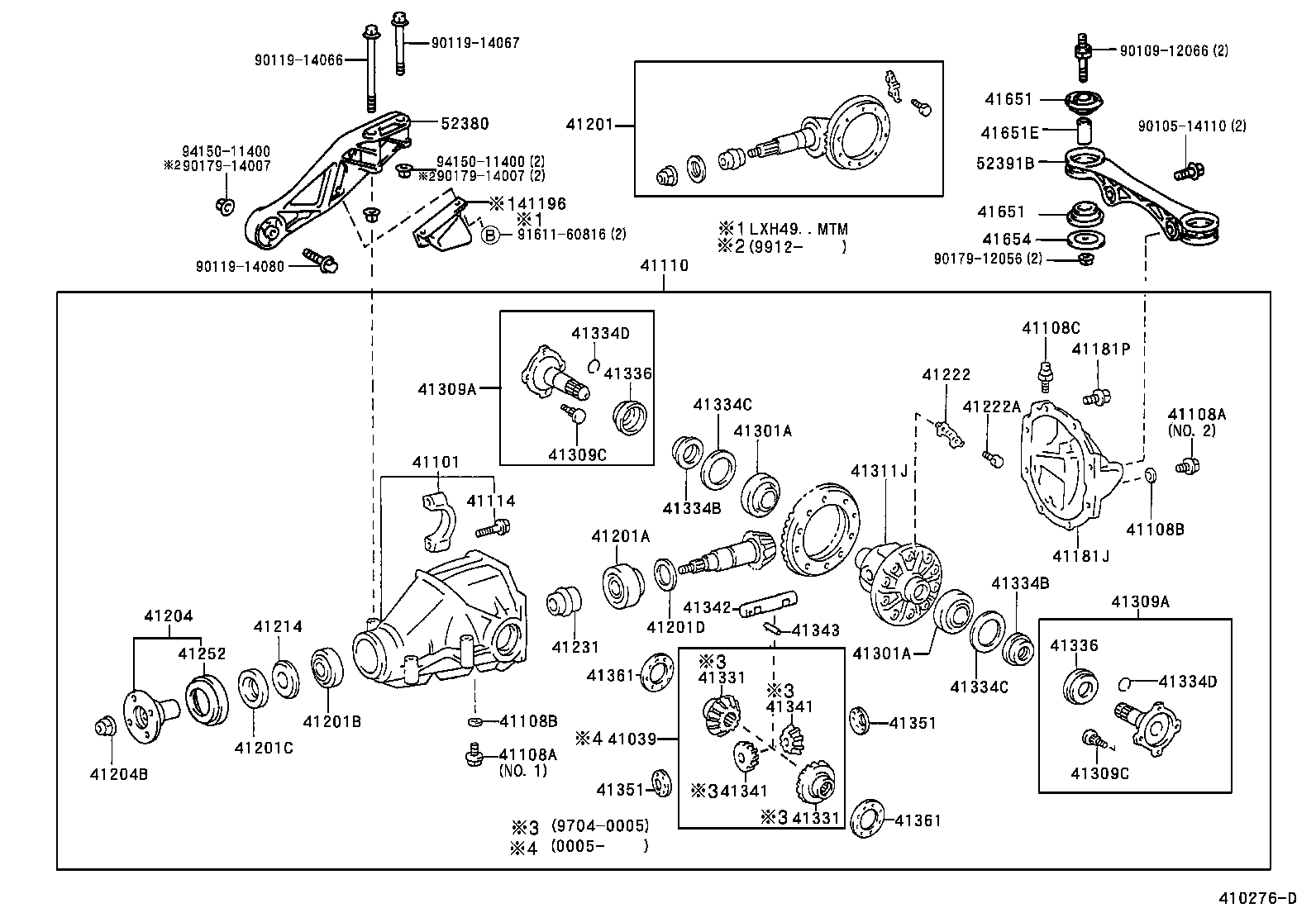

RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace
(9704- )KCH46,LXH49,RCH41,47
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30050 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18006 |
KCH4#,LXH4#,RCH4# NO.2 |
1 | ||
| 90341-18030 |
KCH4#,LXH4#,RCH4# NO.1 |
1 | ||
| 41108A - PLUG (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90341-18006 |
KCH4#,LXH4#,RCH4# NO.2 |
1 | ||
| 90341-18030 |
KCH4#,LXH4#,RCH4# NO.1 |
1 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 41108B - GASKET (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 12157-10010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-26370 |
RCH41 *FGR=43:10=4.300 |
1 | ||
| 41181J - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41181-22030 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-10328 |
KCH46,LXH49,RCH41,47 |
8 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80004 |
RCH41 *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35023 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30022 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35397 |
KCH46,LXH49,RCH41,47 厚さ=2.39,ﾏｰｸ 06 |
1 | ||
| 90201-35396 |
KCH46,LXH49,RCH41,47 厚さ=2.36,ﾏｰｸ 05 |
1 | ||
| 90201-35402 |
KCH46,LXH49,RCH41,47 厚さ=2.54,ﾏｰｸ 11 |
1 | ||
| 90201-35398 |
KCH46,LXH49,RCH41,47 厚さ=2.42,ﾏｰｸ 07 |
1 | ||
| 90201-35400 |
KCH46,LXH49,RCH41,47 厚さ=2.48,ﾏｰｸ 09 |
1 | ||
| 90201-35403 |
KCH46,LXH49,RCH41,47 厚さ=2.57,ﾏｰｸ 12 |
1 | ||
| 90201-35438 |
KCH46,LXH49,RCH41,47 厚さ=2.63,ﾏｰｸ 14 |
1 | ||
| 90201-35441 |
KCH46,LXH49,RCH41,47 厚さ=2.72,ﾏｰｸ 17 |
1 | ||
| 90201-35401 |
KCH46,LXH49,RCH41,47 厚さ=2.51,ﾏｰｸ 10 |
1 | ||
| 90201-35439 |
KCH46,LXH49,RCH41,47 厚さ=2.66,ﾏｰｸ 15 |
1 | ||
| 90201-35404 |
KCH46,LXH49,RCH41,47 厚さ=2.60,ﾏｰｸ 13 |
1 | ||
| 90201-35399 |
KCH46,LXH49,RCH41,47 厚さ=2.43,ﾏｰｸ 08 |
1 | ||
| 90201-35440 |
KCH46,LXH49,RCH41,47 厚さ=2.69,ﾏｰｸ 16 |
1 | ||
| 90201-35515 |
KCH4#,LXH4#,RCH4# 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35517 |
KCH4#,LXH4#,RCH4# 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35518 |
KCH4#,LXH4#,RCH4# 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35516 |
KCH4#,LXH4#,RCH4# 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35050 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18020 |
KCH46,LXH49,RCH41,47 外径=33.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35030 |
KCH46,LXH49,RCH41,47 |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KCH4#,LXH4#,RCH4# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50006 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50006 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-30010 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-30010 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41309C - BOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10028 |
KCH46,LXH49,RCH41,47 |
8 | ||
| 41309C - BOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90114-10028 |
KCH46,LXH49,RCH41,47 |
8 | ||
| 41311J - CASE, REAR DIFFERENTIAL | ||||
| 41311-22060 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-14040 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-14040 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-38011 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65007 |
KCH46,LXH49,RCH41,47 厚さ=2.58 |
1 | ||
| 90201-65012 |
KCH46,LXH49,RCH41,47 厚さ=2.73 |
1 | ||
| 90201-65010 |
KCH46,LXH49,RCH41,47 厚さ=2.67 |
1 | ||
| 90201-65011 |
KCH46,LXH49,RCH41,47 厚さ=2.70 |
1 | ||
| 90201-65009 |
KCH46,LXH49,RCH41,47 厚さ=2.64 |
1 | ||
| 90201-65016 |
KCH46,LXH49,RCH41,47 厚さ=2.85 |
1 | ||
| 90201-65018 |
KCH46,LXH49,RCH41,47 厚さ=2.91 |
1 | ||
| 90201-65008 |
KCH46,LXH49,RCH41,47 厚さ=2.61 |
1 | ||
| 90201-65017 |
KCH46,LXH49,RCH41,47 厚さ=2.88 |
1 | ||
| 90201-65013 |
KCH46,LXH49,RCH41,47 厚さ=2.76 |
1 | ||
| 90201-65021 |
KCH46,LXH49,RCH41,47 厚さ=3.00 |
1 | ||
| 90201-65014 |
KCH46,LXH49,RCH41,47 厚さ=2.79 |
1 | ||
| 90201-65026 |
KCH46,LXH49,RCH41,47 厚さ=3.15 |
1 | ||
| 90201-65019 |
KCH46,LXH49,RCH41,47 厚さ=2.94 |
1 | ||
| 90201-65025 |
KCH46,LXH49,RCH41,47 厚さ=3.12 |
1 | ||
| 90201-65015 |
KCH46,LXH49,RCH41,47 厚さ=2.82 |
1 | ||
| 90201-65023 |
KCH46,LXH49,RCH41,47 厚さ=3.06 |
1 | ||
| 90201-65029 |
KCH46,LXH49,RCH41,47 厚さ=3.24 |
1 | ||
| 90201-65022 |
KCH46,LXH49,RCH41,47 厚さ=3.03 |
1 | ||
| 90201-65027 |
KCH46,LXH49,RCH41,47 厚さ=3.18 |
1 | ||
| 90201-65020 |
KCH46,LXH49,RCH41,47 厚さ=2.97 |
1 | ||
| 90201-65028 |
KCH46,LXH49,RCH41,47 厚さ=3.21 |
1 | ||
| 90201-65024 |
KCH46,LXH49,RCH41,47 厚さ=3.09 |
1 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65007 |
KCH46,LXH49,RCH41,47 厚さ=2.58 |
1 | ||
| 90201-65012 |
KCH46,LXH49,RCH41,47 厚さ=2.73 |
1 | ||
| 90201-65010 |
KCH46,LXH49,RCH41,47 厚さ=2.67 |
1 | ||
| 90201-65011 |
KCH46,LXH49,RCH41,47 厚さ=2.70 |
1 | ||
| 90201-65009 |
KCH46,LXH49,RCH41,47 厚さ=2.64 |
1 | ||
| 90201-65016 |
KCH46,LXH49,RCH41,47 厚さ=2.85 |
1 | ||
| 90201-65018 |
KCH46,LXH49,RCH41,47 厚さ=2.91 |
1 | ||
| 90201-65008 |
KCH46,LXH49,RCH41,47 厚さ=2.61 |
1 | ||
| 90201-65017 |
KCH46,LXH49,RCH41,47 厚さ=2.88 |
1 | ||
| 90201-65013 |
KCH46,LXH49,RCH41,47 厚さ=2.76 |
1 | ||
| 90201-65021 |
KCH46,LXH49,RCH41,47 厚さ=3.00 |
1 | ||
| 90201-65014 |
KCH46,LXH49,RCH41,47 厚さ=2.79 |
1 | ||
| 90201-65026 |
KCH46,LXH49,RCH41,47 厚さ=3.15 |
1 | ||
| 90201-65019 |
KCH46,LXH49,RCH41,47 厚さ=2.94 |
1 | ||
| 90201-65025 |
KCH46,LXH49,RCH41,47 厚さ=3.12 |
1 | ||
| 90201-65015 |
KCH46,LXH49,RCH41,47 厚さ=2.82 |
1 | ||
| 90201-65023 |
KCH46,LXH49,RCH41,47 厚さ=3.06 |
1 | ||
| 90201-65029 |
KCH46,LXH49,RCH41,47 厚さ=3.24 |
1 | ||
| 90201-65022 |
KCH46,LXH49,RCH41,47 厚さ=3.03 |
1 | ||
| 90201-65027 |
KCH46,LXH49,RCH41,47 厚さ=3.18 |
1 | ||
| 90201-65020 |
KCH46,LXH49,RCH41,47 厚さ=2.97 |
1 | ||
| 90201-65028 |
KCH46,LXH49,RCH41,47 厚さ=3.21 |
1 | ||
| 90201-65024 |
KCH46,LXH49,RCH41,47 厚さ=3.09 |
1 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
KCH46,LXH49,RCH41,47 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KCH46,LXH49,RCH41,47 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30090 |
KCH46,LXH49,RCH41,47 厚さ=1.5 |
2 | ||
| 41361-30100 |
KCH46,LXH49,RCH41,47 厚さ=1.6 |
2 | ||
| 41361-30080 |
KCH46,LXH49,RCH41,47 厚さ=1.4 |
2 | ||
| 41361-30050 |
KCH46,LXH49,RCH41,47 厚さ=1.1 |
2 | ||
| 41361-30060 |
KCH46,LXH49,RCH41,47 厚さ=1.2 |
2 | ||
| 41361-30040 |
KCH46,LXH49,RCH41,47 厚さ=1.0 |
2 | ||
| 41361-30070 |
KCH46,LXH49,RCH41,47 厚さ=1.3 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30090 |
KCH46,LXH49,RCH41,47 厚さ=1.5 |
2 | ||
| 41361-30100 |
KCH46,LXH49,RCH41,47 厚さ=1.6 |
2 | ||
| 41361-30080 |
KCH46,LXH49,RCH41,47 厚さ=1.4 |
2 | ||
| 41361-30050 |
KCH46,LXH49,RCH41,47 厚さ=1.1 |
2 | ||
| 41361-30060 |
KCH46,LXH49,RCH41,47 厚さ=1.2 |
2 | ||
| 41361-30040 |
KCH46,LXH49,RCH41,47 厚さ=1.0 |
2 | ||
| 41361-30070 |
KCH46,LXH49,RCH41,47 厚さ=1.3 |
2 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-26040 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-26040 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 41651E - COLLAR (FOR REAR DIFFERENTIAL MOUNT CUSHION) | ||||
| 90387-22007 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-26050 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 52380 - SUPPORT, REAR DIFFERENTIAL, NO.1 | ||||
| 52380-26100 |
RCH42;KCH4#,LXH4#,RCH41,47..ATM |
1 | ||
| 52391B - SUPPORT, DIFFERENTIAL | ||||
| 52391-26150 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 90105-14110 | ||||
| 90109-12066 | ||||
| 90119-14066 | ||||
| 90119-14067 | ||||
| 90119-14080 | ||||
| 90179-12056 | ||||
| 90179-14007 | ||||
| 91611-60816 | ||||
| 94150-11400 | ||||
