RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace
(9704-9907)RCH41,47
A43DE,A43DF

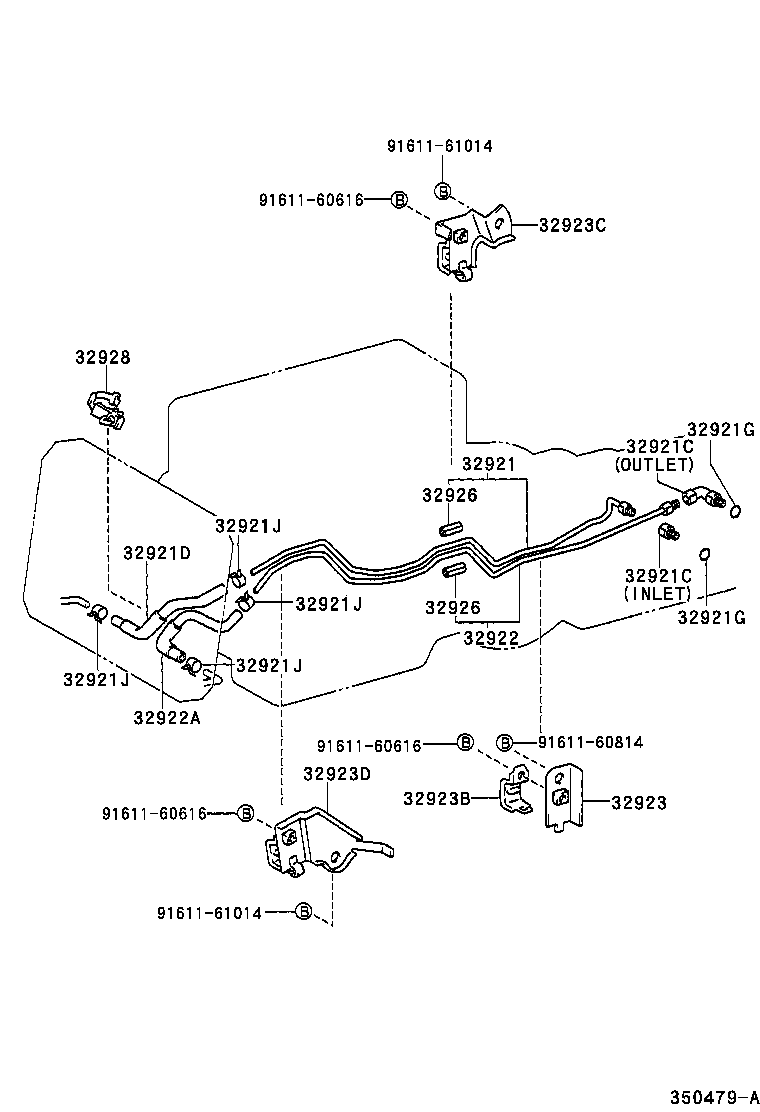

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-26190 |
RCH41 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
LXH43,RCH41..ATM ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LXH4#,RCH41,47..ATM ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
LXH43,RCH41..ATM ｲﾝﾚｯﾄ |
1 | ||
| 90407-16010 |
LXH4#,RCH41,47..ATM ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32942-26080 |
RCH41,47 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LXH4#,RCH41,47..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LXH4#,RCH41,47..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-26200 |
RCH41,47 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32941-60070 |
RCH41,47 |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-26110 |
RCH41,47 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-30110 |
LXH4#,RCH41,47..ATM |
1 | ||
| 32929-50010 |
RCH41,47 |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32909-26070 |
RCH41,47 |
1 | ||
| 32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5 | ||||
| 32909-26110 |
RCH41,47 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KCH4#,LXH4#,RCH41,47..ATM 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
RCH4#..ATM 長さ=35,内径=10,NO.1 |
6 | ||
| 32926-30060 |
RCH4#..ATM 長さ=35,内径=10,NO.2 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
KCH4#,LXH4#,RCH41,47..ATM 長さ=35,内径=10 |
6 | ||
| 32926-30020 |
RCH4#..ATM 長さ=35,内径=10,NO.1 |
6 | ||
| 32926-30060 |
RCH4#..ATM 長さ=35,内径=10,NO.2 |
1 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-26100 |
LXH4#..G;RCH41,47 |
1 | ||
| Common parts | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91611-61014 | ||||
