RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )KCH4# ; (9907- )RCH41,47

Click highlighted areas on diagram

A340E,A343F

diagram 33481S 35075 35075A 35075B 35075C 35481U 35481V 35720 35720A 35720B 35735A 35737A 35738 35760 35761 35761A 35762 35762A 35771 35789C 35789D 35789F 35792 35792B 35797 9052032002
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-26011

RCH41

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

KCH40,LXH4#,RCH41..ATM

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

RCH41

厚さ=1.50,外径=34.8,NO.2

 1
90520-28009

RCH41

厚さ=1.50,外径=33.8,NO.1

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

RCH41,47

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-30020

RCH41,47

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30010

RCH41,47

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30030

RCH41,47

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30011

RCH41,47

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

LXH4#,RCH41,47..ATM

 1
Common parts
90520-32002

(9704-9907)RCH41,47

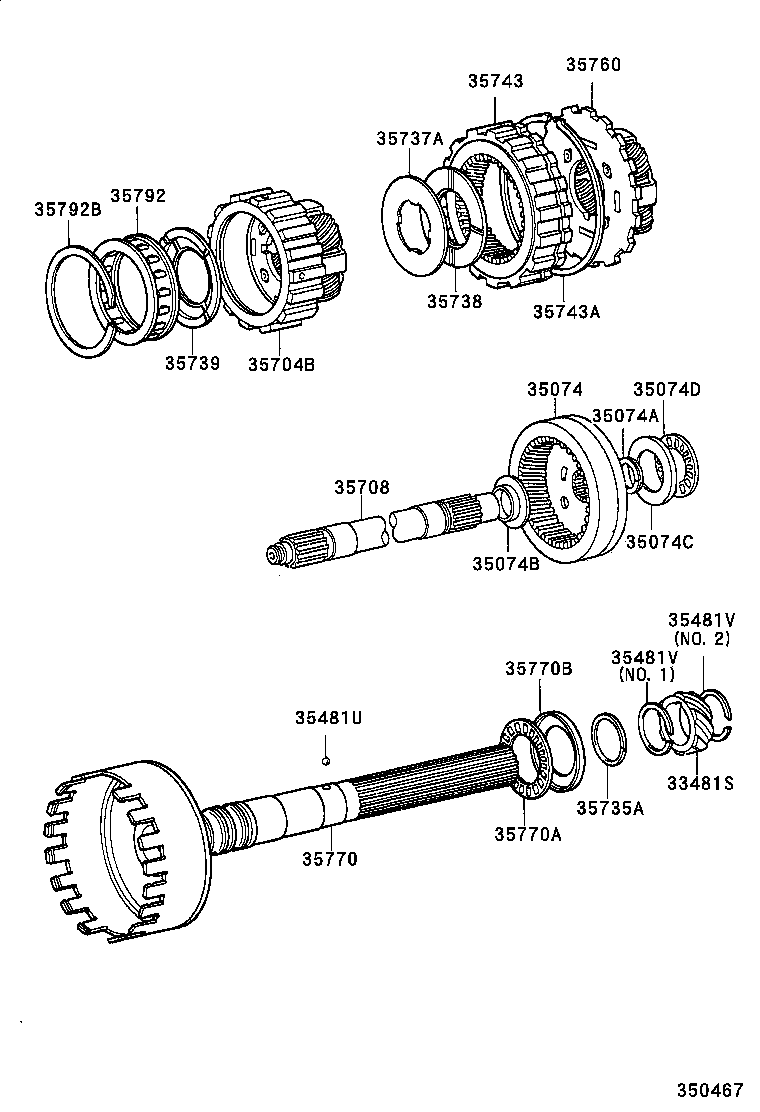

Click highlighted areas on diagram

A43DE,A43DF

diagram 33481S 35074 35074A 35074B 35074C 35074D 35481U 35481V 35481V 35704B 35708 35735A 35737A 35738 35739 35743 35743A 35760 35770 35770A 35770B 35792 35792B
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-26011

RCH41

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30030

LXH4#,RCH41,47..ATM

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

LXH4#,RCH41,47..ATM

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-30180

RCH41,47

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

LXH4#,RCH41,47..ATM

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

LXH4#,RCH41,47..ATM

ﾘﾔ

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

KCH40,LXH4#,RCH41..ATM

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

RCH41

厚さ=1.50,外径=34.8,NO.2

 1
90520-28009

RCH41

厚さ=1.50,外径=33.8,NO.1

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

RCH41

厚さ=1.50,外径=34.8,NO.2

 1
90520-28009

RCH41

厚さ=1.50,外径=33.8,NO.1

 1
35704B - GEAR SUB-ASSY, FRONT PLANETARY
35704-30030

RCH41,47

 1
35708 - SHAFT SUB-ASSY, INTERMEDIATE
35708-30041

LXH4#,RCH41,47..ATM

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

RCH41,47

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-30020

RCH41,47

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30010

RCH41,47

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-30010

RCH41,47

 1
35743 - GEAR, FRONT PLANETARY RING
35743-30010

LXH4#,RCH41,47..ATM

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

LXH4#,RCH41,47..ATM

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30030

RCH41,47

 1
35770 - SHAFT ASSY, OUTPUT
35770-30030

RCH41

 1
35770-53010

RCH41

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

LXH4#,RCH41,47..ATM

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

LXH4#,RCH41,47..ATM

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30011

RCH41,47

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

LXH4#,RCH41,47..ATM

 1
