RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907)LXH4#,RCH41,47..ATM ; (9907- )LXH4#,RCH42..ATM

Click highlighted areas on diagram

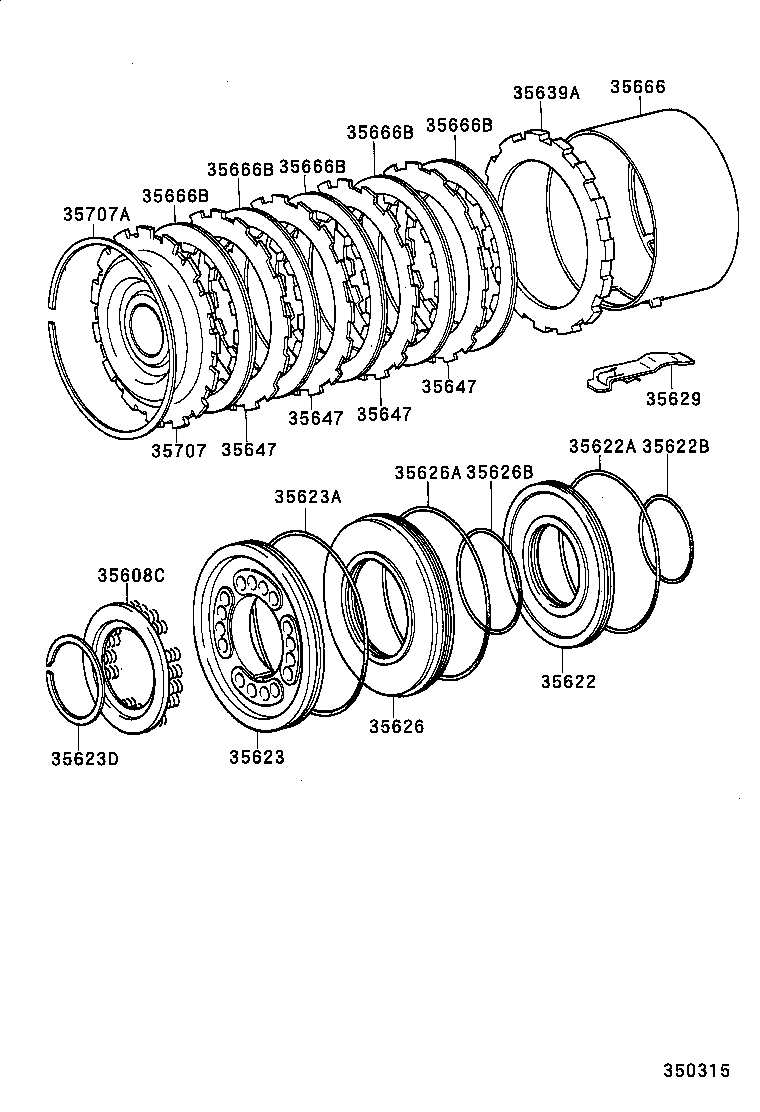

A43DE,A43DF,A45DF,A45DL

diagram 35608C 35622 35622A 35622B 35623 35623A 35623D 35626 35626A 35626B 35629 35639A 35647 35647 35647 35647 35666 35666B 35666B 35666B 35666B 35666B 35707 35707A
Part # Description Qty Price
35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN
35608-20020

LXH4#,RCH41,47..ATM

 1
35622 - PISTON, BRAKE, NO.2
35622-22010

LXH4#,RCH41,47..ATM

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99193

LXH4#,RCH41,47..ATM

 1
90301-99084

LXH4#,RCH41,47..ATM

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-57188

LXH4#,RCH41,47..ATM

 1
90301-56007

LXH4#,RCH41,47..ATM

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

LXH4#,RCH41,47..ATM

 1
35623A - RING, O (FOR BRAKE PISTON NO.3 )
90301-99192

LXH4#,RCH41,47..ATM

 1
90301-99110

LXH4#,RCH41,47..ATM

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

LXH4#,RCH41,47..ATM

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

LXH4#,RCH41,47..ATM

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99200

LXH4#,RCH41,47..ATM

 1
90301-99109

LXH4#,RCH41,47..ATM

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

KCH4#,LXH4#,RCH41,47..ATM

 1
90301-67005

LXH4#,RCH41,47..ATM

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22010

LXH4#,RCH41,47..ATM

 1
35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

LXH4#,RCH41,47..ATM

 1
35647 - PLATE, CLUTCH, NO.2
35647-22010

LXH4#,RCH41,47..ATM

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

LXH4#,RCH41,47..ATM

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

LXH4#,RCH41,47..ATM

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

LXH4#,RCH41,47..ATM

 4
35666 - TUBE, BRAKE APPLY
35666-30010

LXH4#,RCH41,47..ATM

 1
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXH4#,RCH41,47..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXH4#,RCH41,47..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXH4#,RCH41,47..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXH4#,RCH41,47..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXH4#,RCH41,47..ATM

 5
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-30030

RCH41,47

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

LXH4#,RCH41,47..ATM

 1

(9704- )KCH4# ; (9907- )RCH41,47

Click highlighted areas on diagram

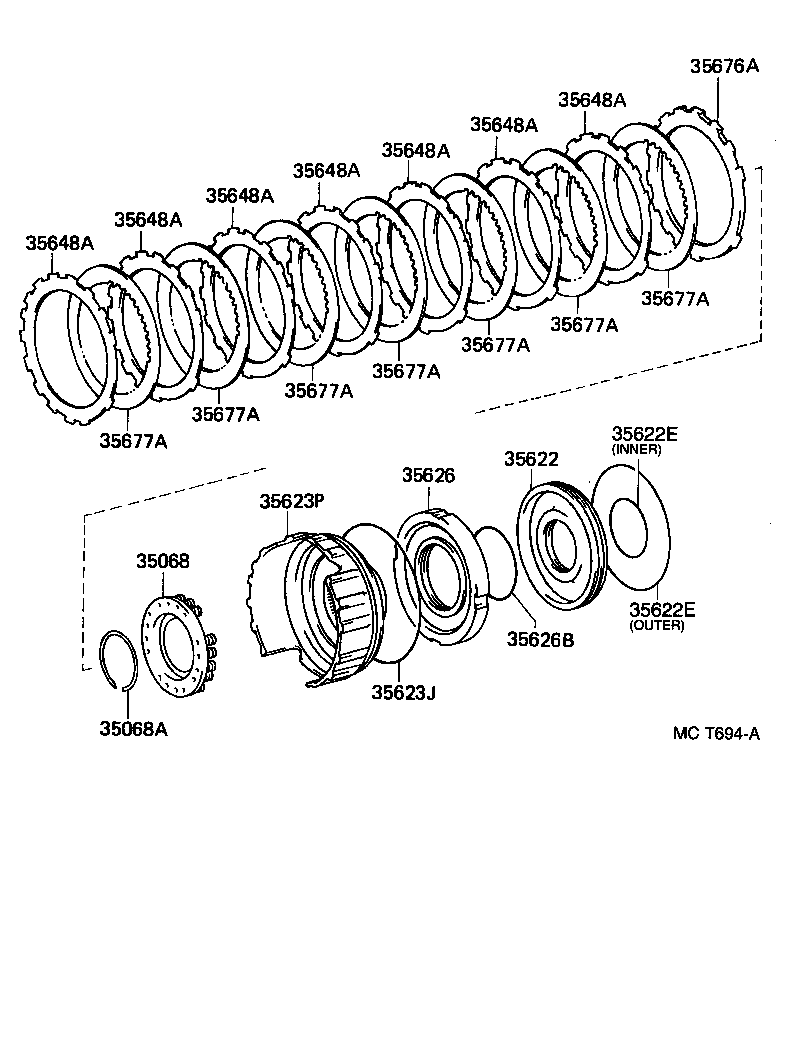

A340E,A343F

diagram 35068 35068A 35622 35622E 35622E 35623J 35623P 35626 35626B 35648A 35648A 35648A 35648A 35648A 35648A 35648A 35676A 35677A 35677A 35677A 35677A 35677A 35677A 35677A
Part # Description Qty Price
35622 - PISTON, BRAKE, NO.2
35622-22010

LXH4#,RCH41,47..ATM

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

LXH4#,RCH41,47..ATM

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

KCH4#,LXH4#,RCH41,47..ATM

 1
90301-67005

LXH4#,RCH41,47..ATM

 1
