RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace
Production
Apr 1997
-
Jul 1999
Engine
3RZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704-9907)RCH41,47

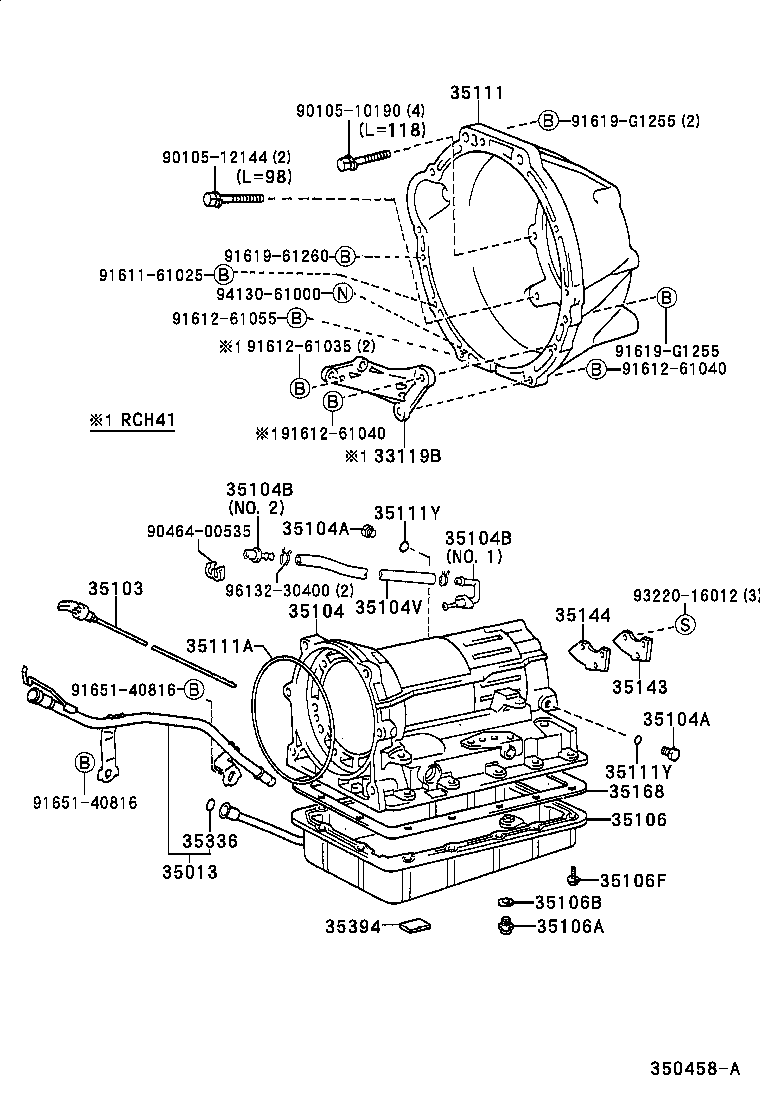

Click highlighted areas on diagram
A43DE,A43DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-26021 |
RCH41,42..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-26200 |
RCH41,47 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-26160 |
RCH41,47 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30101 |
RCH41 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KCH40,LXH4#,RCH41,47..ATM |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KCH40,LXH4#,RCH41,47..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
KCH4#,LXH4#,RCH41,47..ATM NO.2 |
1 | ||
| 90930-03098 |
KCH4#,LXH4#,RCH4#..ATM NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03099 |
KCH4#,LXH4#,RCH41,47..ATM NO.2 |
1 | ||
| 90930-03098 |
KCH4#,LXH4#,RCH4#..ATM NO.1 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11096 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-28050 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
KCH4#,LXH4#,RCH41,47..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
KCH4#,LXH4#,RCH41,47..ATM |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06117 |
KCH46,LXH4#,RCH41,47..ATM |
14 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-35080 |
RCH41 |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KCH4#,LXH4#,RCH4#..ATM |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KCH4#,LXH4#,RCH4#..ATM |
2 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-28010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KCH4#,LXH4#,RCH4#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
LXH4#,RCH41,47..ATM |
2 | ||
| Common parts | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 90464-00535 | ||||
| 91611-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91612-61055 | ||||
| 91619-61260 | ||||
| 91619-G1255 | ||||
| 91651-40816 | ||||
| 93220-16012 | ||||
| 94130-61000 | ||||
| 96132-30400 | ||||
