RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )3RZFE

Click highlighted areas on diagram

12V 80A, 90A

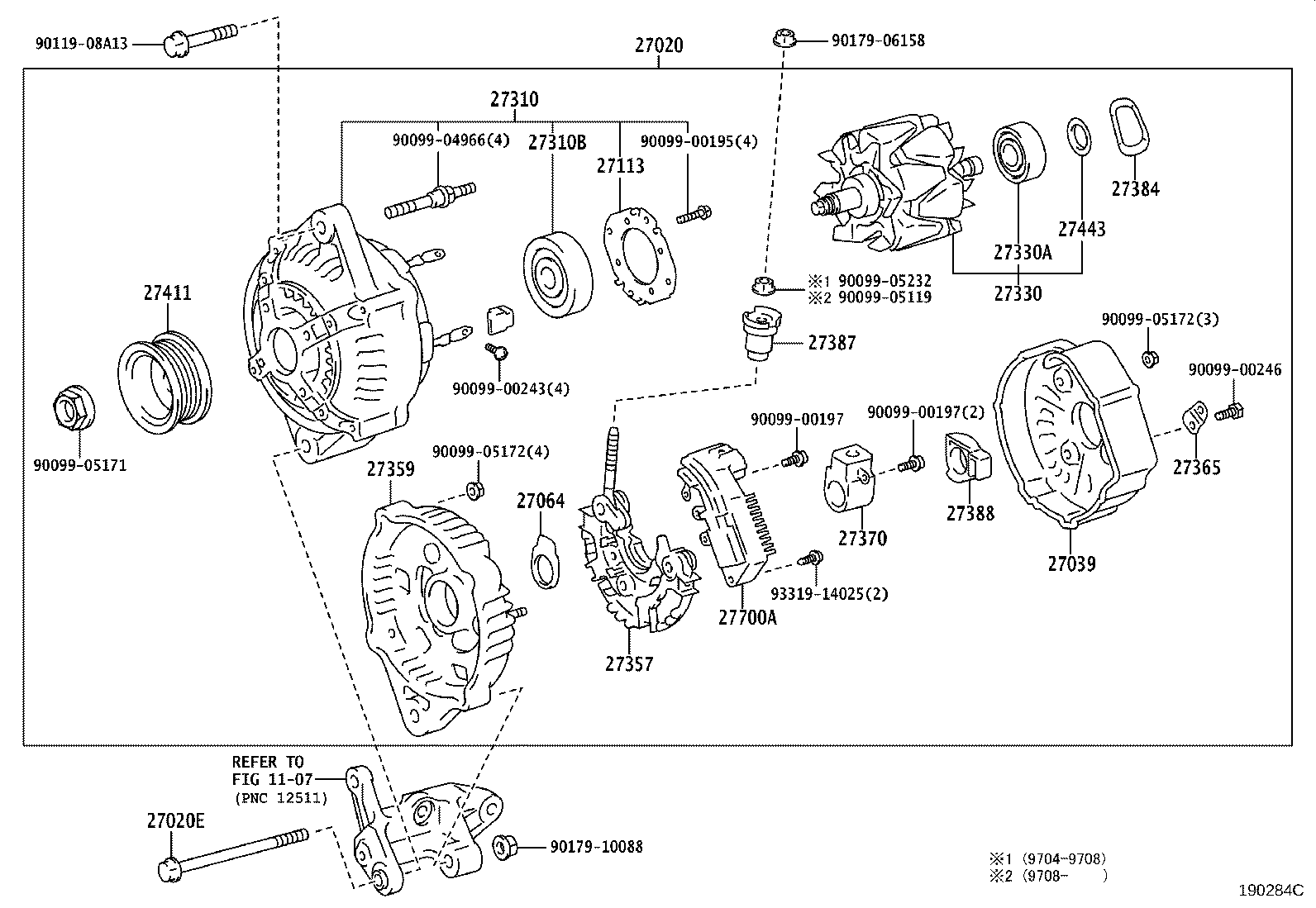

diagram 1107 27020 27020E 27039 27064 27113 27310 27310B 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27411 27443 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9009905232 9011908A13 9017906158 9017910088 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-75160

3RZFE..RCH41,47

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10221

1RZE,3RZFE..RCH4#

 1
27039 - COVER, ALTERNATOR REAR END
27039-55080

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010

1KZTE,3RZFE..KCH4#,RCH41,47

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-75110

3RZFE..RCH41,47

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

1KZTE,3RZFE..KCH4#,RCH41,47

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

3RZFE..RCH41,47

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

3RZFE..RCH41,47;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72280

3RZFE..RCH41,47

 1
27365 - PLATE, TERMINAL
27365-55080

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27384 - WASHER
27384-50030

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27387 - INSULATOR, TERMINAL
27387-42020

1KZTE,3RZFE..KCH4#,RCH41,47

 1
27387-42021

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27411 - PULLEY, ALTERNATOR
27411-42030

3RZFE..RCH41,47

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1KZTE,5L,1RZE,3RZFE..KCH4#,LXH4#,RCH4#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-50030

1KZTE,3RZFE..KCH4#,RCH41,47

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90099-05232
90119-08A13
90179-06158
90179-10088
93319-14025
