RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907)3RZFE

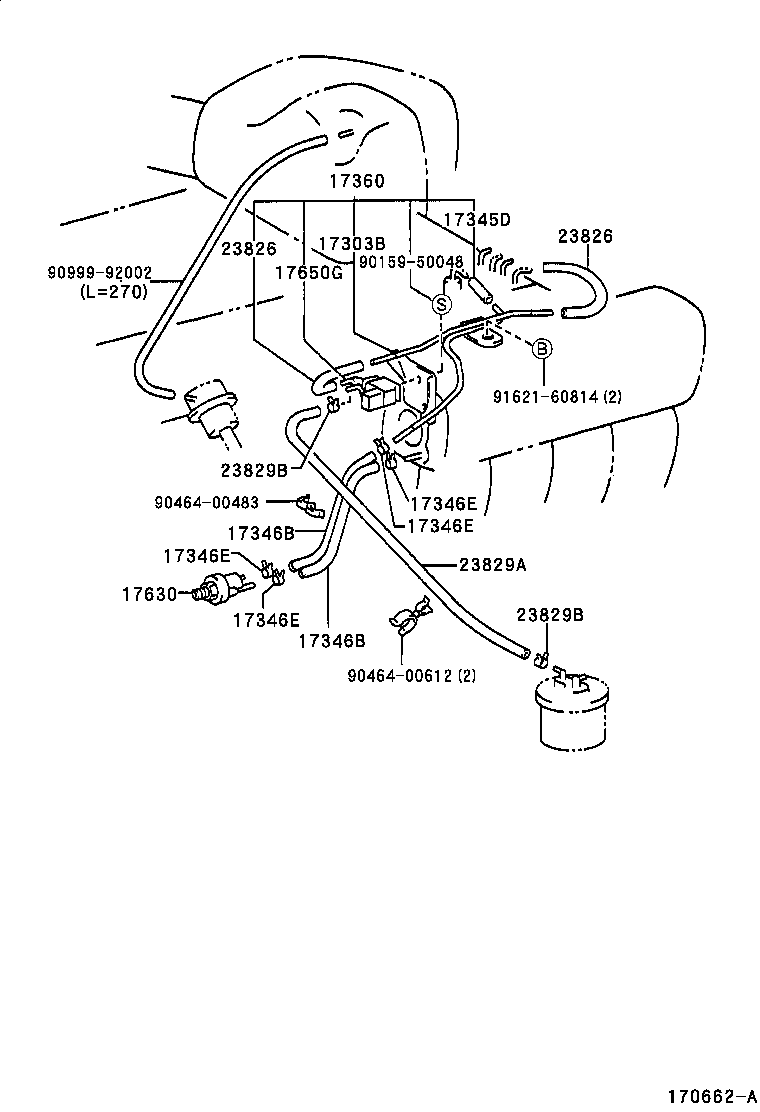

Click highlighted areas on diagram

diagram 17303B 17345D 17346B 17346B 17346E 17346E 17346E 17346E 17360 17630 17650G 23826 23826 23829A 23829B 23829B 9015950048 9046400483 9046400612 9099992002 9162160814
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-75020

3RZFE..RCH41,47

 1
17345D - HOSE, AIR, NO.5
17345-75040

3RZFE..RCH41,47

 1
17346B - HOSE, AIR, NO.6
17346-75010

3RZFE..RCH41,47

 2
17346B - HOSE, AIR, NO.6
17346-75010

3RZFE..RCH41,47

 2
17346E - CLIP(FOR AIR HOSE NO.6)
96132-51000

3RZFE..RCH41,47

 4
17346E - CLIP(FOR AIR HOSE NO.6)
96132-51000

3RZFE..RCH41,47

 4
17346E - CLIP(FOR AIR HOSE NO.6)
96132-51000

3RZFE..RCH41,47

 4
17346E - CLIP(FOR AIR HOSE NO.6)
96132-51000

3RZFE..RCH41,47

 4
17360 - TUBE ASSY, AIR
17360-75010

3RZFE..RCH41,47

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70010

3RZFE..RCH41,47

 1
17630-15090

3RZFE..RCH41,47

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12187

1RZE,3RZFE..RCH4#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-75040

3RZFE..RCH41,47

 2
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-75040

3RZFE..RCH41,47

 2
23829A - HOSE, FUEL VAPOR FEED
23829-75190

3RZFE..RCH41,47

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51000

3RZFE..RCH41,47

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51000

3RZFE..RCH41,47

 2
Common parts
90159-50048
90464-00483
90464-00612
90999-92002
91621-60814
