RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )3RZFE

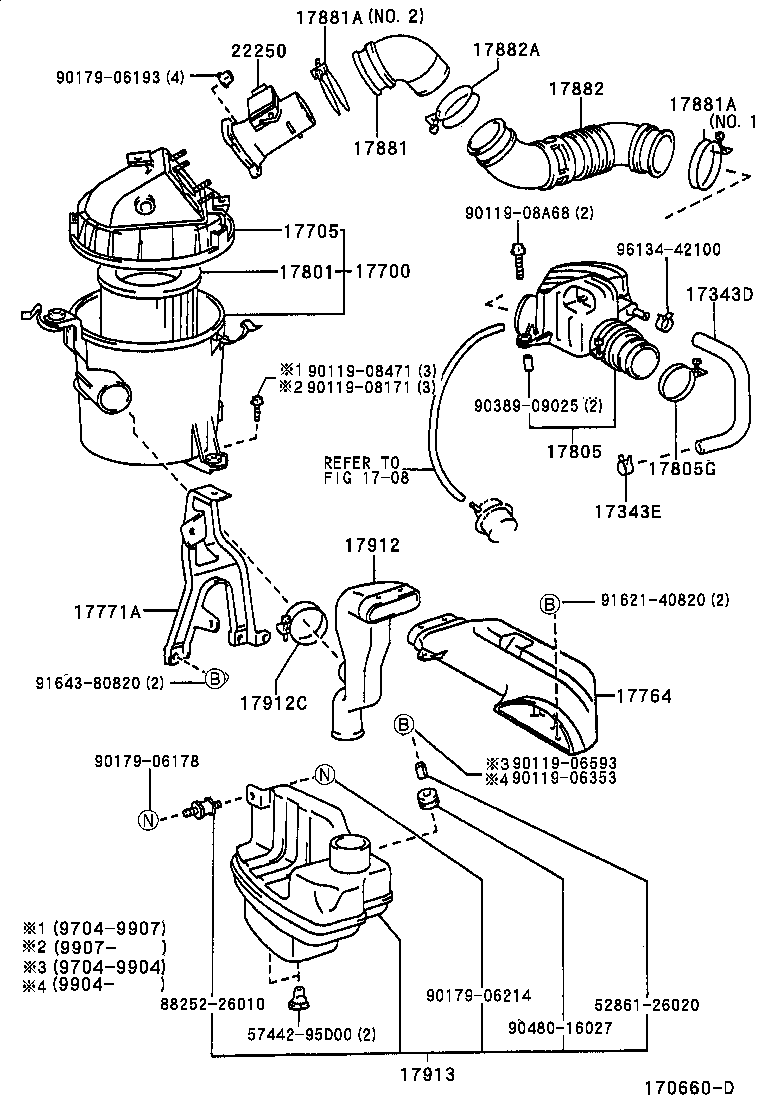

Click highlighted areas on diagram

diagram 1708 17343D 17343E 17700 17705 17764 17771A 17801 17805 17805G 17881 17881A 17881A 17882 17882A 17912 17912C 17913 22250 5286126020 5744295D00 8825226010 9011906353 9011906593 9011908171 9011908471 9011908A68 9017906178 9017906193 9017906214 9038909025 9048016027 9162140820 9164380820 9613442100
Part # Description Qty Price
17343D - HOSE, AIR, NO.3
17343-75010

3RZFE..RCH41,47

 1
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
96134-42100

3RZFE..RCH41,47

 1
17700 - CLEANER ASSY, AIR
17700-75101

3RZFE..RCH41,47

 1
17700-75100

3RZFE..RCH41,47

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-75081

3RZFE..RCH41,47

 1
17705-75080

3RZFE..RCH41,47

 1
17764 - DUCT, AIR CLEANER
52811-26040

1RZE,3RZFE..RCH4#

 1
17771A - BRACKET, AIR CLEANER
17771-75010

1RZE,3RZFE..RCH4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54140

1RZE,3RZFE..RCH4#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17860-75030

3RZFE..RCH41,47

 1
17805G - CLAMP, HOSE(FOR AIR CONNECTOR)
96111-10800

3RZFE..RCH41,47

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-75100

3RZFE..RCH41,47

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-96001

3RZFE..RCH41,47

NO.2

 1
96111-10900

3RZFE..RCH41,47

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-96001

3RZFE..RCH41,47

NO.2

 1
96111-10900

3RZFE..RCH41,47

NO.1

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-75070

3RZFE..RCH41,47

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10950

3RZFE..RCH41,47

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52812-26060

3RZFE..RCH41,47

 1
17912C - CLAMP, COOL AIR INTAKE DUCT, NO.2
96111-10830

1RZE,3RZFE..RCH4#

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-26030

3RZFE..RCH41,47

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-75010

3RZFE..RCH41,47

 1
Common parts
52861-26020
57442-95D00
88252-26010
90119-06353
90119-06593
90119-08171
90119-08471
90119-08A68
90179-06178
90179-06193
90179-06214
90389-09025
90480-16027
91621-40820
91643-80820
96134-42100
Linked diagrams
1708
