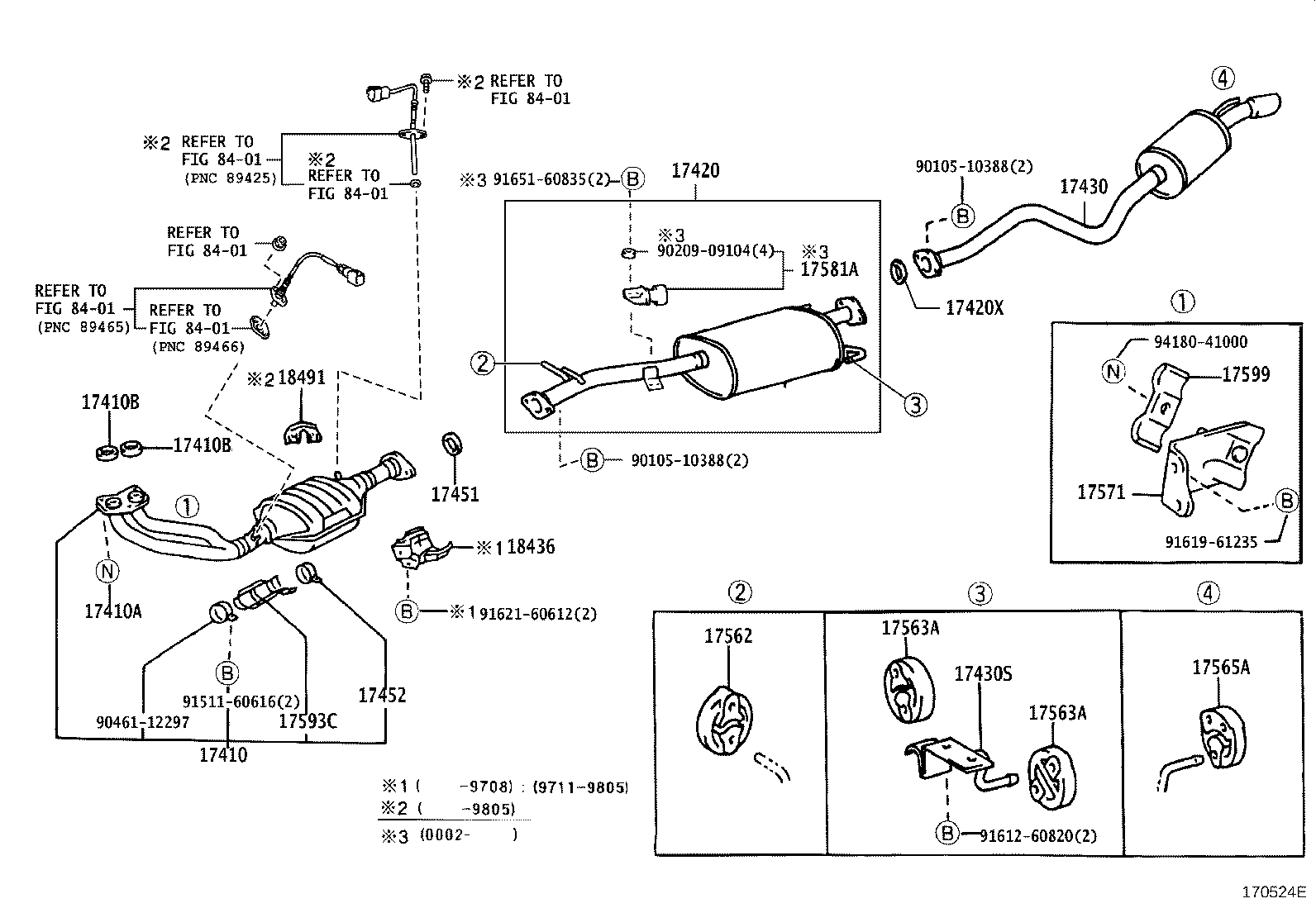

RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace
(9704- )3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-75140 |
3RZFE..RCH41,47 |
1 | ||
| 17410-75170 |
3RZFE..RCH41 |
1 | ||
| 17410-75170 |
3RZFE..RCH41 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
5L,1RZE,3RZFE..LXH4#,RCH4# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
3RZFE..RCH41,47 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
3RZFE..RCH41,47 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-75171 |
3RZFE..RCH41,47 |
1 | ||
| 17420-75170 |
3RZFE..RCH41,47 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06073 |
3RZFE..RCH41,47 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-75300 |
3RZFE..RCH41 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-54070 |
1KZTE,5L,1RZE,3RZFE..KCH4#,LXH4#,RCH4# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06076 |
1KZTE,3RZFE..KCH4#,RCH41,47 |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-75010 |
3RZFE..RCH41,47 |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17565-16080 |
1KZTE,5L,1RZE,3RZFE..KCH4#,LXH4#,RCH4# |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-74280 |
1KZTE,5L,1RZE,3RZFE..KCH4#,LXH4#,RCH4# 左側 |
1 | ||
| 17565-16080 |
1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT;5L,1RZE,3RZFE..LXH4#,RCH4# 右側 |
1 | ||
| 17565-46040 |
3RZFE..RCH41 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-74280 |
1KZTE,5L,1RZE,3RZFE..KCH4#,LXH4#,RCH4# 左側 |
1 | ||
| 17565-16080 |
1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT;5L,1RZE,3RZFE..LXH4#,RCH4# 右側 |
1 | ||
| 17565-46040 |
3RZFE..RCH41 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17561-73020 |
1KZTE,5L,1RZE,3RZFE..KCH4#,LXH4#,RCH4# |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-75100 |
3RZFE..RCH41,47 |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-75040 |
3RZFE..RCH41,47 |
1 | ||
| 17599 - HOLDER, EXHAUST PIPE SUPPORT STOPPER | ||||
| 17599-75010 |
3RZFE..RCH41,47 |
1 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18436-74020 |
3RZFE..RCH41..4D;3RZFE..RCH47..W08S |
1 | ||
| 18436-74020 |
3RZFE..RCH41,47 |
1 | ||
| 18491 - FLANGE, THERMOSENSOR INLET | ||||
| 18491-63010 |
3RZFE..RCH41..4D;1RZE,3RZFE..RCH42,47..STD,WINT |
1 | ||
| Common parts | ||||
| 90105-10388 | ||||
| 90209-09104 | ||||
| 90461-12297 | ||||
| 91511-60616 | ||||
| 91612-60820 | ||||
| 91619-61235 | ||||
| 91621-60612 | ||||
| 91651-60835 | ||||
| 94180-41000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
