RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace
Production
Apr 1997
-
Jul 1999
Engine
3RZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

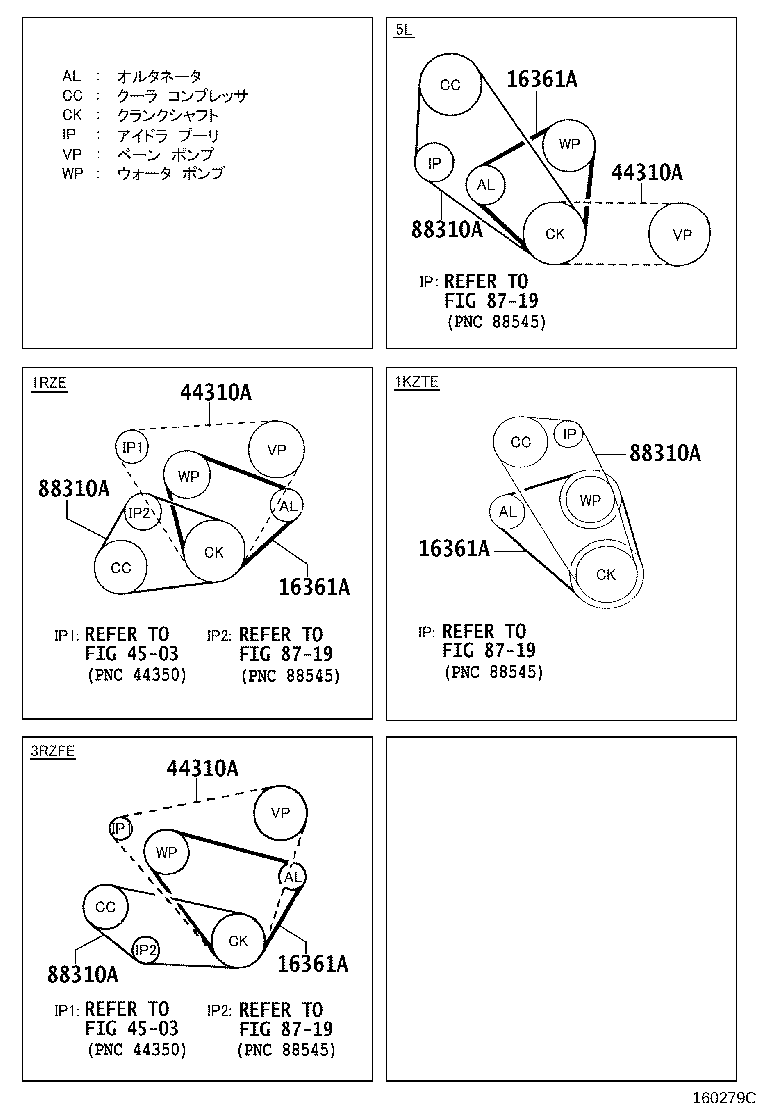

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02336 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02336 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02336 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02336 |
1RZE,3RZFE..RCH4# |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99364-21110 |
RCH41,47 長さ=1110 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99364-21110 |
RCH41,47 長さ=1110 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99364-21110 |
RCH41,47 長さ=1110 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-20940 |
RCH41,47 長さ=940 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-20940 |
RCH41,47 長さ=940 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-20940 |
RCH41,47 長さ=940 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-20940 |
RCH41,47 長さ=940 |
1 | ||
| Linked diagrams | ||||
| 4503 | ||||
| 8719 | ||||
