RCH41W-GFSQK (1997)
Toyota Regius/Touring Hiace

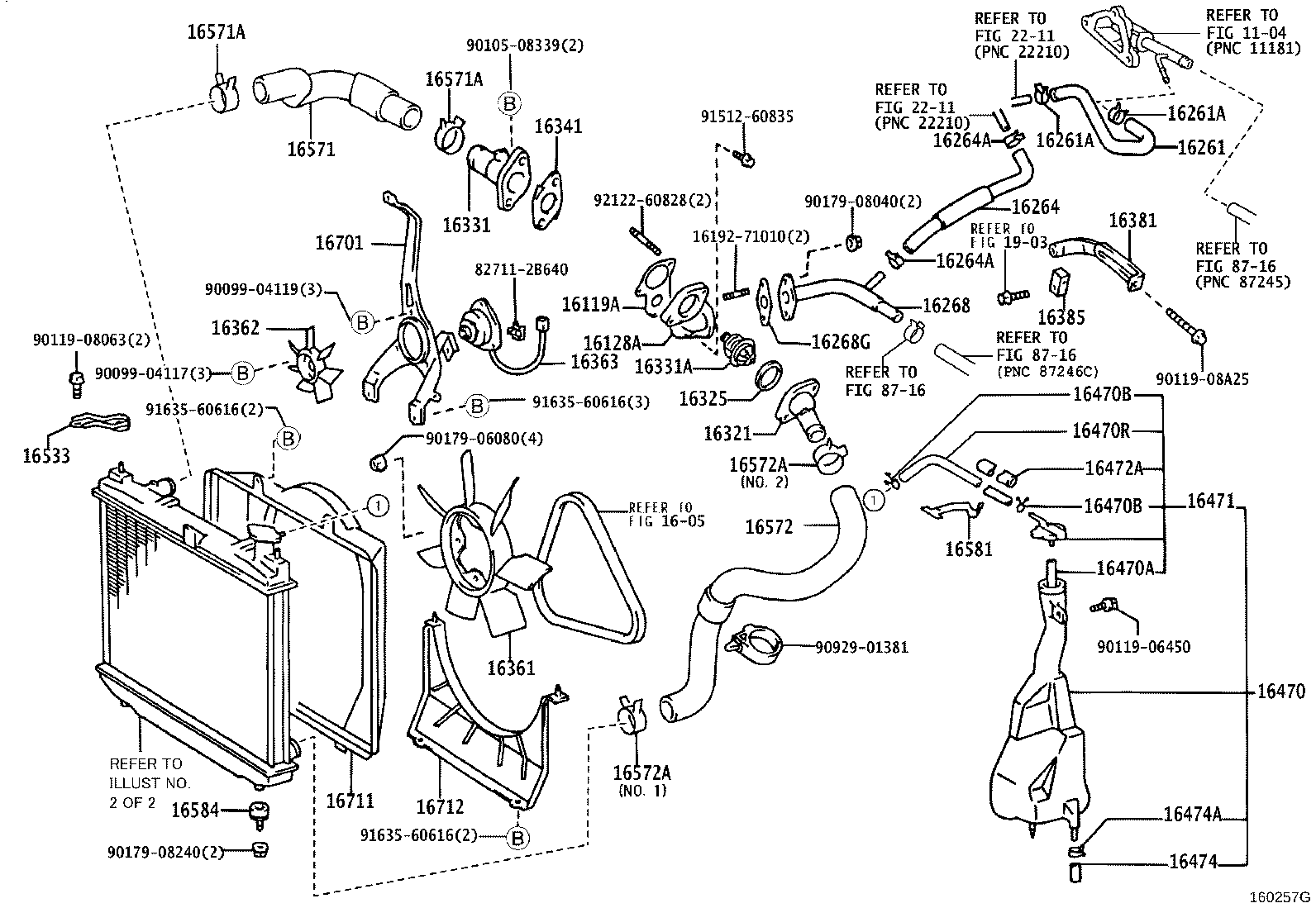

ILLUST NO. 1 OF 2(9704-9907)3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16119A - GASKET, THERMOSTAT GUIDE | ||||
| 16119-75020 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16128A - PLATE, WATER PUMP THERMOSTAT GUIDE | ||||
| 16128-75020 |
3RZFE..RCH41,47 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75040 |
3RZFE..RCH41,47 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZFE..RCH41,47 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
3RZFE..RCH41,47 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75040 |
3RZFE..RCH41,47 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1RZE,3RZFE..RCH4# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1RZE,3RZFE..RCH4# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75060 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 17175-75010 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0W010 |
3RZFE..RCH41,47 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-76010 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0W010 |
3RZFE..RCH41,47 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03101 |
1RZE,3RZFE..RCH4# *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-75020 |
3RZFE..RCH41,47 |
1 | ||
| 16361 - FAN | ||||
| 16361-75020 |
3RZFE..RCH41,47 |
1 | ||
| 16362 - FAN, NO.2 | ||||
| 16361-46070 |
3RZFE..RCH41,47 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-46020 |
3RZFE..RCH41,47 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-75040 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-75030 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75050 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1RZE,3RZFE..RCH4# *H,L=450 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1RZE,3RZFE..RCH4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1RZE,3RZFE..RCH4# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-54290 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75040 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16479-75050 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16474 - CAP(FOR RADIATOR RESERVE TANK DRAIN) | ||||
| 16474-54290 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16474A - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP) | ||||
| 90467-09173 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-54050 |
1RZE,3RZFE..RCH4# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-75080 |
3RZFE..RCH41,47 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1RZE,3RZFE..RCH4# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1RZE,3RZFE..RCH4# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-75110 |
3RZFE..RCH41,47 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1RZE,3RZFE..RCH4# NO.1 |
1 | ||
| 90467-37008 |
1RZE,3RZFE..RCH4# NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1RZE,3RZFE..RCH4# NO.1 |
1 | ||
| 90467-37008 |
1RZE,3RZFE..RCH4# NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-54060 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-54010 |
1RZE,3RZFE..RCH4# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-75060 |
3RZFE..RCH41,47 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-75070 |
3RZFE..RCH41,47 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75040 |
3RZFE..RCH41,47 |
1 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90105-08339 | ||||
| 90119-06450 | ||||
| 90119-08063 | ||||
| 90119-08A25 | ||||
| 90179-06080 | ||||
| 90179-08040 | ||||
| 90179-08240 | ||||
| 90929-01381 | ||||
| 91512-60835 | ||||
| 91635-60616 | ||||
| 92122-60828 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1605 | ||||
| 1903 | ||||
| 2211 | ||||
| 8716 | ||||

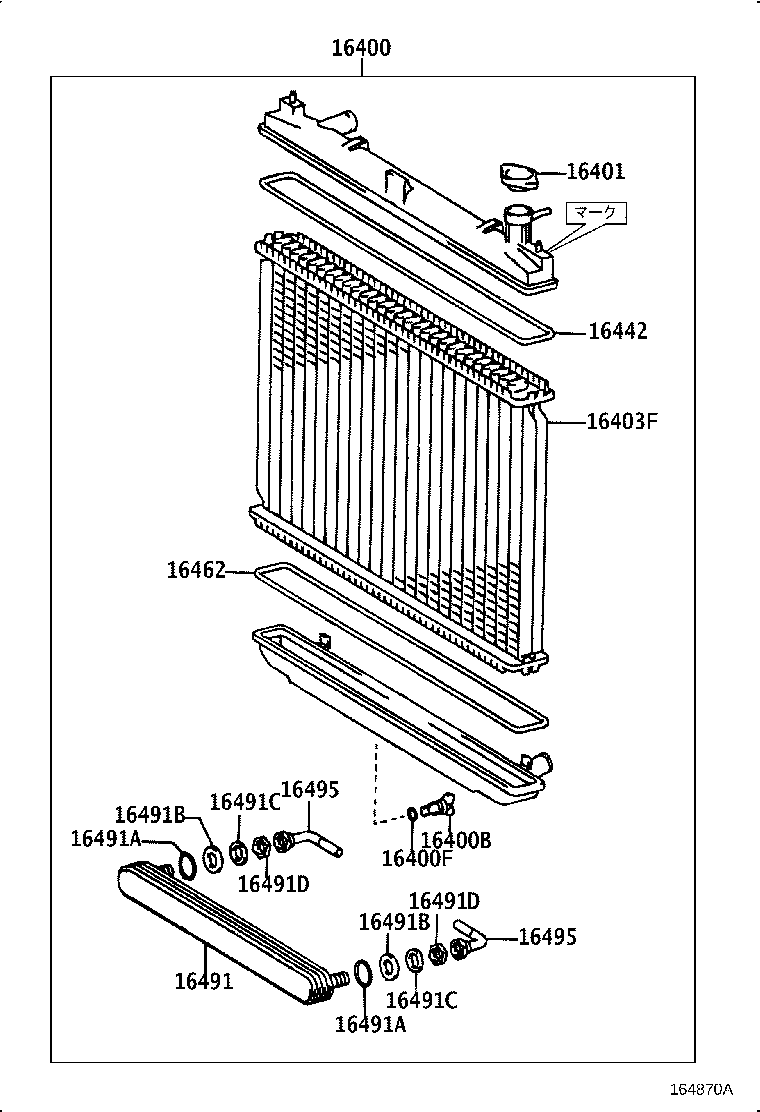

ILLUST NO. 2 OF 2(9704-9907)1RZE,3RZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-75220 |
3RZFE..RCH41,47 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1RZE,3RZFE..RCH4#..ATM |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-75150 |
1RZE,3RZFE..RCH4#..ATM |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-5B320 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-5B320 |
1RZE,3RZFE..RCH4# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-75150 |
3RZFE..RCH41,47 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-61170 |
3RZFE..RCH41,47 |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-61170 |
3RZFE..RCH41,47 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
3RZFE..RCH41,47 |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
3RZFE..RCH41,47 |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
3RZFE..RCH41,47 |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
3RZFE..RCH41,47 |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
3RZFE..RCH41,47 |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
3RZFE..RCH41,47 |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16497-17030 |
3RZFE..RCH41,47 |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16497-17030 |
3RZFE..RCH41,47 |
2 | ||
