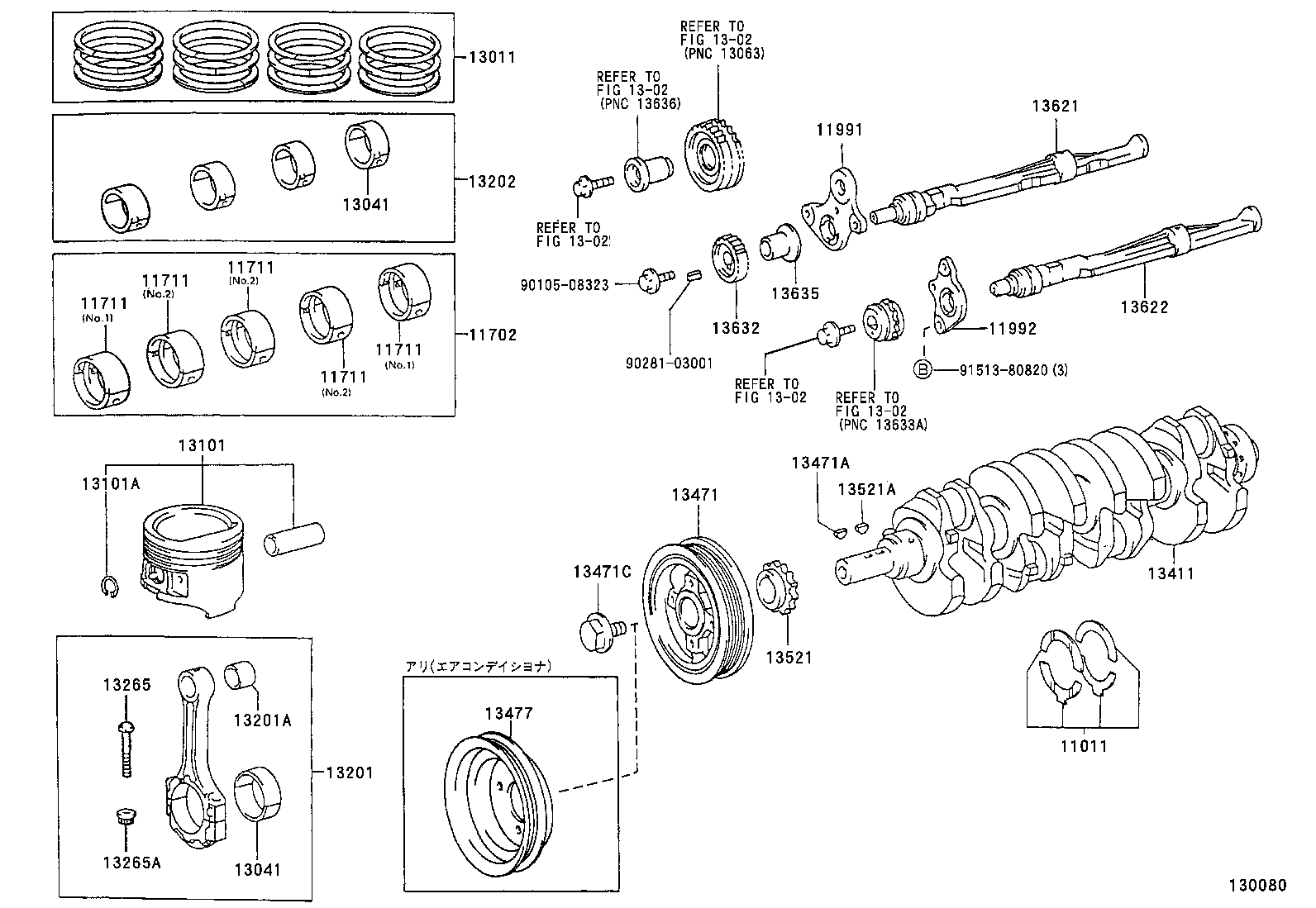

Toyota Regius/touring hiace RCH41 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11011 - WASHER SET, CRANKSHAFT THRUST
11011-75010	1RZE,3RZFE..RCH4# STD	04/1997 - 04/2002	1
11702 - BEARING SET, CRANKSHAFT
11704-75020	1RZE,3RZFE..RCH4# U/S 0.25	04/1997 - 04/1999	1
11711 - BEARING, CRANKSHAFT
11071-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.2	04/1997 - 04/1999	3
11701-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.1	04/1997 - 04/1999	2
11071-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.2	04/1997 - 04/1999	3
11701-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.1	04/1997 - 04/1999	2
11071-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.2	04/1997 - 04/1999	3
11701-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.1	04/1997 - 04/1999	2
11711 - BEARING, CRANKSHAFT
11071-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.2	04/1997 - 04/1999	3
11701-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.1	04/1997 - 04/1999	2
11071-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.2	04/1997 - 04/1999	3
11701-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.1	04/1997 - 04/1999	2
11071-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.2	04/1997 - 04/1999	3
11701-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.1	04/1997 - 04/1999	2
11711 - BEARING, CRANKSHAFT
11071-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.2	04/1997 - 04/1999	3
11701-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.1	04/1997 - 04/1999	2
11071-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.2	04/1997 - 04/1999	3
11701-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.1	04/1997 - 04/1999	2
11071-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.2	04/1997 - 04/1999	3
11701-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.1	04/1997 - 04/1999	2
11711 - BEARING, CRANKSHAFT
11071-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.2	04/1997 - 04/1999	3
11701-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.1	04/1997 - 04/1999	2
11071-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.2	04/1997 - 04/1999	3
11701-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.1	04/1997 - 04/1999	2
11071-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.2	04/1997 - 04/1999	3
11701-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.1	04/1997 - 04/1999	2
11711 - BEARING, CRANKSHAFT
11071-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.2	04/1997 - 04/1999	3
11701-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.1	04/1997 - 04/1999	2
11071-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.2	04/1997 - 04/1999	3
11701-7502003	1RZE,3RZFE..RCH4# MARK 3,NO.1	04/1997 - 04/1999	2
11071-7502001	1RZE,3RZFE..RCH4# MARK 1,NO.2	04/1997 - 04/1999	3
11701-7502002	1RZE,3RZFE..RCH4# MARK 2,NO.1	04/1997 - 04/1999	2
11991 - WASHER, BALANCESHAFT THRUST
11991-75010	3RZFE..RCH41,47	04/1997 - 04/2002	1
11992 - WASHER, BALANCESHAFT THRUST, NO.2
11992-75010	3RZFE..RCH41,47	04/1997 - 04/2002	1
13011 - RING SET, PISTON
13011-75040	3RZFE..RCH41,47 STD	04/1997 - 04/1998	1
13013-75040	3RZFE..RCH41,47 O/S 0.50	04/1997 - 04/1998	1
13041 - BEARING, CONNECTING ROD
13041-7502106	1RZE,3RZFE..RCH4# MARK 6:ｼﾕｳﾘｼﾖｻﾝｼﾖｳ,MARK 6	04/1997 - 04/2002	4
13041-7502104	1RZE,3RZFE..RCH4# MARK 4:ｼﾕｳﾘｼﾖｻﾝｼﾖｳ,MARK 4	04/1997 - 04/2002	4
13041-7502105	1RZE,3RZFE..RCH4# MARK 5:ｼﾕｳﾘｼﾖｻﾝｼﾖｳ,MARK 5	04/1997 - 04/2002	4
13041 - BEARING, CONNECTING ROD
13041-7502106	1RZE,3RZFE..RCH4# MARK 6:ｼﾕｳﾘｼﾖｻﾝｼﾖｳ,MARK 6	04/1997 - 04/2002	4
13041-7502104	1RZE,3RZFE..RCH4# MARK 4:ｼﾕｳﾘｼﾖｻﾝｼﾖｳ,MARK 4	04/1997 - 04/2002	4
13041-7502105	1RZE,3RZFE..RCH4# MARK 5:ｼﾕｳﾘｼﾖｻﾝｼﾖｳ,MARK 5	04/1997 - 04/2002	4
13101 - PISTON SUB-ASSY, W/PIN
13101-75040	3RZFE..RCH41,47 STD	04/1997 - 04/1998	4
13103-75040	3RZFE..RCH41,47 O/S 0.50	04/1997 - 04/1998	4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-28003	1RZE,3RZFE..RCH4#	04/1997 - 04/2002	8
13201 - ROD SUB-ASSY, CONNECTING
13201-79205	3RZFE..RCH41,47	04/1997 - 04/2002	4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73129	1RZE,3RZFE..RCH4#	04/1997 - 04/2002	4
13202 - BEARING SET, CONNECTING ROD
13204-75021	1RZE,3RZFE..RCH4# U/S 0.25	04/1997 - 04/2002	1
13265 - BOLT, CONNECTING ROD
13265-75030	1RZE,3RZFE..RCH4#	04/1997 - 04/2002	8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-09009	1RZE,3RZFE..RCH4#	04/1997 - 04/2002	8
13411 - CRANKSHAFT
13411-75020	3RZFE..RCH41,47	04/1997 - 04/2002	1
13471 - PULLEY, CRANKSHAFT
13408-75030	1RZE,3RZFE..RCH4#	04/1997 - 04/2002	1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05005	1RZE,3RZFE..RCH4#	04/1997 - 04/2002	1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-16041	1RZE,3RZFE..RCH4#	04/1997 - 04/2002	1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-26050	3RZFE..RCH41,47	04/1997 - 12/2999	1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-75010	1RZE,3RZFE..RCH4#	04/1997 - 04/2002	1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05005	1RZE,3RZFE..RCH4#	04/1997 - 04/2002	1
13621 - BALANCESHAFT, NO.1
13621-75010	3RZFE..RCH41,47	04/1997 - 04/2002	1
13622 - BALANCESHAFT, NO.2
13622-75010	3RZFE..RCH41,47	04/1997 - 04/2002	1
13632 - GEAR, BALANCESHAFT DRIVEN, NO.1
13632-75010	3RZFE..RCH41,47	04/1997 - 04/2002	1
13635 - SPACER, BALANCESHAFT THRUST
13635-75010	3RZFE..RCH41,47	04/1997 - 04/2002	1
Common parts
90105-08323
90281-03001
91513-80820
Linked diagrams
1302

RCH41W-GFSQK (1997)

(9704- )3RZFE
