RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )1RZE,3RZFE

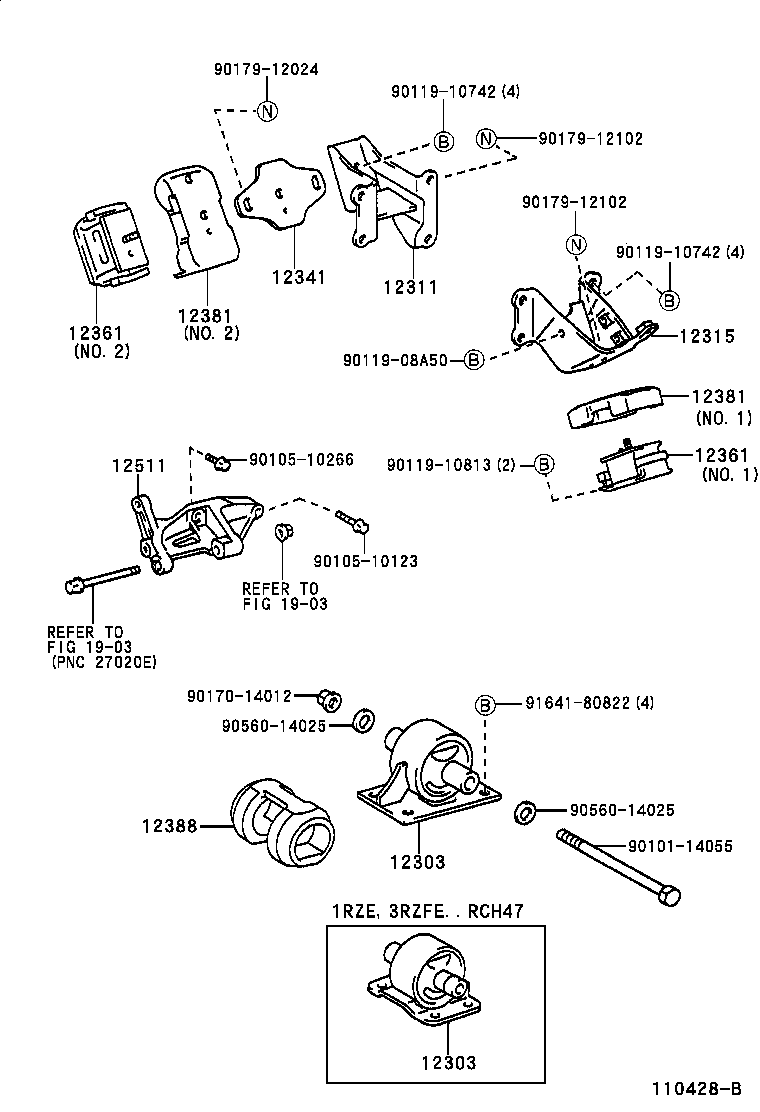

Click highlighted areas on diagram

diagram 12303 12303 12311 12315 12341 12361 12361 12381 12381 12388 12511 1903 1903 9010114055 9010510123 9010510266 9011908A50 9011910742 9011910742 9011910813 9017014012 9017912024 9017912102 9017912102 9056014025 9056014025 9164180822
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-54060

1RZE,3RZFE..RCH41,42..ATM

 1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-54060

1RZE,3RZFE..RCH41,42..ATM

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-75070

1RZE,3RZFE..RCH4#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75060

1RZE,3RZFE..RCH4#

 1
12341 - SPACER, ENGINE MOUNTING
12341-75010

1RZE,3RZFE..RCH4#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75040

1RZE,3RZFE..RCH4#

NO.2

 1
12361-38130

1RZE,3RZFE..RCH4#

NO.1

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75040

1RZE,3RZFE..RCH4#

NO.2

 1
12361-38130

1RZE,3RZFE..RCH4#

NO.1

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-75050

1RZE,3RZFE..RCH4#

NO.2

 1
12381-75030

1RZE,3RZFE..RCH4#

NO.1

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-75050

1RZE,3RZFE..RCH4#

NO.2

 1
12381-75030

1RZE,3RZFE..RCH4#

NO.1

 1
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-54020

1RZE,3RZFE..RCH41,42..ATM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-75040

3RZFE..RCH4#

 1
Common parts
90101-14055
90105-10123
90105-10266
90119-08A50
90119-10742
90119-10813
90170-14012
90179-12024
90179-12102
90560-14025
91641-80822
Linked diagrams
1903
