RCH41W-GFSQK (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 3RZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )3RZFE

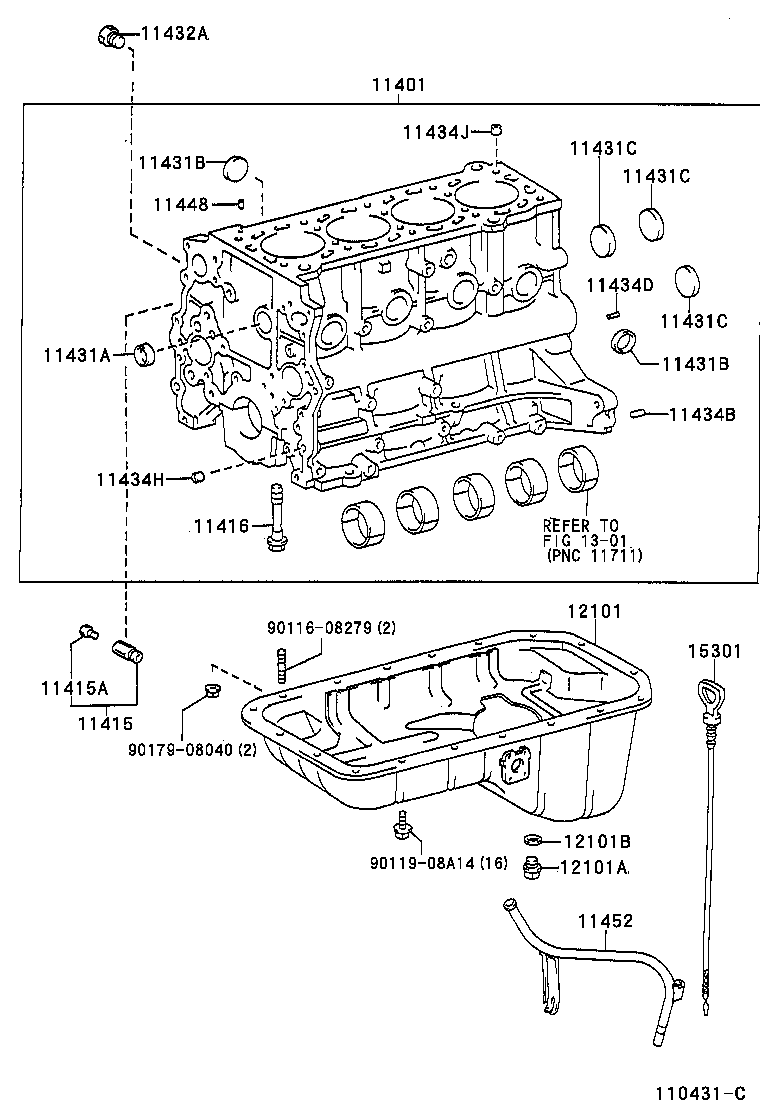

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431B 11431B 11431C 11431C 11431C 11432A 11434B 11434D 11434H 11434J 11448 11452 12101 12101A 12101B 1301 15301 9011608279 9011908A14 9017908040
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79685

3RZFE..RCH41,47

 1
11401-79686

3RZFE..RCH41,47

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09091

1RZE,3RZFE..RCH4#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1RZE,3RZFE..RCH4#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02092

1RZE,3RZFE..RCH4#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63000

1RZE,3RZFE..RCH4#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63500

1RZE,3RZFE..RCH4#

 8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63500

1RZE,3RZFE..RCH4#

 8
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

3RZFE..RCH41,47

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

3RZFE..RCH41,47

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-64000

3RZFE..RCH41,47

 3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53009

3RZFE..RCH41,47

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1RZE,3RZFE..RCH4#

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1RZE,3RZFE..RCH4#

長さ=14,外径=6

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11005

3RZFE..RCH41,47

 3
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

1RZE,3RZFE..RCH4#

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
90977-02011

3RZFE..RCH41,47

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-75020

1RZE,3RZFE..RCH4#

 1
12101 - PAN SUB-ASSY, OIL
12101-75060

1RZE,3RZFE..RCH41,42

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

1RZE,3RZFE..RCH4#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1RZE,3RZFE..RCH4#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-75020

1RZE,3RZFE..RCH41,42

 1
Common parts
90116-08279
90119-08A14
90179-08040
Linked diagrams
1301
