LXH49V-SRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#,RCH42

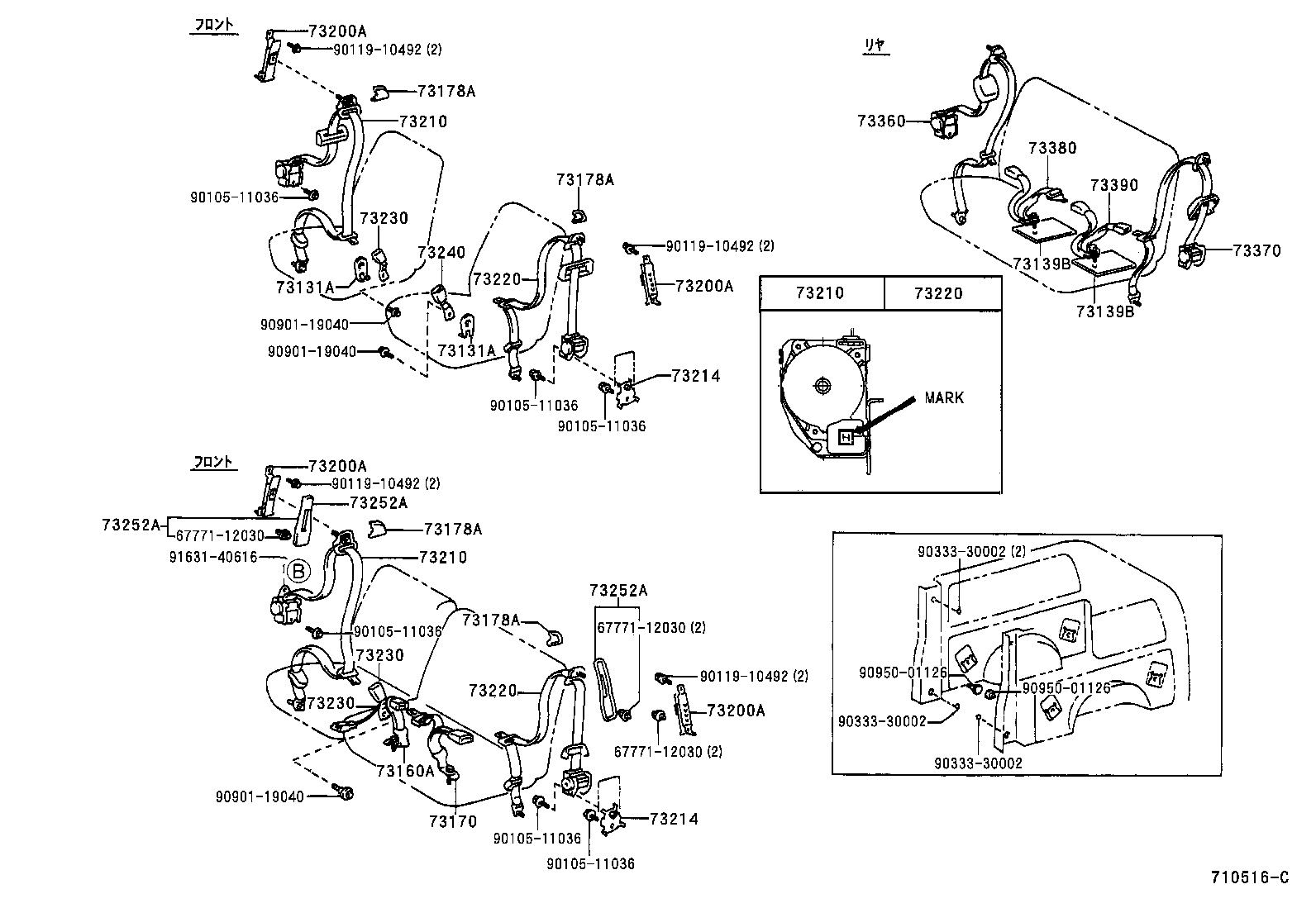

Click highlighted areas on diagram

diagram 6777112030 6777112030 6777112030 73131A 73131A 73139B 73139B 73160A 73170 73178A 73178A 73178A 73178A 73200A 73200A 73200A 73200A 73210 73210 73210 73214 73214 73220 73220 73220 73230 73230 73230 73240 73252A 73252A 73252A 73360 73370 73380 73390 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9011910492 9011910492 9011910492 9011910492 9033330002 9033330002 9033330002 9090119040 9090119040 9090119040 9095001126 9095001126 9163140616
Part # Description Qty Price
73131A - BRACKET, SEAT BELT
73131-26010

KCH4#,LXH4#,RCH41,47..G,V,WISTD

 2
73131-26010

LXH4#,RCH42..STD

 1
73131A - BRACKET, SEAT BELT
73131-26010

KCH4#,LXH4#,RCH41,47..G,V,WISTD

 2
73131-26010

LXH4#,RCH42..STD

 1
73139B - COVER, SEAT BELT ANCHOR
73139-95J00B0

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 2
73139-95J00B3

LXH4#,RCH42..STD

SHADOW GRAY,TRIM1#

 2
73139B - COVER, SEAT BELT ANCHOR
73139-95J00B0

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 2
73139-95J00B3

LXH4#,RCH42..STD

SHADOW GRAY,TRIM1#

 2
73160A - SEAT BELT ASSY, FRONT CENTER, RH
73170-26030B0

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73170-26030B2

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73170 - BELT ASSY, FRONT CENTER, LH
73160-26070B0

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73160-26070B1

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B6

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B6

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B6

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B6

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26011B2

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26011B2

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26011B2

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26011B2

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26220B1

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-26260B0

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73210-26220B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-26260B1

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73210-26540B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-26560B0

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26220B1

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-26260B0

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73210-26220B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-26260B1

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73210-26540B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-26560B0

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26220B1

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-26260B0

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73210-26220B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-26260B1

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73210-26540B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-26560B0

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-26010

LXH4#,RCH42

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-26010

LXH4#,RCH42

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-26150B1

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26151B1

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26100B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220-26100B1

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220-26150B0

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26480B0

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26460B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-26150B1

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26151B1

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26100B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220-26100B1

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220-26150B0

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26480B0

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26460B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-26150B1

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26151B1

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26100B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220-26100B1

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220-26150B0

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26480B0

LXH4#..STD

BLUISH GRAY,TRIM1#

 1
73220-26460B0

LXH4#,RCH42..STD

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26030B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

BLUISH GRAY,TRIM1#

 1
73230-26180B0

LXH4#;KCH4#,RCH4#..STD,WISTD

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26030B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

BLUISH GRAY,TRIM1#

 1
73230-26180B0

LXH4#;KCH4#,RCH4#..STD,WISTD

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26030B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

BLUISH GRAY,TRIM1#

 1
73230-26180B0

LXH4#;KCH4#,RCH4#..STD,WISTD

SHADOW GRAY,TRIM1#

 1
73252A - COVER, SHOULDER BELT ANCHOR ADJUST
73252-26010B1

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73252A - COVER, SHOULDER BELT ANCHOR ADJUST
73252-26010B1

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73252A - COVER, SHOULDER BELT ANCHOR ADJUST
73252-26010B1

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-26250B1

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73360-26250B2

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73360-26580B0

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-26130B2

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73370-26380B0

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73370-26130B1

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-26110B1

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73380-26110B2

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73390-26070B1

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
73390-26070B2

LXH4#,RCH42..STD

BLUISH GRAY,TRIM1#

 1
Common parts
67771-12030
90105-11036
90119-10492
90333-30002
90901-19040
90950-01126
91631-40616
