LXH49V-SRSDS (1997)
Toyota Regius/Touring Hiace
Production
Jun 1997
-
May 2002
Engine
5L
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9706- )LXH4#,RCH42

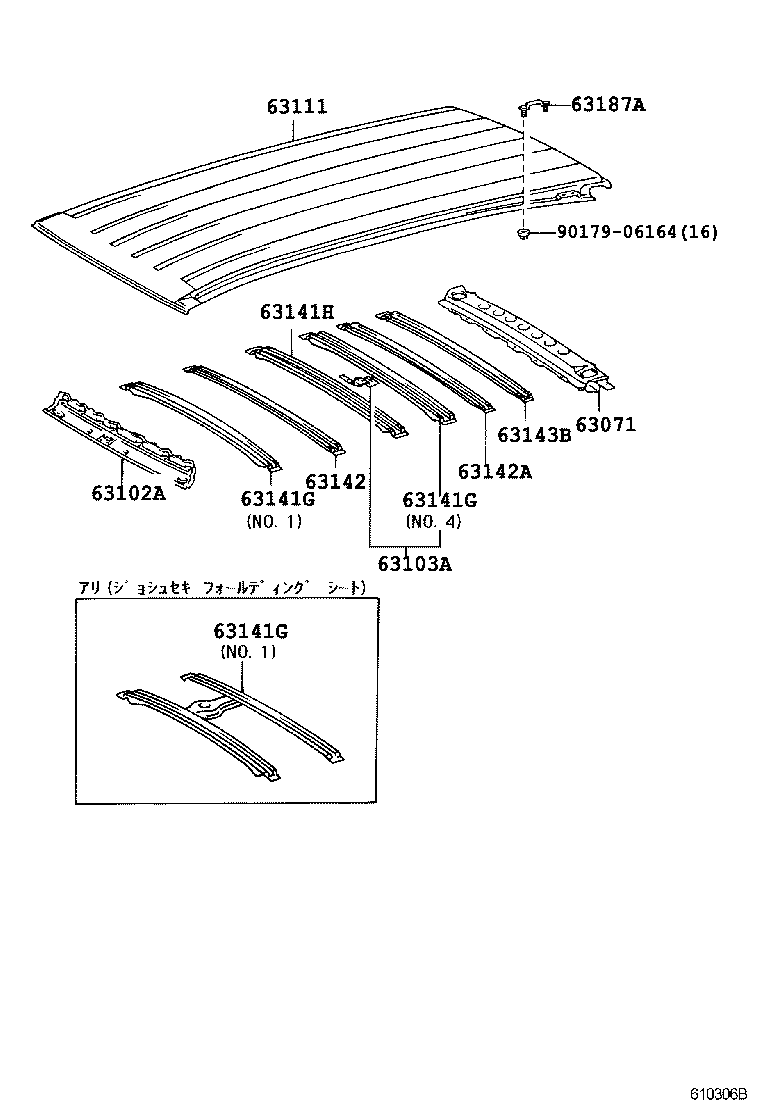

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-26140 |
LXH4#,RCH42..STD |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-26110 |
LXH4#,RCH42..STD |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-26160 |
LXH4#,RCH42..STD |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-26250 |
LXH4#,RCH42 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-26130 |
LXH4#,RCH42..STD |
1 | ||
| 63141-26130 |
LXH4#,RCH42..STD NO.4 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-26130 |
LXH4#,RCH42..STD |
1 | ||
| 63141-26130 |
LXH4#,RCH42..STD NO.4 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-26130 |
LXH4#,RCH42..STD |
1 | ||
| 63141-26130 |
LXH4#,RCH42..STD NO.4 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-26130 |
LXH4#,RCH42 |
1 | ||
| 63141-26140 |
LXH4#,RCH42 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-26090 |
LXH4#,RCH42 |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-26090 |
LXH4#,RCH42 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63142-26090 |
LXH4#,RCH42 |
1 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63107-26030 |
LXH4#,RCH42 |
8 | ||
| Common parts | ||||
| 90179-06164 | ||||
