LXH49V-RRSES (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )5L

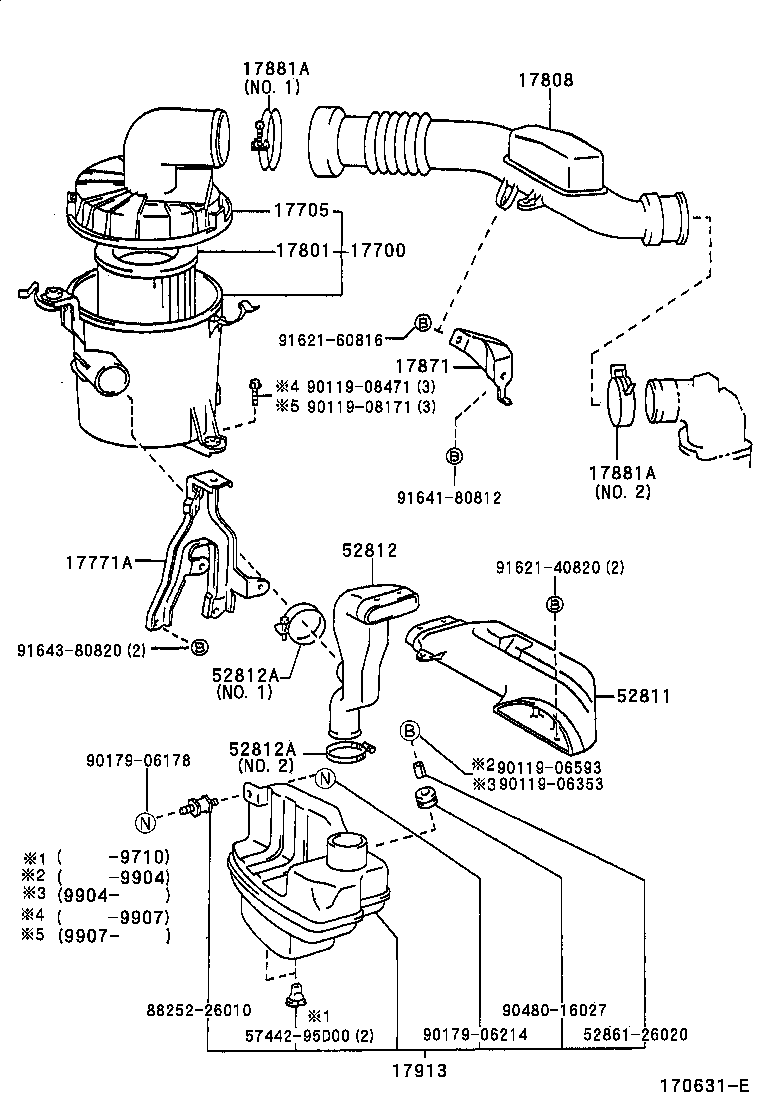

Click highlighted areas on diagram

diagram 17700 17705 17771A 17801 17808 17871 17881A 17881A 17913 52811 52812 52812A 52812A 5286126020 5744295D00 8825226010 9011906353 9011906593 9011908171 9011908471 9017906178 9017906214 9048016027 9162140820 9162160816 9164180812 9164380820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54830

5L..LXH4#

 1
17700-54831

5L..LXH4#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54340

5L..LXH4#

 1
17771A - BRACKET, AIR CLEANER
17771-75010

5L..LXH4#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54140

5L..LXH4#

 1
17808 - HOSE SUB-ASSY, AIR CLEANER
17808-54020

5L..LXH4#

 1
17871 - STAY, AIR CONNECTOR
17871-54010

5L..LXH4#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90467-58002

5L..LXH4#

NO.2

 1
96111-10800

5L..LXH4#

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90467-58002

5L..LXH4#

NO.2

 1
96111-10800

5L..LXH4#

NO.1

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-26030

5L..LXH4#

 1
52811 - DUCT, COOL AIR INTAKE, NO.1
52811-26040

LXH4#

 1
52812 - DUCT, COOL AIR INTAKE, NO.2
52812-26060

LXH4#

 1
52812A - CLAMP, HOSE(FOR COOL AIR INTAKE)
90460-95001

LXH4#

NO.2

 1
96111-10830

LXH4#

NO.1

 1
52812A - CLAMP, HOSE(FOR COOL AIR INTAKE)
90460-95001

LXH4#

NO.2

 1
96111-10830

LXH4#

NO.1

 1
Common parts
52861-26020
57442-95D00
88252-26010
90119-06353
90119-06593
90119-08171
90119-08471
90179-06178
90179-06214
90480-16027
91621-40820
91621-60816
91641-80812
91643-80820
