LXH49V-RRSDS (1997)
Toyota Regius/Touring Hiace
Production
Jun 1997
-
May 2002
Engine
5L
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9706- )LXH4#

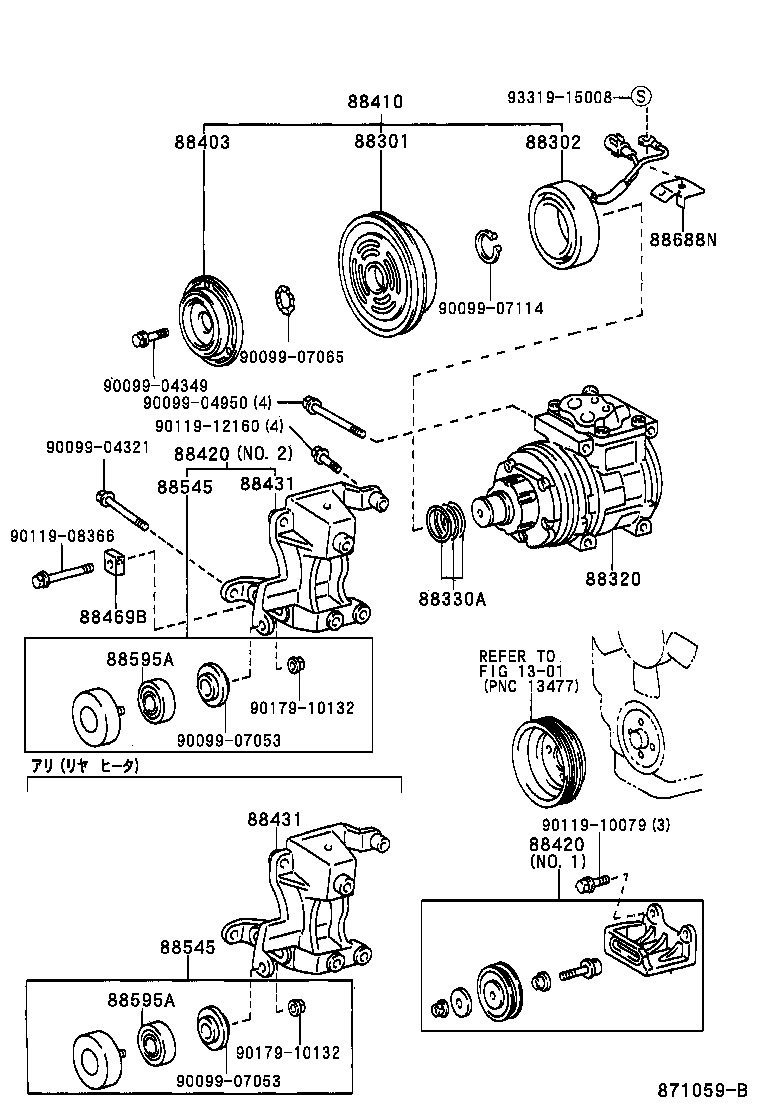

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-26030 |
LXH4# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22310 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88411-2A030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26600 |
LXH4#,RCH42..STD |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88403-30290 |
LXH4#,RCH42 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-35250 |
LXH4# |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-26200 |
LXH4# NO.1 |
1 | ||
| 88420-26210 |
LXH4#..STD NO.2 |
1 | ||
| 88420-26200 |
LXH4#..STD NO.1 |
1 | ||
| 88420-26200 |
LXH4# |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-26200 |
LXH4# NO.1 |
1 | ||
| 88420-26210 |
LXH4#..STD NO.2 |
1 | ||
| 88420-26200 |
LXH4#..STD NO.1 |
1 | ||
| 88420-26200 |
LXH4# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-95J01 |
LXH4#..STD |
1 | ||
| 88431-26300 |
LXH4# ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-95J01 |
LXH4#..STD |
1 | ||
| 88431-26300 |
LXH4# ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 88469B - COLLAR | ||||
| 88469-30280 |
LXH4# |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-26070 |
LXH4# |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-26070 |
LXH4# |
1 | ||
| 88595A - BEARING (FOR COOLER IDLE PULLEY) | ||||
| 90099-10015 |
LXH4# |
1 | ||
| 88595A - BEARING (FOR COOLER IDLE PULLEY) | ||||
| 90099-10015 |
LXH4# |
1 | ||
| 88688N - BRACKET, COOLER | ||||
| 88688-2D770 |
KCH4#,LXH4#,RCH42 NO.1 |
1 | ||
| 88688-2D770 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 90099-04321 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07053 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08366 | ||||
| 90119-10079 | ||||
| 90119-12160 | ||||
| 90179-10132 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1301 | ||||
