LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

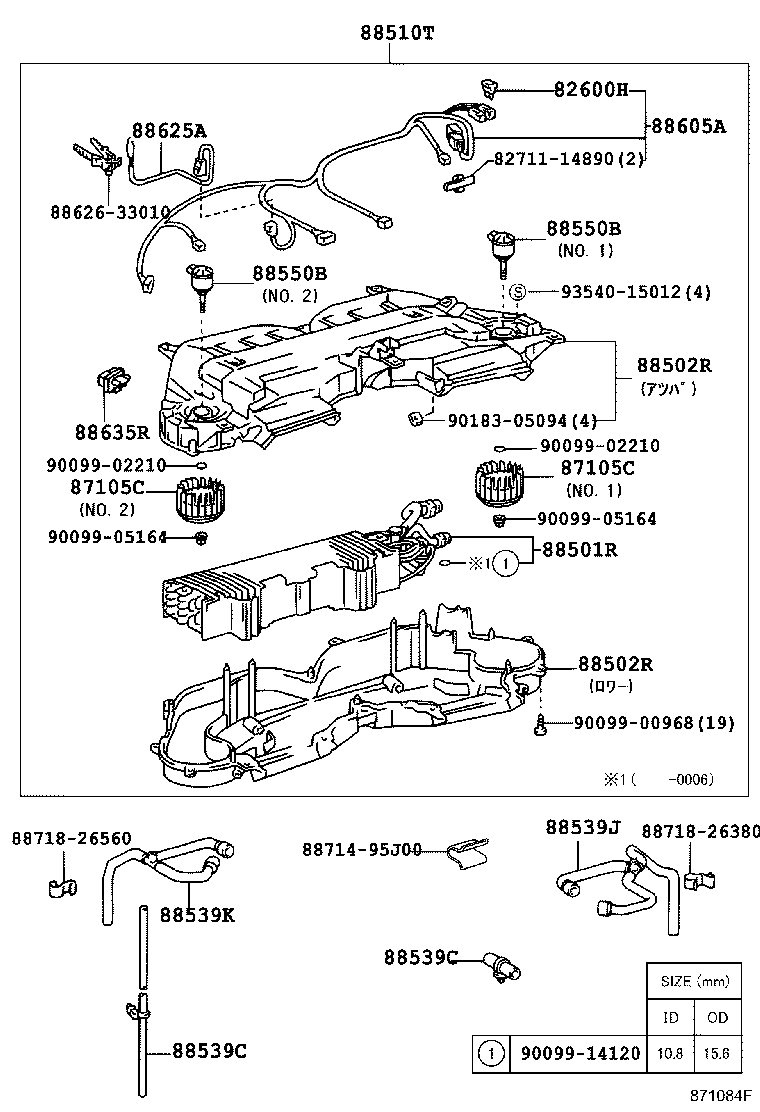

ILLUST NO. 2 OF 3(9706- )LXH4#

Click highlighted areas on diagram

ﾘﾔ---ﾏﾆﾕｱﾙ

diagram 82600H 8271114890 87105C 87105C 88501R 88502R 88502R 88510T 88539C 88539C 88539J 88539K 88550B 88550B 88605A 88625A 8862633010 88635R 8871495J00 8871826380 8871826560 9009900968 9009902210 9009902210 9009905164 9009905164 9009914120 9018305094 9354015012
Part # Description Qty Price
82600H - FUSE, FUSE BLOCK
90982-09005

KCH4#,LXH4#,RCH41,47..4D..(G,V,WISTD)

7.5A

 2
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-26141

KCH4#,LXH4#,RCH41,47..4D..(G,V,WISTD)

 1
Common parts
82711-14890
88626-33010
88714-95J00
88718-26380
88718-26560
90099-00968
90099-02210
90099-05164
90099-14120
90183-05094
93540-15012
