LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#,RCH42..ATM

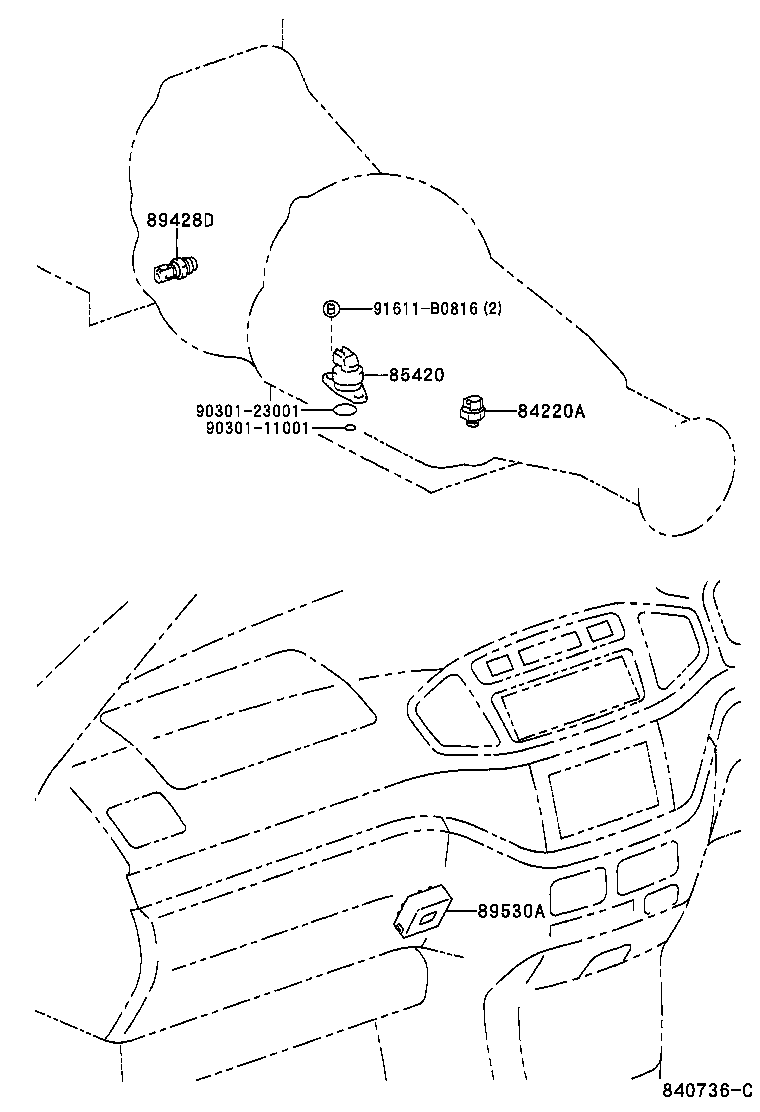

Click highlighted areas on diagram

diagram 84220A 85420 89428D 89530A 9030111001 9030123001 91611B0816
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
83531-12010

LXH4#,RCH42..ATM

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30160

LXH4#,RCH42..ATM

 1
89428D - SWITCH, TEMPERATURE, NO.2
89428-60090

LXH49,RCH47..ATM

 1
89530A - COMPUTER ASSY, TRANSMISSION CONTROL
89530-26140

LXH49..ATM

 1
Common parts
90301-11001
90301-23001
91611-B0816
