LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

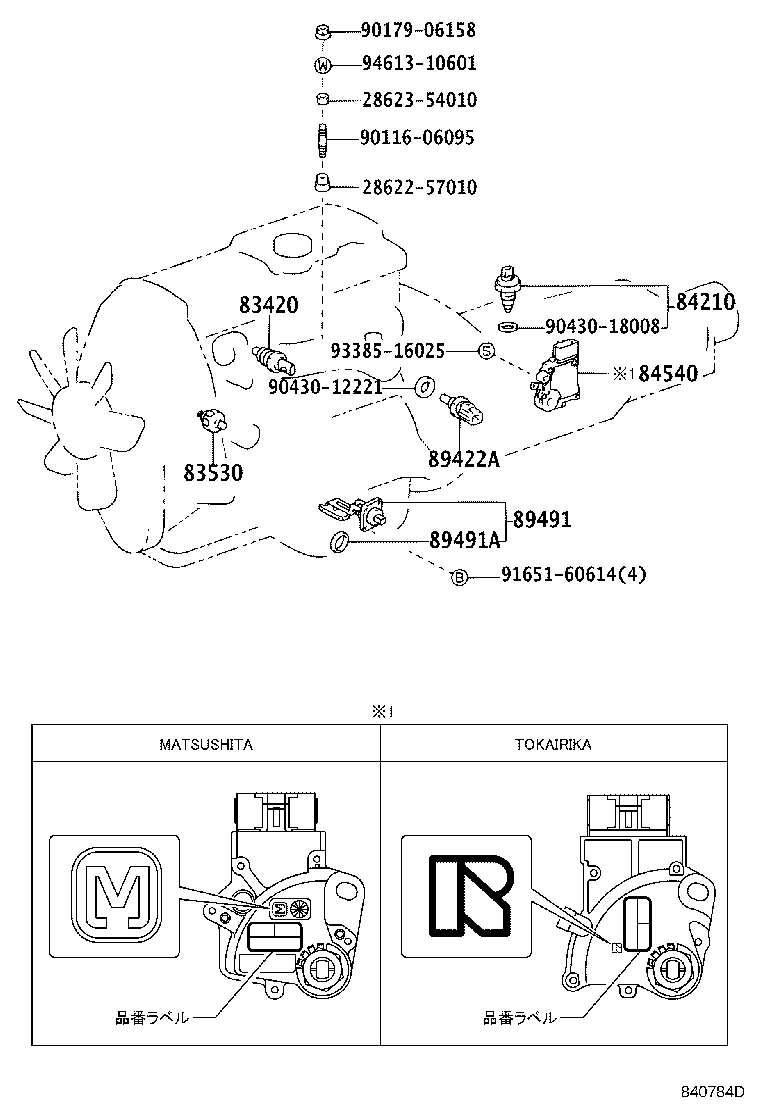

ILLUST NO. 1 OF 8(9706- )LXH4#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ

diagram 2862257010 2862354010 83420 83530 84210 84540 89422A 89491 89491A 9011606095 9017906158 9043012221 9043018008 9165160614 9338516025 9461310601
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040

KCH4#,LXH4#,RCH42

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60030

LXH4#

 1
83530-30060

LXH4#

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-30290

RCH41..4D;LXH4#..ATM;RCH47..W08S

東海理化

 1
84540-30300

RCH41..4D;LXH4#..ATM;RCH47..W08S

MATSUSHITA

 1
84540-30290

LXH4#,RCH42..ATM

 1
89422A - SENSOR, WATER TEMPERATURE
89422-20010

LXH4#

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26160

LXH4#

 1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010

KCH4#,LXH4#,RCH4#

 1
89493-60010

LXH4#,RCH47

 1
89493-60010

KCH4#,LXH4#,RCH47

 1
Common parts
28622-57010
28623-54010
90116-06095
90179-06158
90430-12221
90430-18008
91651-60614
93385-16025
94613-10601
