LXH49V-RRSDS (1997)
Toyota Regius/Touring Hiace

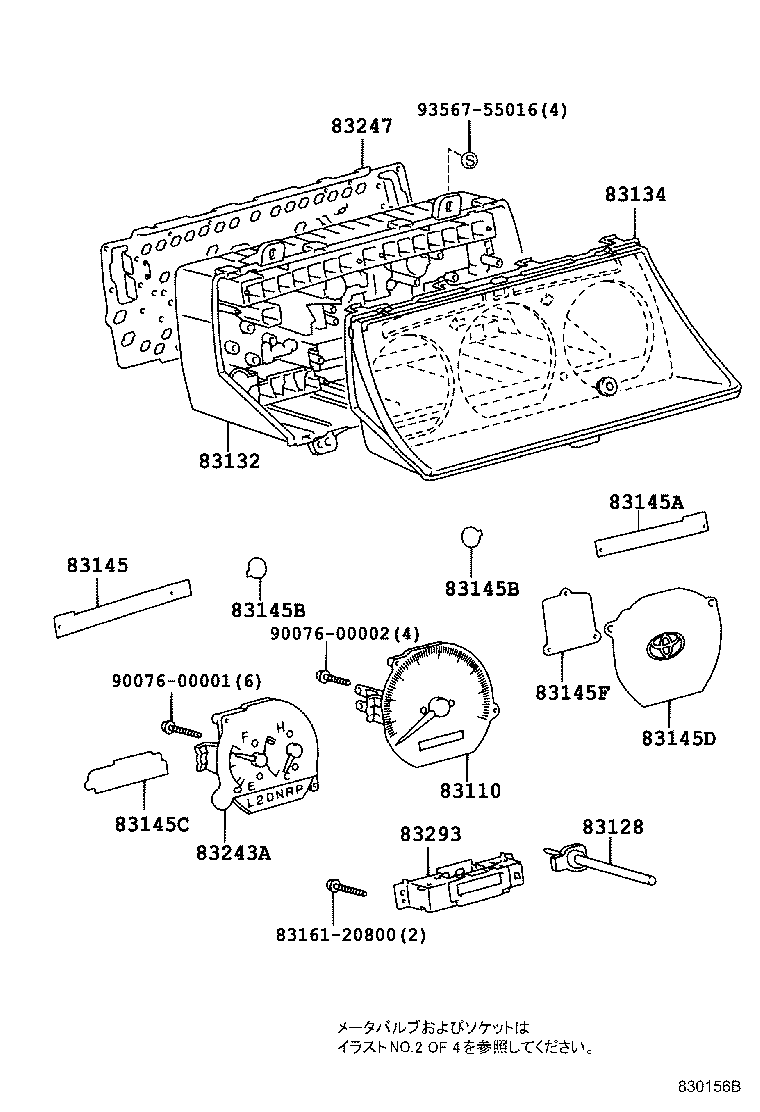

ILLUST NO. 1 OF 4(9706- )LXH4#,RCH42..STD
ｱﾅﾛｸﾞﾒ-ﾀ, ﾅｼ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26110 |
KCH4#..E;LXH4#,RCH42..STD YAZAKI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-26380 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 83224-26380 |
LXH4#;KCH4#,RCH41..G08S,W08S |
1 | ||
| 83224-26380 |
LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-26530 |
KCH4#..E;LXH4#,RCH42..STD |
1 | ||
| 83841-26530 |
KCH4#..E;LXH4#,RCH42..STD |
1 | ||
| 83841-26530 |
KCH4#..E;LXH4#..STD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-26300 |
LXH4#..ATM;KCH4#,RCH41,47..G08S,W08S |
1 | ||
| 83821-26300 |
LXH4#..ATM;KCH46..E,STD,WINT;KCH40,RCH4#..ATM..(E,STD,V,WINT,WISTD) |
1 | ||
| 83822-26300 |
LXH4#..ATM;KCH4#,RCH42,47..STD,V,WISTD |
1 | ||
| 83821-26300 |
LXH4#..ATM;KCH4#,RCH41..G08S,W08S |
1 | ||
| 83821-26300 |
LXH4#..ATM;KCH4#,RCH4#..STD,V,WISTD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-26530 |
LXH4# |
1 | ||
| 83831-26530 |
LXH4#,RCH42 |
1 | ||
| 83831-26530 |
LXH4#,RCH42 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-26600 |
LXH4#;KCH4#..E,STD,V,WINT,WISTD |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KCH46,LXH4#;KCH40,RCH41..G08S,W07S,W08S |
2 | ||
| 83833-26010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 83833-26010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-26010 |
KCH46,LXH4#;KCH40,RCH41..G08S,W07S,W08S |
2 | ||
| 83833-26010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 83833-26010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83832-26390 |
LXH4#..ATM;KCH4#,RCH41,47..G08S,W08S |
1 | ||
| 83832-26390 |
LXH4#..ATM;KCH4#,RCH4#..ATM..(E,STD,V,WINT,WISTD) |
1 | ||
| 83832-26390 |
LXH4#..ATM;KCH4#,RCH41..G08S,W08S |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83832-26530 |
LXH4#..STD |
1 | ||
| 83832-26530 |
LXH4#,RCH42..STD |
1 | ||
| 83832-26530 |
LXH4#,RCH42..STD |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83166-26020 |
LXH4#,RCH42..STD |
1 | ||
| 83166-26020 |
LXH4#..STD |
1 | ||
| 83166-26020 |
LXH4#,RCH42..STD |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-26550 |
KCH4#..E;LXH4#,RCH42..ATM..STD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-26560 |
LXH49..ATM..STD |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-26010 |
LXH4# |
1 | ||
| Common parts | ||||
| 83161-20800 | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 93567-55016 | ||||
