Toyota Regius/touring hiace LXH49 WIRING & CLAMP

LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002

Engine 5L

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(9706- )LXH4#

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾜｲﾔ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-2N670	LXH4#..STD	06/1997 - 12/2999	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-26330	LXH4#..STD	06/1997 - 04/1998	1
82112-26330	LXH4#	04/1998 - 12/2999	1
82112-26340	LXH4# ｱﾘ(ABS)	06/1997 - 12/2999	1
82121 - WIRE, ENGINE
82121-26520	LXH49..ATM	06/1997 - 04/1998	1
82121-26521	LXH49..ATM	04/1998 - 12/2999	1
82122 - WIRE, ENGINE, NO.2
82122-26370	LXH4#..ATM ｶﾝﾚｲﾁｼﾖｳ	06/1997 - 12/2999	1
82122-26360	LXH4#..ATM	06/1997 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-26080	KCH4#,LXH4#..ATM	04/1997 - 12/2999	1
82124 - WIRE, ENGINE, NO.4
82124-26120	LXH4#	06/1997 - 12/2999	1
82210C - FUSIBLE LINK
90982-08203	KCH4#,LXH4# 80A,ｵｽ端子,黒	04/1997 - 12/2999	1
90982-08282	KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤	04/1997 - 12/2999	1
90982-08190	KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄	04/1997 - 12/2999	1
90982-08246	LXH4#,RCH42 100A,ｵｽ端子,青	06/1997 - 12/2999	1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-26020	KCH4#,LXH4#	04/1997 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2B730	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2B730	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	2
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	KCH4#,LXH4#	04/1997 - 12/2999	1
Common parts
90119-06390
90119-08063
90179-06158
91621-40814
91651-61016
Linked diagrams
8401

ILLUST NO. 2 OF 8(9704-9907)

Click highlighted areas on diagram

ｲﾝﾊﾟﾈ & ｶｳﾙﾜｲﾔ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-2F320	LXH4#..STD TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ	06/1997 - 04/1998	1
82131-2F330	LXH4#..STD TYPE X:ｲﾗｽﾄｻﾝｼﾖｳ	06/1997 - 04/1998	1
82131-2F480	LXH4#..STD TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ	06/1997 - 04/1998	1
82131-2F321	LXH4#..STD TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 07/1999	1
82131-2F481	LXH4#..STD TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 07/1999	1
82131-2F331	LXH4#..STD TYPE X:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 07/1999	1
82131-2F332	LXH4#..STD ｱﾘ(ABS)	07/1999 - 12/2999	1
82131-2F322	LXH4#..STD ｱﾘ(*80,ｳﾝﾃﾝｾｷ);ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(ﾋﾞﾙﾄｲﾝﾀｲﾌﾟﾘﾔﾋ-ﾀ)	07/1999 - 12/2999	1
82131-2F482	LXH4#..STD ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	07/1999 - 12/2999	1
82132 - WIRE, COWL, NO.2
82132-26091	LXH4#,RCH42	07/1999 - 12/2999	1
82132-26090	LXH4#,RCH42	06/1997 - 07/1999	1
82210C - FUSIBLE LINK
90982-08203	KCH4#,LXH4# 80A,ｵｽ端子,黒	04/1997 - 12/2999	1
90982-08282	KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤	04/1997 - 12/2999	1
90982-08190	KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄	04/1997 - 12/2999	1
90982-08246	LXH4#,RCH42 100A,ｵｽ端子,青	06/1997 - 12/2999	1
82210C - FUSIBLE LINK
90982-08203	KCH4#,LXH4# 80A,ｵｽ端子,黒	04/1997 - 12/2999	1
90982-08282	KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤	04/1997 - 12/2999	1
90982-08190	KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄	04/1997 - 12/2999	1
90982-08246	LXH4#,RCH42 100A,ｵｽ端子,青	06/1997 - 12/2999	1
82210C - FUSIBLE LINK
90982-08203	KCH4#,LXH4# 80A,ｵｽ端子,黒	04/1997 - 12/2999	1
90982-08282	KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤	04/1997 - 12/2999	1
90982-08190	KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄	04/1997 - 12/2999	1
90982-08246	LXH4#,RCH42 100A,ｵｽ端子,青	06/1997 - 12/2999	1
Common parts
90119-06171
90119-06390
90119-08063
90159-60025
90179-06080
90179-06239
90189-05055
91635-60616
93567-55016
Linked diagrams
8401

(9704-9907)

Click highlighted areas on diagram

ｶｳﾙﾜｲﾔ(PNC82131) ｽﾍﾟﾂｸﾘｽﾄ

Part #	Description	Period	Qty	Price

(9704-9907)

Click highlighted areas on diagram

PNC82133, PNC82183 ｽﾍﾟﾂｸﾘｽﾄ

Part #	Description	Period	Qty	Price

(9704-9907)

Click highlighted areas on diagram

ｶｳﾙﾜｲﾔ(PNC82131) ｽﾍﾟﾂｸﾘｽﾄ

Part #	Description	Period	Qty	Price

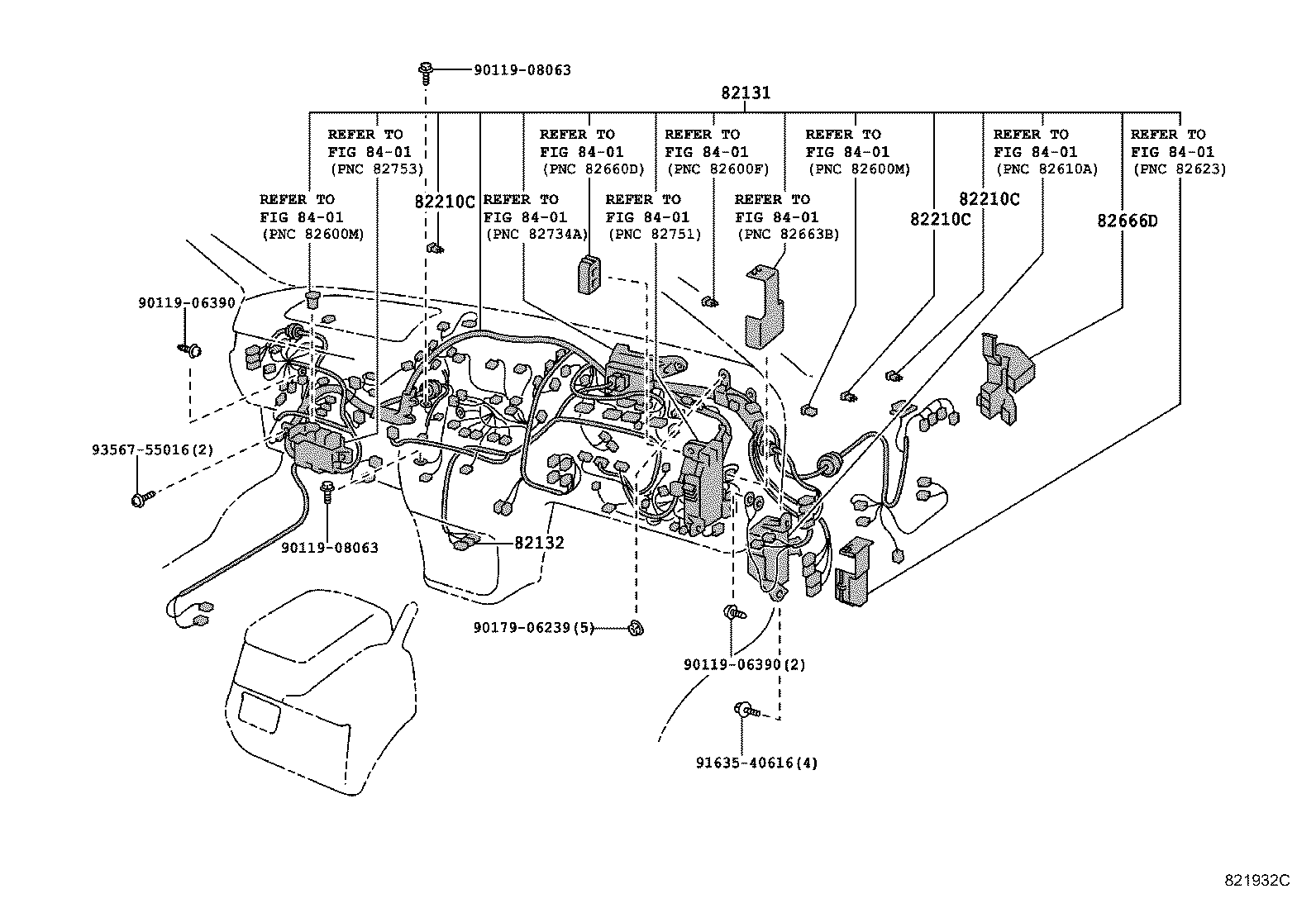

ILLUST NO. 2 OF 8(9907- )LXH4#,RCH42

Click highlighted areas on diagram

ｲﾝﾊﾟﾈ & ｶｳﾙﾜｲﾔ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-2F320	LXH4#..STD TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ	06/1997 - 04/1998	1
82131-2F330	LXH4#..STD TYPE X:ｲﾗｽﾄｻﾝｼﾖｳ	06/1997 - 04/1998	1
82131-2F480	LXH4#..STD TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ	06/1997 - 04/1998	1
82131-2F321	LXH4#..STD TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 07/1999	1
82131-2F481	LXH4#..STD TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 07/1999	1
82131-2F331	LXH4#..STD TYPE X:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 07/1999	1
82131-2F332	LXH4#..STD ｱﾘ(ABS)	07/1999 - 12/2999	1
82131-2F322	LXH4#..STD ｱﾘ(*80,ｳﾝﾃﾝｾｷ);ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(ﾋﾞﾙﾄｲﾝﾀｲﾌﾟﾘﾔﾋ-ﾀ)	07/1999 - 12/2999	1
82131-2F482	LXH4#..STD ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ)	07/1999 - 12/2999	1
82132 - WIRE, COWL, NO.2
82132-26091	LXH4#,RCH42	07/1999 - 12/2999	1
82132-26090	LXH4#,RCH42	06/1997 - 07/1999	1
82210C - FUSIBLE LINK
90982-08203	KCH4#,LXH4# 80A,ｵｽ端子,黒	04/1997 - 12/2999	1
90982-08282	KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤	04/1997 - 12/2999	1
90982-08190	KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄	04/1997 - 12/2999	1
90982-08246	LXH4#,RCH42 100A,ｵｽ端子,青	06/1997 - 12/2999	1
82210C - FUSIBLE LINK
90982-08203	KCH4#,LXH4# 80A,ｵｽ端子,黒	04/1997 - 12/2999	1
90982-08282	KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤	04/1997 - 12/2999	1
90982-08190	KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄	04/1997 - 12/2999	1
90982-08246	LXH4#,RCH42 100A,ｵｽ端子,青	06/1997 - 12/2999	1
82210C - FUSIBLE LINK
90982-08203	KCH4#,LXH4# 80A,ｵｽ端子,黒	04/1997 - 12/2999	1
90982-08282	KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤	04/1997 - 12/2999	1
90982-08190	KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄	04/1997 - 12/2999	1
90982-08246	LXH4#,RCH42 100A,ｵｽ端子,青	06/1997 - 12/2999	1
Common parts
90119-06390
90119-08063
90179-06239
91635-40616
93567-55016
Linked diagrams
8401
