LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#,RCH42

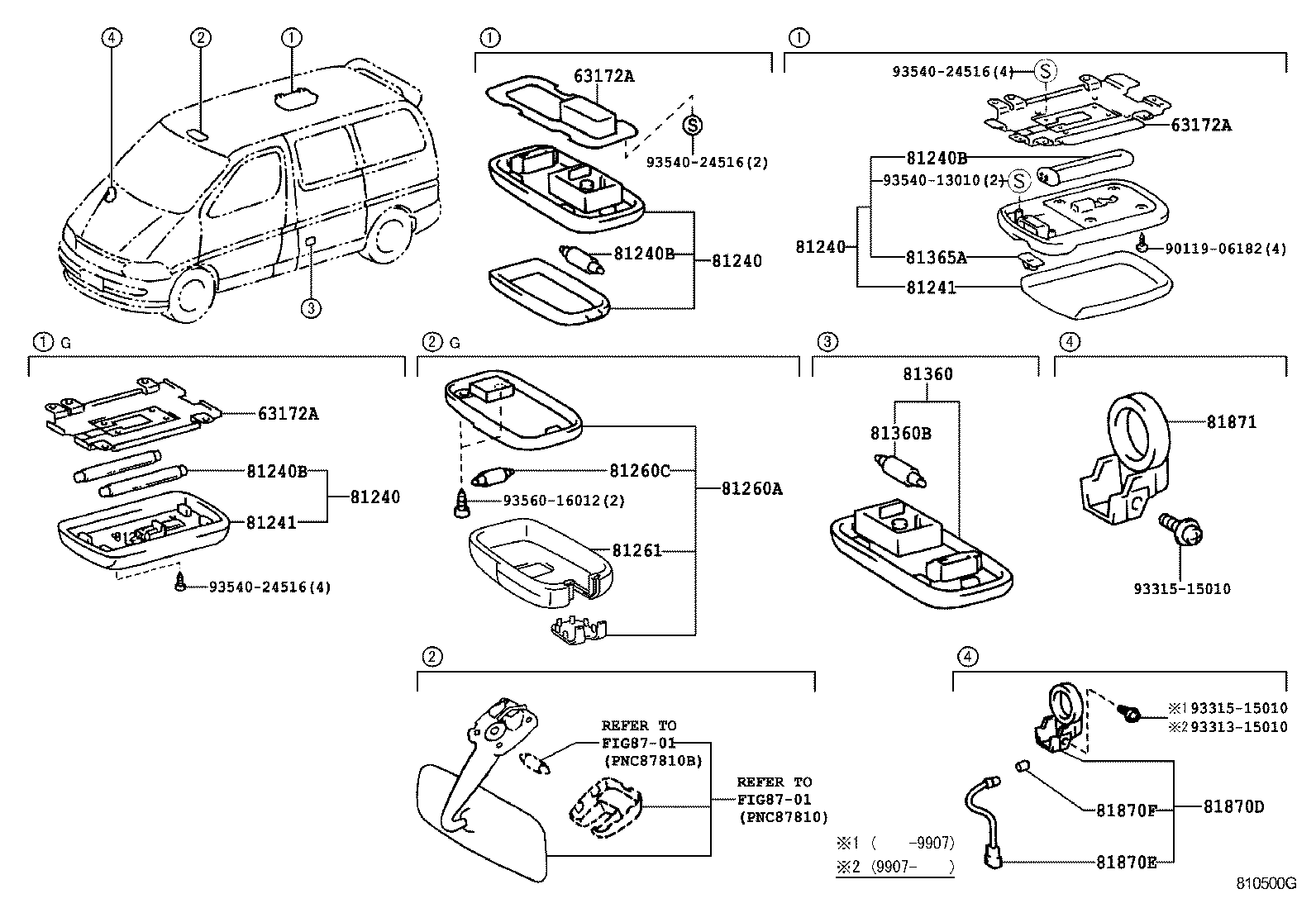

Click highlighted areas on diagram

diagram 63172A 63172A 63172A 81240 81240 81240 81240B 81240B 81240B 81241 81241 81260A 81260C 81261 81360 81360B 81365A 81870D 81870E 81870F 81871 8701 8701 9011906182 9331315010 9331515010 9331515010 9354013010 9354024516 9354024516 9354024516 9356016012
Part # Description Qty Price
63172A - BASE, ROOM LAMP
63172-26060

LXH4#,RCH42..STD

 1
63172A - BASE, ROOM LAMP
63172-26060

LXH4#,RCH42..STD

 1
63172A - BASE, ROOM LAMP
63172-26060

LXH4#,RCH42..STD

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12020B4

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12020B4

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12020B4

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

LXH4#,RCH42..STD

12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

LXH4#,RCH42..STD

12V 10W

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

LXH4#,RCH42..STD

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

LXH4#,RCH42..STD

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

LXH4#,RCH42..STD

 1
81871 - LENS, KEY ILLUMINATION
81871-95J00

KCH4#..E;LXH4#,RCH42..STD

 1
Common parts
90119-06182
93313-15010
93315-15010
93540-13010
93540-24516
93560-16012
Linked diagrams
8701
