LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#,RCH42

Click highlighted areas on diagram

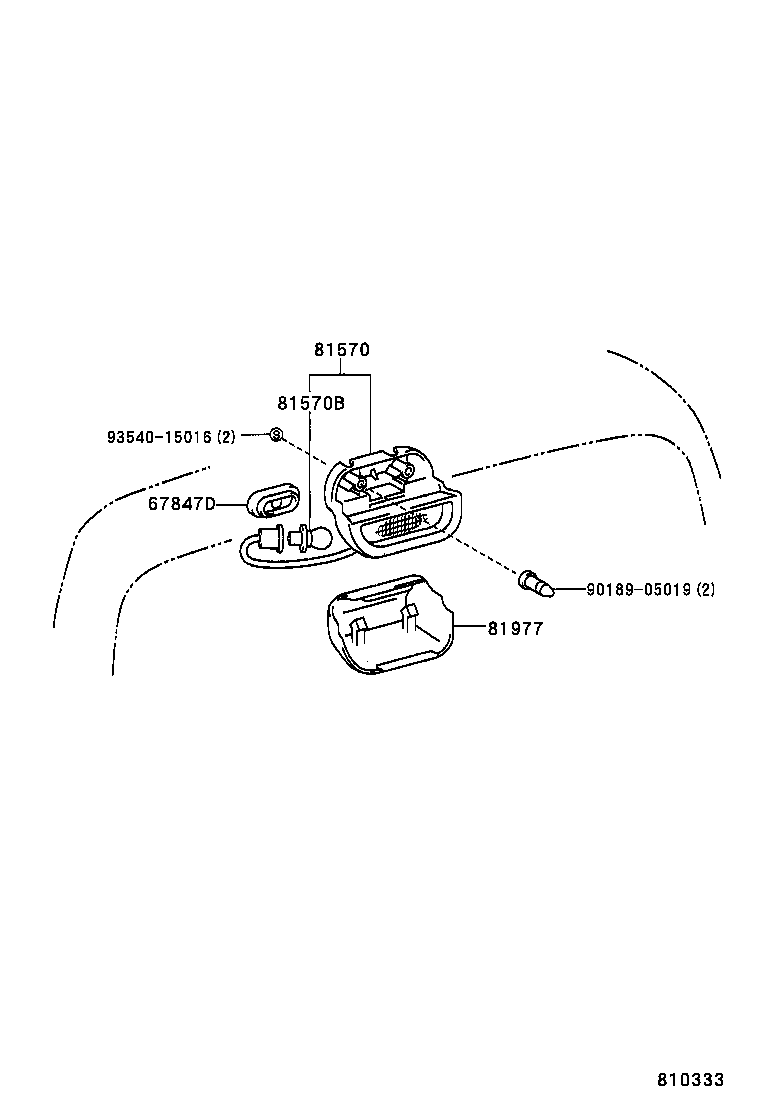

diagram 67847D 81570 81570B 81977 9018905019 9354015016
Part # Description Qty Price
67847D - COVER, BACK DOOR SERVICE HOLE
67847-26050

LXH4#,RCH42

 1
81570 - LAMP ASSY, CENTER STOP
81570-26080

LXH4#,RCH42

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11210

LXH4#,RCH42

12V 21W

 1
81977 - COVER, CENTER STOP LAMP
81977-26020

LXH4#,RCH42

 1
Common parts
90189-05019
93540-15016
