LXH49V-RRSDS (1997)
Toyota Regius/Touring Hiace
Production
Jun 1997
-
May 2002
Engine
5L
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

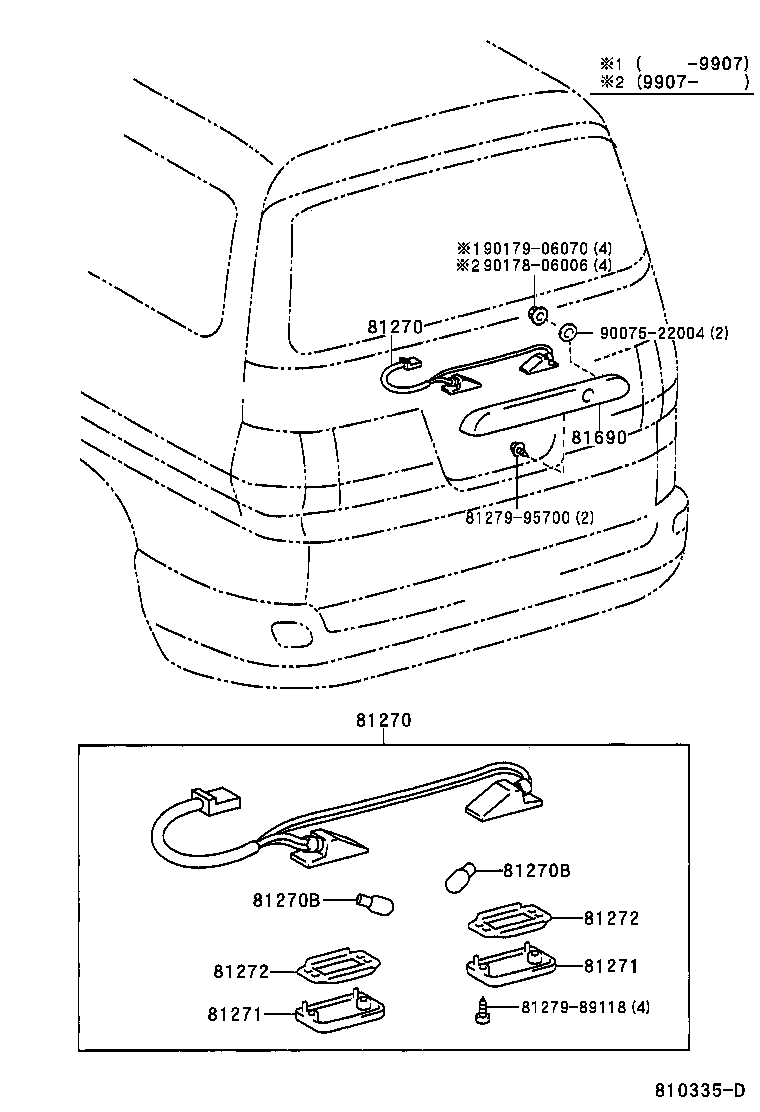

ILLUST NO. 1 OF 2(9706- )LXH4#,RCH42
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 81270-26070 |
LXH4#,RCH42 |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 81270-26070 |
LXH4#,RCH42 |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
KCH4#,LXH4#,RCH4# 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
KCH4#,LXH4#,RCH4# 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81271-95J07 |
LXH4#,RCH42 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81271-95J07 |
LXH4#,RCH42 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81272-95J07 |
LXH4#,RCH42 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-95J07 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 81272-95J07 |
LXH4#,RCH42 |
2 | ||
| 81690 - COVER SUB-ASSY, LICENSE PLATE LAMP | ||||
| 81207-26030 |
LXH4#,RCH42 |
1 | ||
| Common parts | ||||
| 81279-89118 | ||||
| 81279-95700 | ||||
| 90075-22004 | ||||
| 90178-06006 | ||||
| 90179-06070 | ||||
