LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#,RCH42

Click highlighted areas on diagram

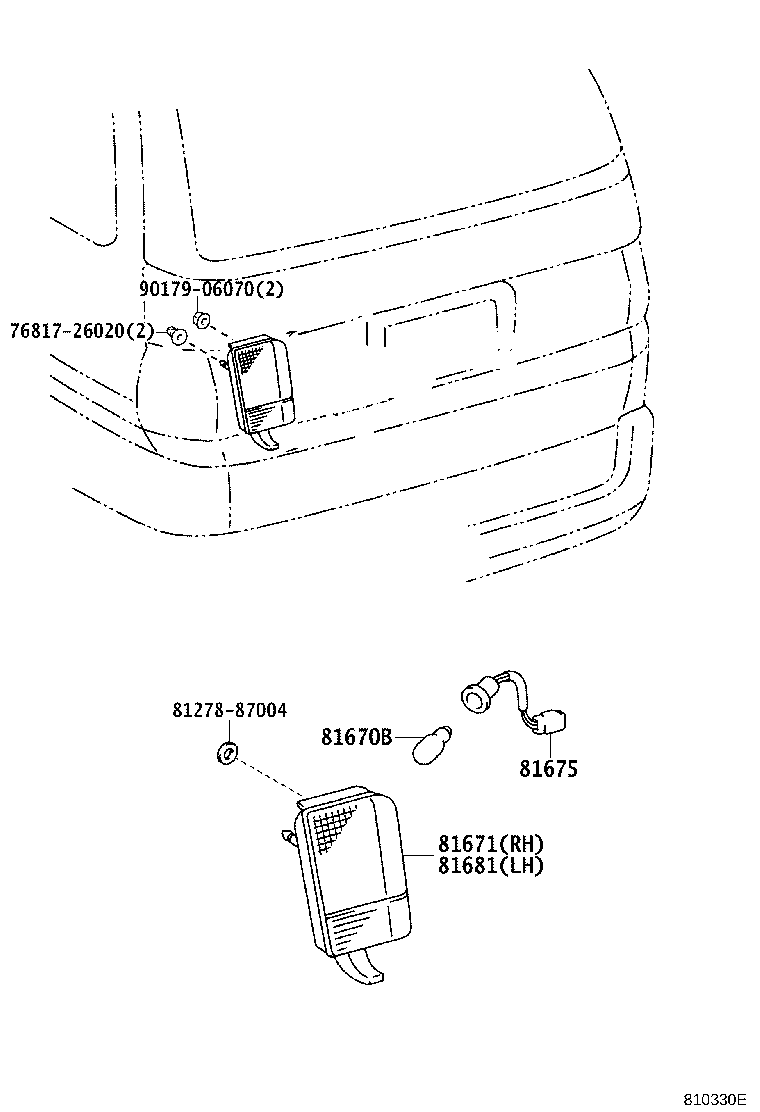

diagram 7681726020 8127887004 81670B 81671 81675 81681 9017906070
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
90981-13043

LXH4#,RCH42

12V 21W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-26020

LXH4#,RCH42

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81675-26020

LXH4#,RCH42

 2
81681 - LENS, BACK-UP LAMP, LH
81681-26010

LXH4#,RCH42

 1
Common parts
76817-26020
81278-87004
90179-06070
