LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#,RCH42

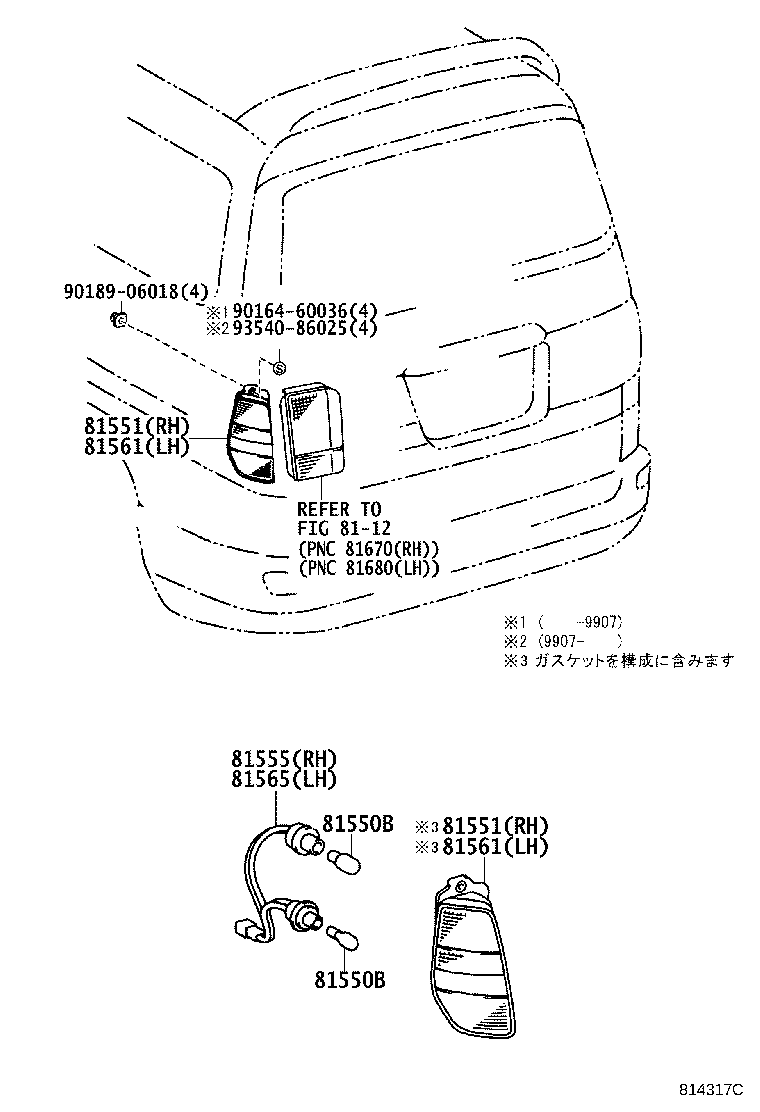

Click highlighted areas on diagram

diagram 8112 81550B 81550B 81551 81551 81555 81561 81561 81565 9016460036 9018906018 9354086025
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

KCH4#,LXH4#,RCH4#

12V 21W

 2
90981-13043

LXH4#,RCH42

12V 21W

 2
90981-13044

KCH4#,LXH4#,RCH4#

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043

KCH4#,LXH4#,RCH4#

12V 21W

 2
90981-13043

LXH4#,RCH42

12V 21W

 2
90981-13044

KCH4#,LXH4#,RCH4#

12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-26210

LXH4#,RCH42

 1
81551 - LENS, REAR COMBINATION LAMP, RH
81551-26210

LXH4#,RCH42

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-26220

KCH4#,LXH4#,RCH4#

 1
81555-26220

LXH4#,RCH42

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-26210

LXH4#,RCH42

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-26210

LXH4#,RCH42

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-26220

KCH4#,LXH4#,RCH4#

 1
81555-26220

LXH4#,RCH42

 1
Common parts
90164-60036
90189-06018
93540-86025
Linked diagrams
8112
