LXH49V-RRSDS (1997)
Toyota Regius/Touring Hiace
Production
Jun 1997
-
May 2002
Engine
5L
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9706- )LXH4#

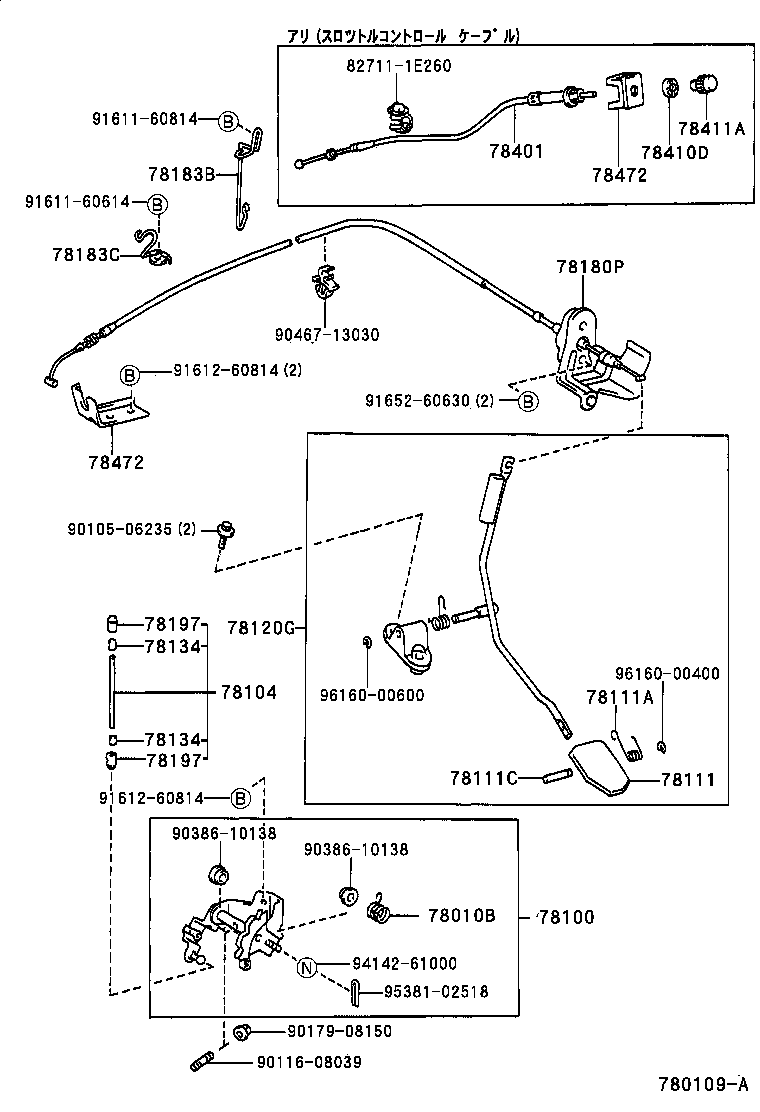

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-16114 |
LXH4# |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-26010 |
LXH4# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LXH4# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
LXH4#,RCH4#;KCH4#..G07S;KCH4#..E,STD,WINT |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-26070 |
LXH4#,RCH4#..ATM |
1 | ||
| 78120-26080 |
LXH4#..ATM ｱﾘ(ｽﾛﾂﾄﾙｺﾝﾄﾛ-ﾙｹ-ﾌﾞﾙ) |
1 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
LXH4# |
2 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
LXH4# |
2 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-26120 |
LXH4# |
1 | ||
| 78180-26160 |
LXH4# ｱﾘ(ｽﾛﾂﾄﾙｺﾝﾄﾛ-ﾙｹ-ﾌﾞﾙ) |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-26100 |
LXH4#,RCH42 |
1 | ||
| 78183C - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-26080 |
LXH4# |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
LXH4# |
2 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
LXH4# |
2 | ||
| 78401 - CABLE SUB-ASSY, THROTTLE CONTROL | ||||
| 78401-26020 |
LXH4# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
LXH4# |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-95J01 |
LXH4# |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-95700B0 |
LXH4# BLUISH GRAY,TRIM1# |
1 | ||
| 78472-26020 |
LXH4# |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-95700B0 |
LXH4# BLUISH GRAY,TRIM1# |
1 | ||
| 78472-26020 |
LXH4# |
1 | ||
| Common parts | ||||
| 82711-1E260 | ||||
| 90105-06235 | ||||
| 90116-08039 | ||||
| 90179-08150 | ||||
| 90386-10138 | ||||
| 90467-13030 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91612-60814 | ||||
| 91652-60630 | ||||
| 94142-61000 | ||||
| 95381-02518 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
