LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#

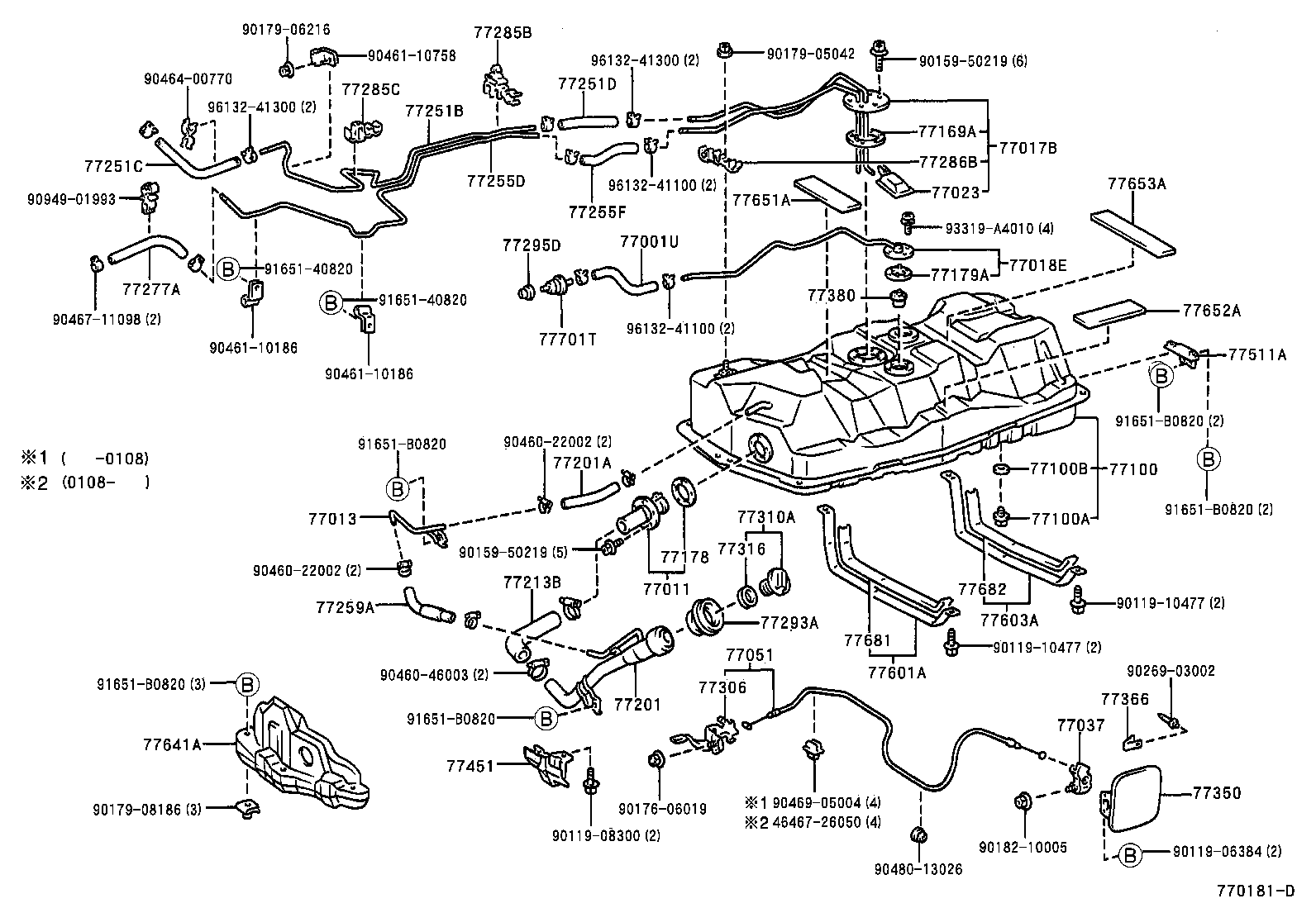

Click highlighted areas on diagram

diagram 4646726050 77001U 77011 77013 77017B 77018E 77023 77037 77051 77100 77100A 77100B 77169A 77178 77179A 77201 77201A 77213B 77251B 77251C 77251D 77255D 77255F 77259A 77277A 77285B 77285C 77286B 77293A 77295D 77306 77310A 77316 77350 77366 77380 77451 77511A 77601A 77603A 77641A 77651A 77652A 77653A 77681 77682 77701T 9011906384 9011908300 9011910477 9011910477 9015950219 9015950219 9017606019 9017905042 9017906216 9017908186 9018210005 9026903002 9046022002 9046022002 9046046003 9046110186 9046110186 9046110758 9046400770 9046711098 9046905004 9048013026 9094901993 9165140820 9165140820 91651B0820 91651B0820 91651B0820 91651B0820 91651B0820 93319A4010 9613241100 9613241100 9613241300 9613241300
Part # Description Qty Price
77001U - HOSE, FUEL
95333-06040

KCH4#,LXH4#

 1
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-26050

KCH4#,LXH4#,RCH4#

 1
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-26110

KCH4#,LXH4#,RCH4#

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-26190

LXH4#

 1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-26220

KCH4#,LXH4#,RCH4#

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32040

LXH4#

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D01

KCH4#,LXH4#,RCH4#

 1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77050-26032

KCH4#,LXH4#,RCH4#

 1
77050-26030

KCH4#,LXH4#,RCH4#

 1
77100 - TANK ASSY, FUEL
77001-26630

KCH4#,LXH4#,RCH4#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

KCH4#,LXH4#,RCH4#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

KCH4#,LXH4#,RCH4#

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-32010

KCH4#,LXH4#,RCH4#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

KCH4#,LXH4#,RCH4#

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

KCH4#,LXH4#,RCH4#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-26200

KCH4#,LXH4#,RCH4#

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
95313-13017

KCH4#,LXH4#,RCH4#

長さ=170

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-26100

KCH4#,LXH4#,RCH4#

 1
77251B - TUBE, FUEL MAIN
77251-26860

LXH4#

 1
77251-26770

LXH4#

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-26070

LXH4#

長さ=220

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-08020

LXH4#

*H,L=180,内径=7.6

 1
77255D - TUBE, FUEL RETURN
77255-26560

LXH4#

 1
77255-26480

LXH4#

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

KCH4#,LXH4#

*H,L=160

 1
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-26050

KCH4#,LXH4#,RCH4#

長さ=220

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-54040

LXH4#

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-26030

KCH4#,LXH4#,RCH4#

 1
77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN)
77285-26040

KCH4#,LXH4#,RCH4#

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77285-26020

KCH4#,LXH4#,RCH4#

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-26010

KCH4#,LXH4#,RCH4#

 1
77295D - GROMMET, FUEL TUBE
77295-27010

KCH4#,LXH4#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-26020

KCH4#,LXH4#,RCH4#

 1
77310A - CAP ASSY, FUEL TANK
77310-35110

KCH4#,LXH4#

 1
77310-12150

KCH4#,LXH4#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

KCH4#,LXH4#,RCH4#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-26020

KCH4#,LXH4#,RCH4#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-95J01

KCH4#,LXH4#,RCH4#

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

KCH4#,LXH4#,RCH4#

 1
77451 - PROTECTOR, FUEL INLET HOSE
77451-26030

KCH4#,LXH4#,RCH4#

 1
77511A - BRACKET, FUEL TANK
77511-26030

KCH4#,LXH4#,RCH4#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-26090

KCH4#,LXH4#,RCH4#

 1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-26060

KCH4#,LXH4#,RCH4#

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-26030

KCH4#,LXH4#,RCH4#

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-26070

KCH4#,LXH4#,RCH4#

 1
77652A - CUSHION, FUEL TANK, NO.2
77653-26040

KCH4#,LXH4#,RCH4#

 1
77653A - CUSHION, FUEL TANK, NO.3
77653-26040

KCH4#,LXH4#,RCH4#

 1
77681 - SEAT, FUEL TANK BAND, RH
77681-32060

KCH4#,LXH4#,RCH4#

 1
77682 - SEAT, FUEL TANK BAND, LH
77681-32060

KCH4#,LXH4#,RCH4#

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10082

KCH4#,LXH4#

 1
Common parts
46467-26050
90119-06384
90119-08300
90119-10477
90159-50219
90176-06019
90179-05042
90179-06216
90179-08186
90182-10005
90269-03002
90460-22002
90460-46003
90461-10186
90461-10758
90464-00770
90467-11098
90469-05004
90480-13026
90949-01993
91651-40820
91651-B0820
93319-A4010
96132-41100
96132-41300
