LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#,RCH42..STD

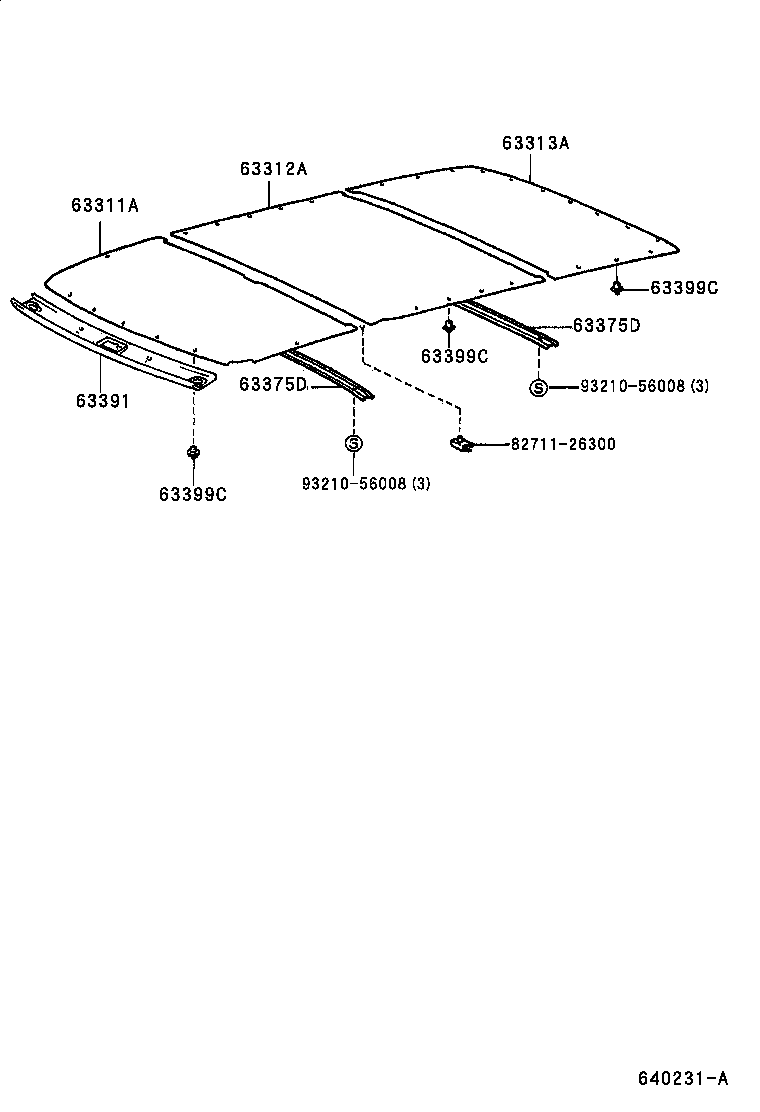

Click highlighted areas on diagram

diagram 63311A 63312A 63313A 63375D 63375D 63391 63399C 63399C 63399C 8271126300 9321056008 9321056008
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63311-26071B0

LXH4#..4D..STD

LT. GRAY,TRIM1#

 1
63311-26070B0

LXH4#..4D..STD

LT. GRAY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63312-26090B0

LXH4#..4D..STD

ｱﾘ(ﾊﾟﾂｾﾝｼﾞﾔ- ｼ-ﾄ=ﾏｴﾀﾞｵｼ ｷｺｳ & ｾﾊﾟﾚ-ﾀ ﾊﾞ-),LT. GRAY,TRIM1#

 1
63312-26091B0

LXH4#..4D..STD

ｱﾘ(ﾊﾟﾂｾﾝｼﾞﾔ- ｼ-ﾄ=ﾏｴﾀﾞｵｼ ｷｺｳ & ｾﾊﾟﾚ-ﾀ ﾊﾞ-),LT. GRAY,TRIM1#

 1
63312-26080B0

LXH4#..4D..STD

LT. GRAY,TRIM1#

 1
63312-26081B0

LXH4#..4D..STD

LT. GRAY,TRIM1#

 1
63313A - HEADLINING, ROOF, NO.3
63313-26061B0

LXH4#,RCH42..STD

LT. GRAY,TRIM1#

 1
63313-26060B0

LXH4#,RCH42..STD

LT. GRAY,TRIM1#

 1
63375D - MOULDING, ROOF HEADLINING
63375-26040B0

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 2
63375D - MOULDING, ROOF HEADLINING
63375-26040B0

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 2
63391 - TRIM, ROOF HEADLINING, FRONT
63391-26120B0

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
63399C - CLIP, ROOF HEADLINING
63399-26010B1

LXH4#..4D..STD

LT.GRAY,TRIM1#

 32
63399C - CLIP, ROOF HEADLINING
63399-26010B1

LXH4#..4D..STD

LT.GRAY,TRIM1#

 32
63399C - CLIP, ROOF HEADLINING
63399-26010B1

LXH4#..4D..STD

LT.GRAY,TRIM1#

 32
Common parts
82711-26300
93210-56008
