LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#,RCH42

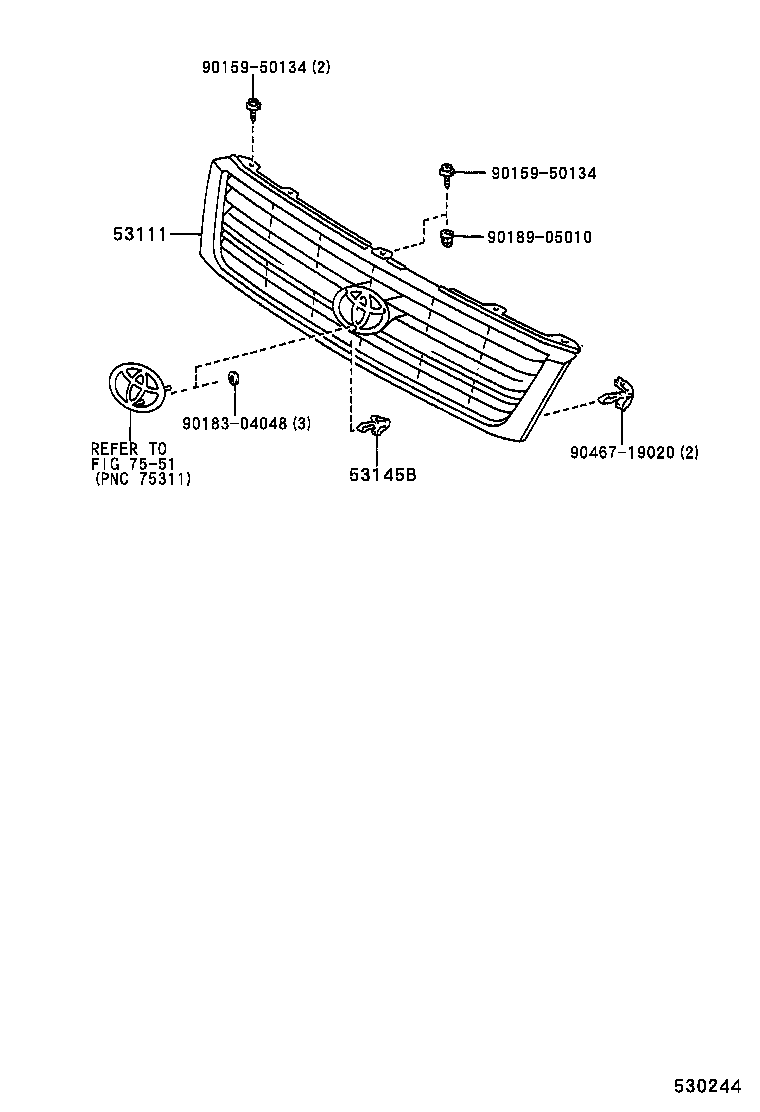

Click highlighted areas on diagram

diagram 53111 53145B 7551 9015950134 9015950134 9018304048 9018905010 9046719020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-26150

LXH4#,RCH42..STD

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-26010

KCH4#,LXH4#,RCH4#

 1
Common parts
90159-50134
90183-04048
90189-05010
90467-19020
Linked diagrams
7551
