LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH49

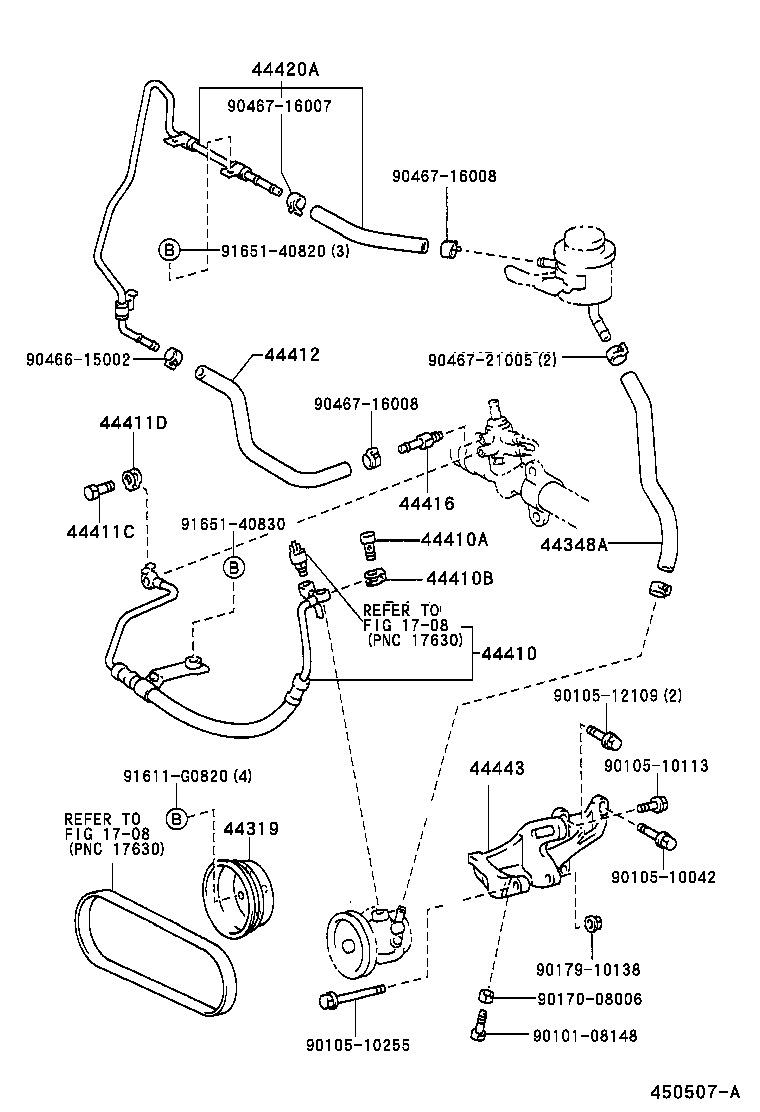

Click highlighted areas on diagram

diagram 1708 1708 44319 44348A 44410 44410A 44410B 44411C 44411D 44412 44416 44420A 44443 9010108148 9010510042 9010510113 9010510255 9010512109 9017008006 9017910138 9046615002 9046716007 9046716008 9046716008 9046721005 91611G0820 9165140820 9165140830
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-26040

LXH4#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26121

LXH4#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26570

LXH49..ATM

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16014

KCH4#,LXH4#,RCH4#

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
44327-26020

KCH4#,LXH4#,RCH4#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

KCH46,LXH49,RCH47

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

KCH46,LXH49,RCH47

 2
44412 - HOSE, RETURN
44412-26110

LXH49,RCH47

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26080

KCH4#,LXH4#,RCH4#

 1
44420A - TUBE ASSY, RETURN
44420-26040

LXH4#,RCH4#

 1
44443 - BRACKET, PUMP
44443-26071

LXH4#

 1
Common parts
90101-08148
90105-10042
90105-10113
90105-10255
90105-12109
90170-08006
90179-10138
90466-15002
90467-16007
90467-16008
90467-21005
91611-G0820
91651-40820
91651-40830
Linked diagrams
1708
